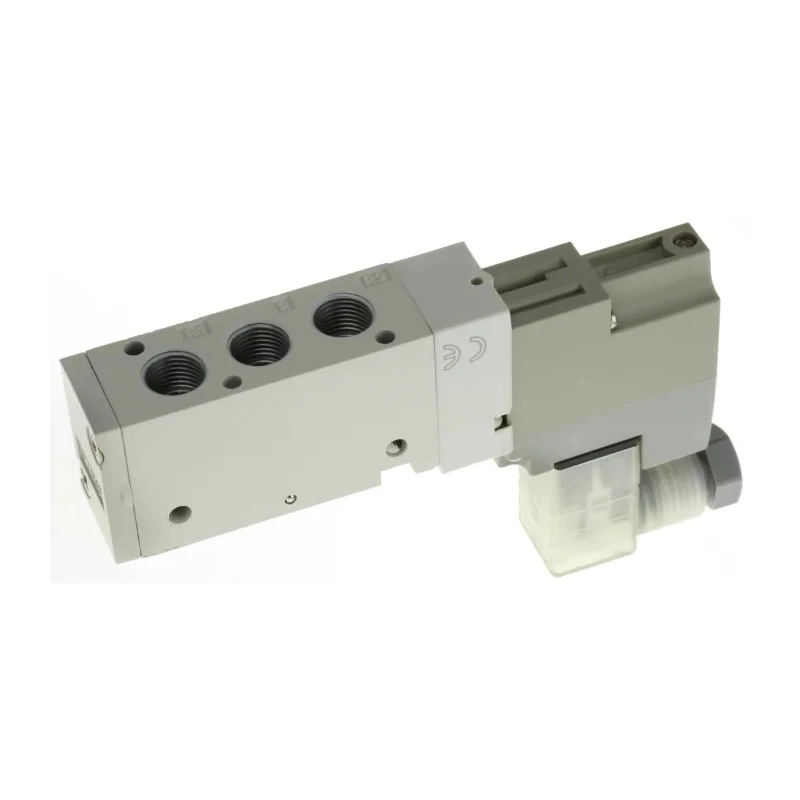

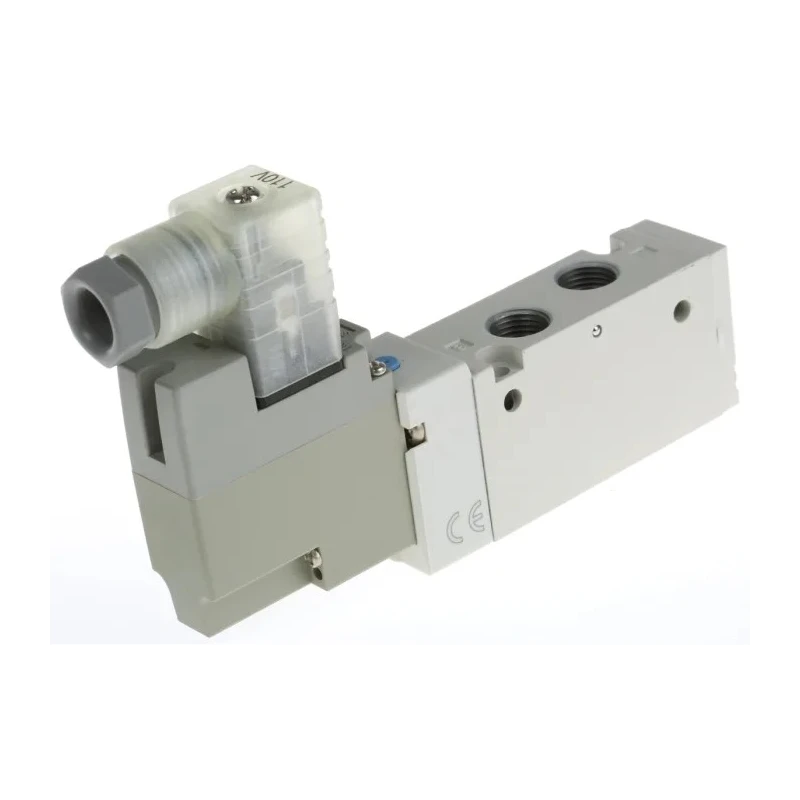

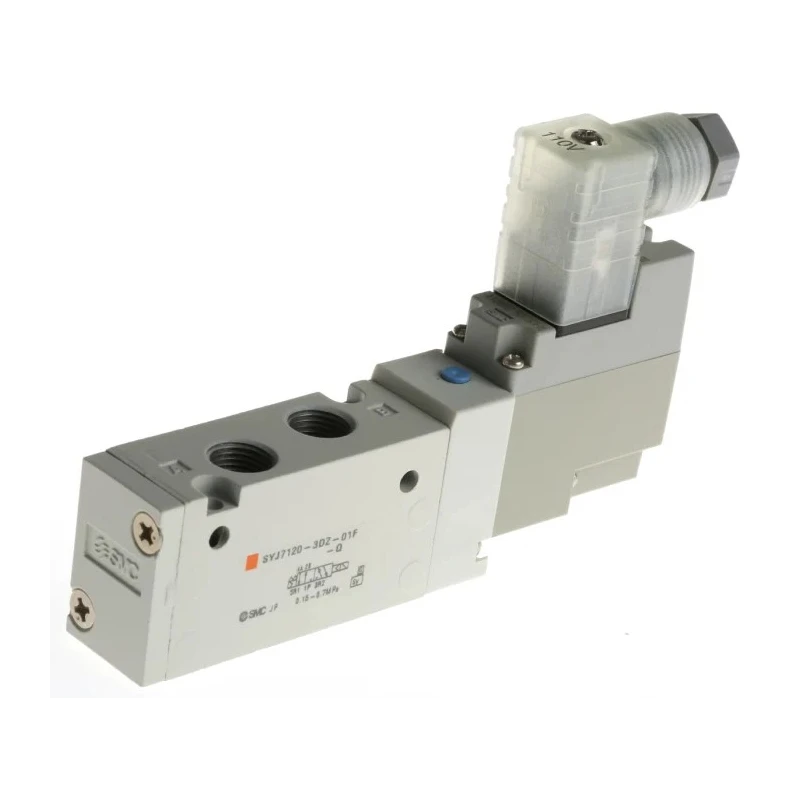

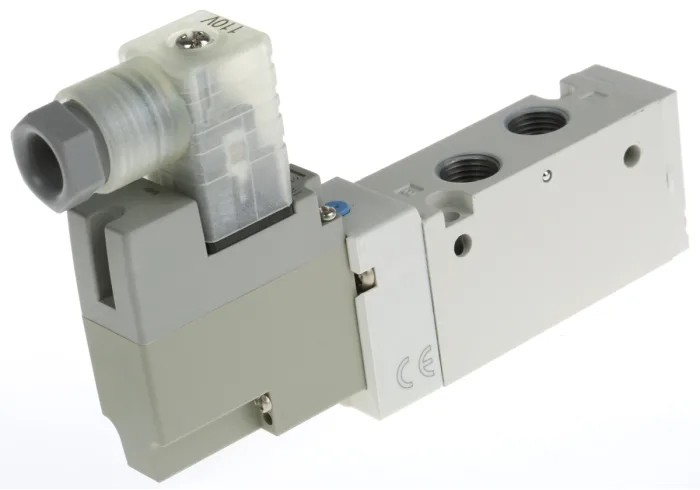

SMC Pneumatic Solenoid Valve 5/2 Solenoid/Spring G 1/8 Port Die Cast Aluminium 115V ac SYJ7120-3DZ-01F-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 5/2 Solenoid/Spring G 1/8 Port Die Cast Aluminium 115V ac SYJ7120-3DZ-01F-Q



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	India
Voltage	115V ac
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Model	SYJ7120-3DZ-01F-Q
Mount Type	Stand Alone
Series	SYJ
Number Of Ports	5
Maximum Operating Temperature	50°C
Port Type	Type R, R1, R2, Type A, Type B, Type P
Number of Positions	2
Port Size	1/8 in
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid/Spring
Maximum Flow Rate	626L/min
Standards/Approvals	RoHS
Connection Thread Standard	G 1/8
Minimum Pilot Pressure	0.15MPa
Valve Function	5/2
Solenoid Type	Single
Pneumatic, valve, 5/2, 1/8in BSP, solenoid/spring, 110VacBrand	SMC
SMC Pneumatic Solenoid Valve - Pilot Metric SYJ5000 SeriesBrand	SMC

Key Features

Featuring a die cast aluminium body for durability and lightweight design.
Operates efficiently at maximum pressure of 0.7 MPa with maximum flow rate of 626 L/min.
Equipped with a single solenoid and spring actuation for precise control.
Stand-alone mount type suitable for various industrial installations.
Operating temperature range from -10°C to 50°C for versatile applications.
Certified RoHS compliant ensuring environmental safety.
Seal material uses rubber for effective sealing under working conditions.
Designed with 5 ports and 2 valve positions for flexible pneumatic control.

Product Description

SMC SYJ7120-3DZ-01F-Q is a pneumatic solenoid valve from the SYJ series designed for effective fluid power control. It operates with a 5/2 valve function utilizing solenoid and spring actuation, featuring a G 1/8 connection thread standard. This valve is constructed with a die cast aluminium body providing durability while maintaining a compact and lightweight form factor. Operating voltage is 115V AC with low power consumption optimized to reduce engineering costs.

The valve supports a maximum operating pressure of 0.7 MPa and a maximum flow rate of 626 L/min, facilitating rapid pneumatic response. It features five ports and two operating positions to accommodate various pneumatic circuit requirements. Its operating temperature ranges from -10°C to 50°C, allowing reliable performance in diverse environments.

The SYJ series incorporates a rubber seal material to ensure effective sealing and durability. This model has a single solenoid for actuation and is designed for stand-alone mounting, making it versatile for industrial, manufacturing, HVAC, and automation settings. It complies with RoHS standards, contributing to environmentally conscious installations.

The valve’s design also includes a pilot exhaust and copper-free internal construction, enhancing reliability and maintenance ease. Space-efficient and engineered for direct PLC operation with a non-locking manual override, this valve is suitable for applications requiring precise pneumatic control.

Durable die cast aluminium body and rubber seals for longevity. Low power consumption to optimize energy usage. Compact design with a stand-alone mount type for flexible installation. Complies with RoHS environmental standards.

Ideal for industrial automation, fluid control, and manufacturing environments.

This product is part of EnvMart’s Industrial Supplies under Pneumatic Solenoid Valves category, offering reliable and efficient pneumatic control solutions for demanding industrial applications.
