Telegartner DIN 41612 Connector 20-Way 2 Row Straight Female J00041A0917

Free Delivery in India | Lowest Global Shipping Charges

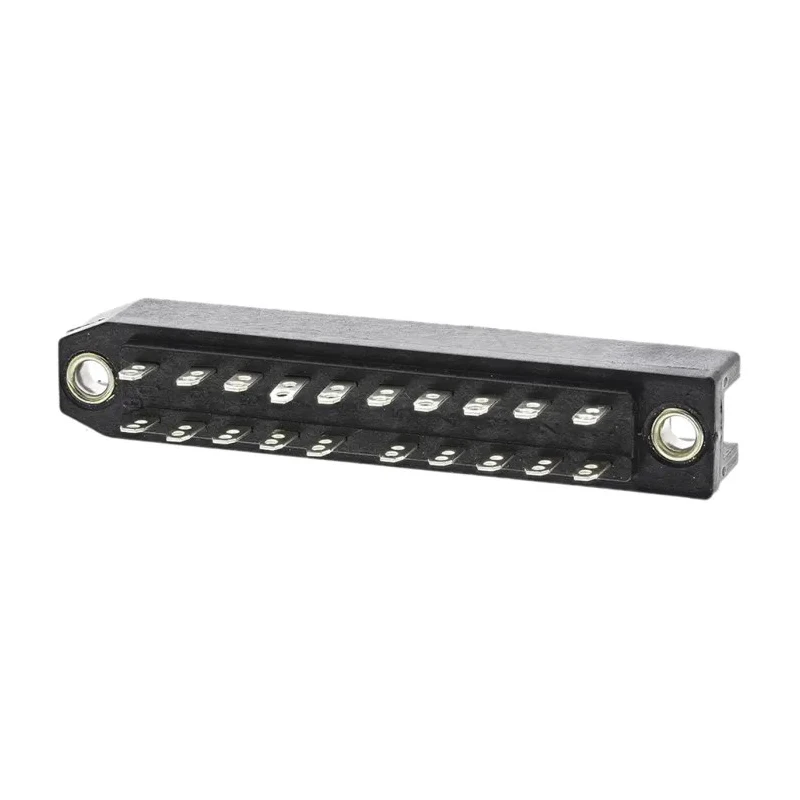

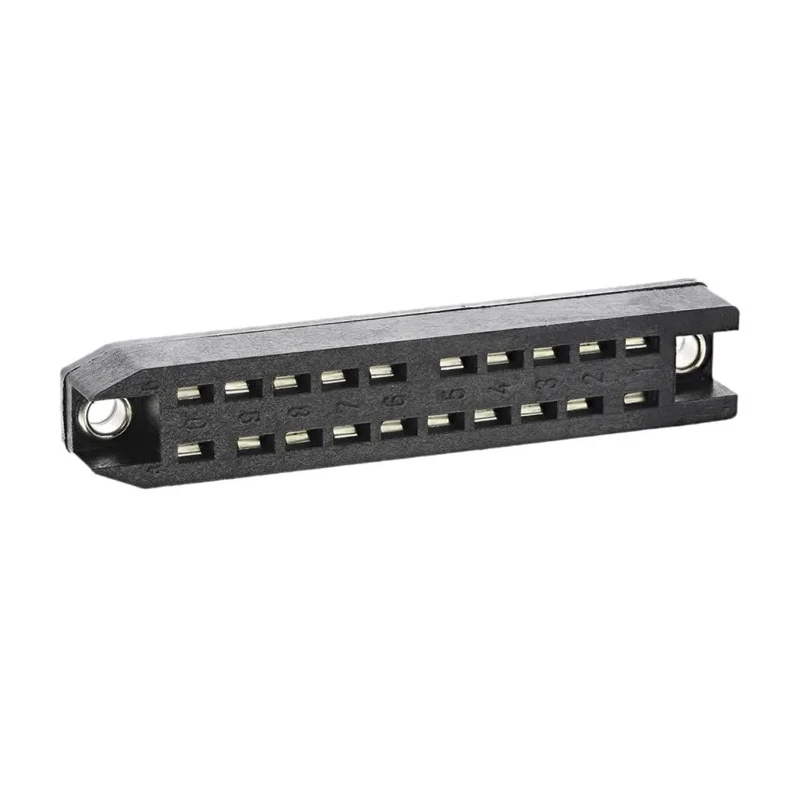

Telegartner DIN 41612 Connector 20-Way 2 Row Straight Female J00041A0917

Name: Telegartner DIN 41612 Connector 20-Way 2 Row Straight Female J00041A0917
Brand: Telegartner
SKU: 182041
Price: 32.41 USD
Availability: InStock



Category DIN 41612 Connector Brand Telegartner Condition New

Specifications

Country of Origin	India
Voltage	380, 450V ac
Brand	Telegartner
Orientation	Straight
Current	8A
Model	J00041A0917
Mount Type	Cable
Housing Material	Polycarbonate
Series	J000
Termination Type	Solder
Minimum Operating Temperature	60°C
Number of Rows	2
Contact Plating	Silver
Number of Contacts	20
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	5mΩ

Key Features

Features 20 contacts distributed over 2 rows for reliable connectivity.
The connector gender is female with a straight orientation for cable mounting.
Constructed with polycarbonate housing for durability and silver-plated contacts for conductivity.
Rated for currents up to 8A and voltages of 380 and 450V AC.
Termination is designed for soldering to ensure secure electrical connections.
Maximum contact resistance is 5 milliohms, ensuring low power loss.
Can operate within temperature ranges from -60°C to 60°C, suitable for various industrial environments.
Part of the J000 series connectors, providing interchangeability and standard compliance.

Product Description

Telegartner J00041A0917 DIN 41612 Connector, a 20-way, 2-row female straight connector, is engineered to meet demanding electronic and industrial applications requiring reliable backplane and rack connections. The connector's housing is made from polycarbonate, offering excellent mechanical strength and resistance against environmental factors.

The contacts are silver-plated, guaranteeing superior electrical conductivity and corrosion resistance. This connector supports current loads up to 8A and is rated for AC voltages of 380V and 450V, making it suitable for a broad range of power and signal distribution uses.

Designed with solder termination type, it provides secure and stable electrical contact to cables. Operating temperature ranges from -60°C to 60°C ensure performance under extreme thermal conditions, making it ideal for industrial, electronic, manufacturing, and automation systems.

The compact 20-way configuration spread over two rows enables efficient space utilization in high-density applications. The straight orientation and cable mounting type facilitate easy installation and integration into complex systems.

Features 20 contacts in 2 rows for flexible connectivity. Female contact gender with straight orientation for cable mounting. Durable polycarbonate housing and silver-plated contacts. Rated voltage: 380 and 450V AC, current: 8A.

Solder termination for robust electrical connection. Operates from -60°C to 60°C, suitable for harsh environments. Maximum contact resistance of 5 mΩ ensures efficient signal transmission. Part of J000 series offering compatibility within the range.

This DIN 41612 Connector finds applications in industrial automation, control systems, communication equipment, and electronics manufacturing. Its reliable construction and standardized design ensure long service life and compatibility across multiple device platforms.
