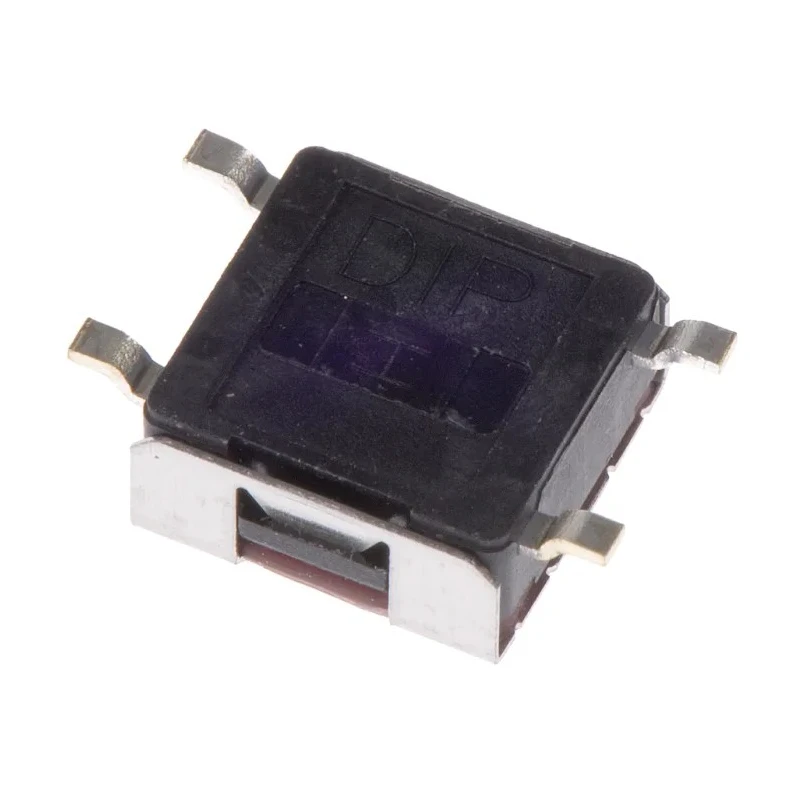

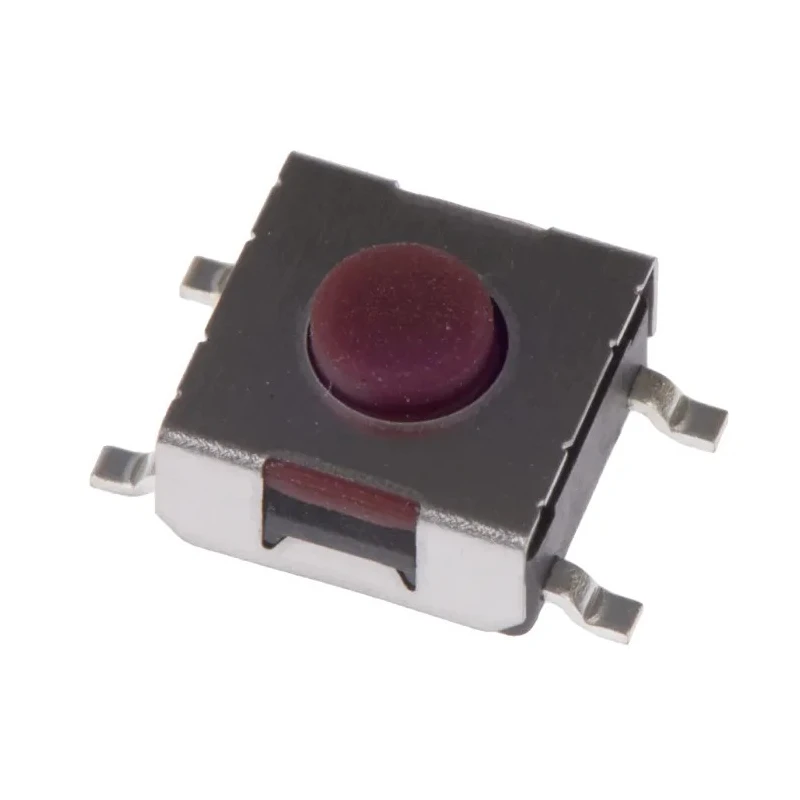

APEM Brown Tactile Switch Button 9 mm SPST-NO 50mA 12 V dc Surface Mount DTSMW69NV
Specifications
| Country of Origin | India |
|---|---|
| Brand | APEM |
| Height | 3.8mm |
| Length | 6.2mm |
| Model | DTSMW69NV |
| Width | 6.3mm |
| Mount Type | Surface |
| Series | DTS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST-NO |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -25°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Brown |
| Actuator Length | 9mm |
| Contact DC Voltage | 12V dc |
| Actuator Style | Button |
| Actuator Orientation | Top |
| Switch Contact Current | 50mA |
| Operating Force | 1.56N |
| Mechanical Life | 500000Cycles |
| APEM Red Tactile Switch Button, 9 mm, SPST-NO 50mA 12 V dc, SurfaceBrand | APEM |
| Brown Tact Switch, SPST 50 mA @ 12 V acBrand | Alps Alpine |
Key Features
- This tactile switch features a brown actuator button with 9 mm length.
- It uses a single pole single throw normally open (SPST-NO) contact configuration for precise control.
- The switch operates at a contact current of 50mA and contact DC voltage of 12 V dc.
- The actuator orientation is top-mounted with an operating force of 1.56N.
- Its compact dimensions are 6.2 mm length, 6.3 mm width, and 3.8 mm height.
- Designed for surface mounting, it offers a mechanical life of 500,000 cycles for durability.
- This switch operates reliably in temperatures from -25°C to 70°C.
- It complies with RoHS standards, ensuring environmental safety.
Product Description
APEM DTSMW69NV is a high-quality brown tactile switch featuring a 9 mm button actuator, designed for surface mounting applications. It offers precise momentary operation with a single pole single throw normally open (SPST-NO) contact arrangement, making it suitable for a variety of industrial and electronic control systems.
This tactile switch supports a contact current of 50mA and can handle a contact DC voltage of 12 V dc, ensuring safe low-power switching tasks with excellent reliability. The actuator has a top orientation and requires an operating force of 1.56N, providing tactile feedback for user interfaces.
With compact dimensions of 6.2 mm length, 6.3 mm width, and 3.8 mm height, it integrates seamlessly into densely populated PCB layouts. The switch is engineered to endure up to 500,000 mechanical cycles, ensuring long operational life in industrial controls, home appliances, and embedded electronics.
Operating temperature ranges from -25°C to 70°C, making it suitable for use in varied environmental conditions encountered in industrial, laboratory, or commercial electrical control panels. The product meets RoHS environmental standards, guaranteeing compliance with hazardous substances regulations.
Brown actuator signifying operating force for easy differentiation. Surface mount terminal style for ease of PCB assembly. Compact and durable design for extended mechanical life. Makes excellent tactile feedback switches in control panels and instrumentation.
Ideal for use in industrial automation, consumer electronics, and instrumentation applications. The switch is part of the DTS series, known for reliable tactile switch performance. Supplied as individual units to facilitate replacement or repair tasks.
Explore more Tactile Switch options and industrial electrical components on EnvMart to suit your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This tactile switch features a single pole single throw normally open (SPST-NO) contact configuration, allowing for precise control in applications.
The maximum operating temperature for this model is 70°C, making it suitable for various environmental conditions.
The actuator length of the DTSMW69NV is 9 mm, designed for tactile feedback during operation.
This switch has a mechanical life of 500,000 cycles, ensuring long operational life for various applications.
The contact current rating for this switch is 50mA, suitable for low-power switching tasks.
The dimensions of the switch are 6.2 mm in length, 6.3 mm in width, and 3.8 mm in height, allowing for compact integration into PCB layouts.
This model supports surface mounting, which facilitates easy installation on printed circuit boards (PCBs).
The operating force required for this switch is 1.56N, providing tactile feedback during operation.
The minimum operating temperature for this model is -25°C, allowing it to function in colder environments.
This tactile switch complies with RoHS standards, ensuring it meets environmental safety regulations regarding hazardous substances.
This model features momentary switch operation, which means it only remains engaged while being pressed.
The actuator orientation of the DTSMW69NV is top-mounted, which is typical for tactile switches to provide easy access.
