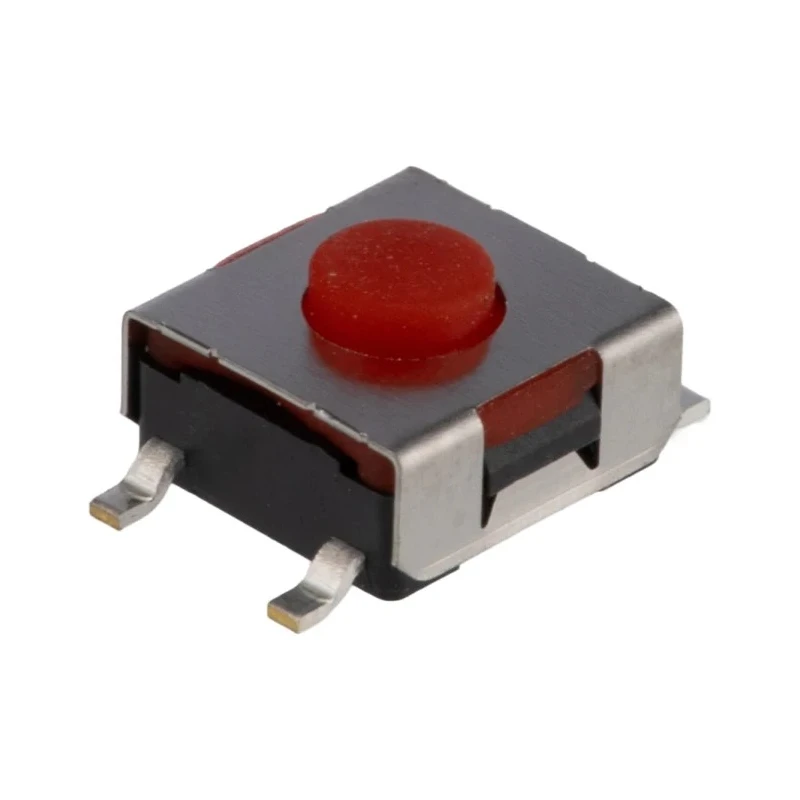

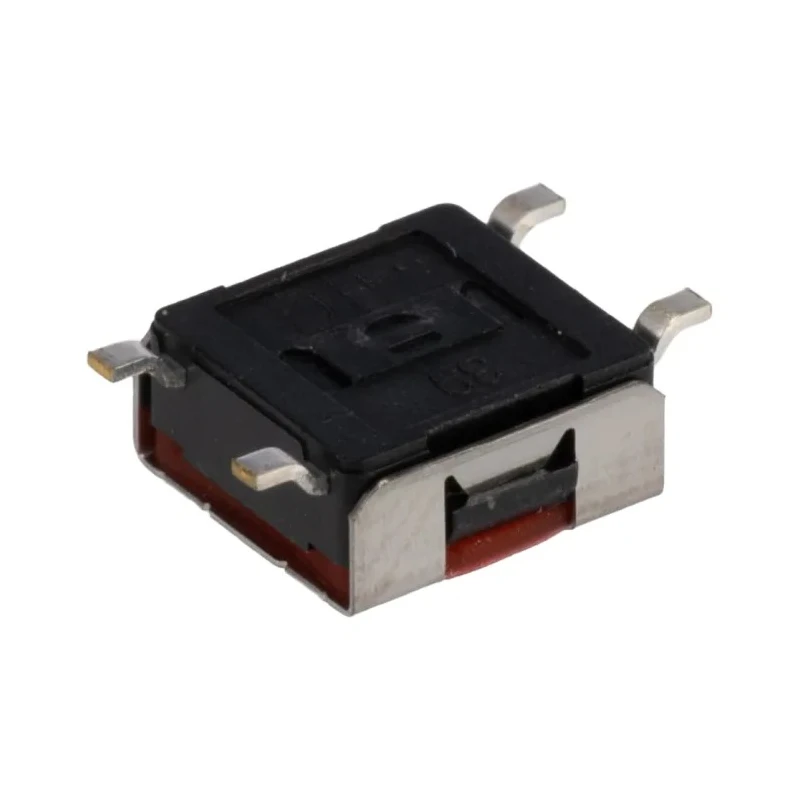

APEM Red Tactile Switch Button 9 mm SPST-NO 50mA 12 V dc Surface Mount DTSMW69RV
Specifications
| Country of Origin | China |
|---|---|
| Brand | APEM |
| Height | 3.8mm |
| Length | 6.2mm |
| Model | DTSMW69RV |
| Width | 6.3mm |
| Mount Type | Surface |
| Series | DTS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST-NO |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -25°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Actuator Length | 9mm |
| Contact DC Voltage | 12V dc |
| Actuator Style | Button |
| Actuator Orientation | Top |
| Switch Contact Current | 50mA |
| Operating Force | 1.77N |
| Mechanical Life | 500000Cycles |
| APEM Brown Tactile Switch Button, 9 mm, SPST-NO 50mA 12 V dc, SurfaceBrand | APEM |
Key Features
- The actuator is red colored, button style, and oriented on top for easy actuation.
- Designed for surface mounting with compact dimensions of 6.2 mm length, 6.3 mm width, and 3.8 mm height.
- Operates reliably between -25°C and 70°C temperature range, suitable for various environments.
- Features a switch configuration of (On)-Off with a contact DC voltage of 12 V dc and contact current of 50mA.
- Constructed with RoHS compliance, ensuring environmentally safe manufacturing standards.
- Ideal for use in electrical, automation, and keyboard/keypad switch applications requiring tactile feedback.
- Manufactured in China as part of the DTS series tactile switches.
Product Description
APEM DTSMW69RV Red Tactile Switch Button 9 mm Surface Mount is a high-quality momentary tactile switch offering precise control and durability for electrical and automation applications. The switch features a red actuator button with a 9 mm length enabling tactile feedback with an operating force of 1.77 N and a lifespan of 500,000 mechanical cycles.
Its SPST-NO (single pole single throw - normally open) contact configuration supports a contact current up to 50 mA at 12 V dc, making it suitable for low-power signal switching. The switch has compact dimensions (6.2 mm length x 6.3 mm width x 3.8 mm height) and is designed for reliable surface mounting.
Built to operate in harsh environments, it withstands temperatures from -25°C to +70°C. The switch is RoHS compliant, ensuring meeting environmental safety requirements. It is widely used in touchscreen panels, industrial automation systems, and keyboard/keypad devices where tactile feedback and reliability are critical.
The actuator is red colored for easy identification of operating force. Momentary switch operation ideal for push-button control. Compact and robust design suitable for surface mount PCB integration. Ensures a long mechanical life with consistent tactile feedback.
Supports contact DC voltage of 12 V and a contact current of 50 mA. Complies with RoHS standards for environmental safety. Manufactured in China under the DTS series by APEM.
This tactile switch is part of EnvMart's Electronics & Electricals category, providing a reliable solution for engineers and industry professionals. Explore more Tactile Switches and complementary electrical components within our comprehensive catalogs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates reliably between -25°C and 70°C, making it suitable for various environments.
The switch features an SPST-NO (single pole single throw - normally open) contact configuration.
This model supports a contact current of up to 50 mA.
The tactile switch has compact dimensions of 6.2 mm in length, 6.3 mm in width, and 3.8 mm in height.
It features a button-style actuator that is red in color, allowing for easy identification.
The switch has a mechanical life of 500,000 cycles, ensuring longevity in operation.
The operating force required is 1.77 N.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is designed for surface mounting, making it suitable for PCB integration.
It is ideal for use in electrical, automation, and keyboard/keypad switch applications requiring tactile feedback.
The contact DC voltage rating is 12 V dc.
This model belongs to the DTS series of tactile switches by APEM.
