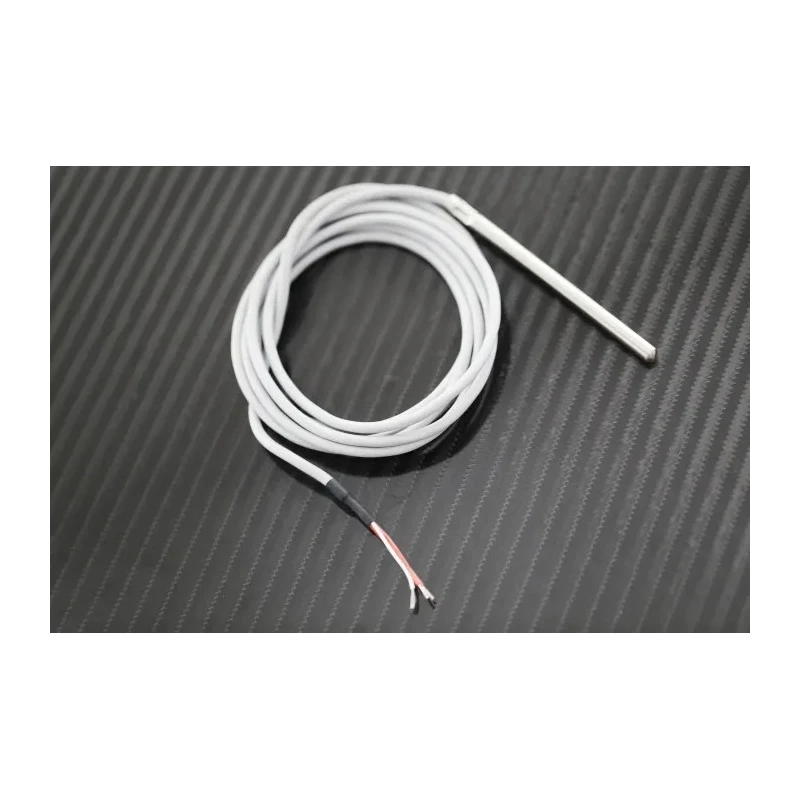

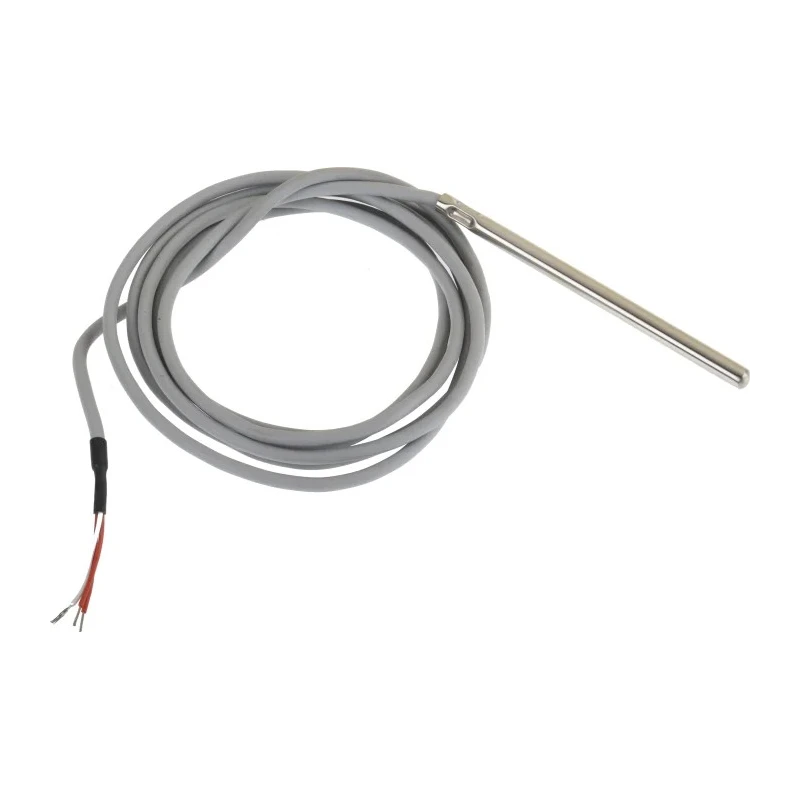

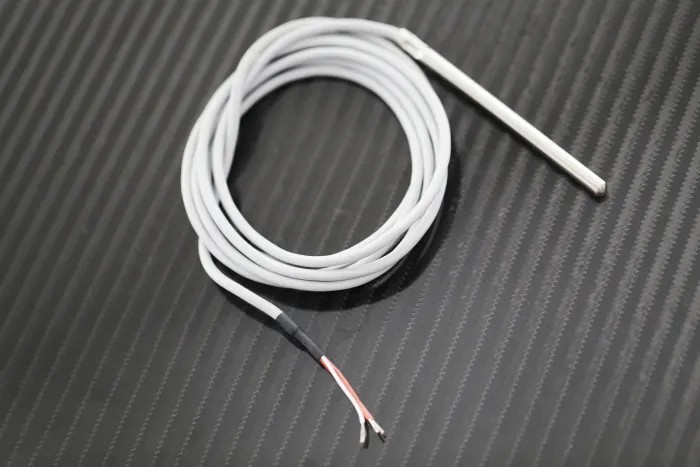

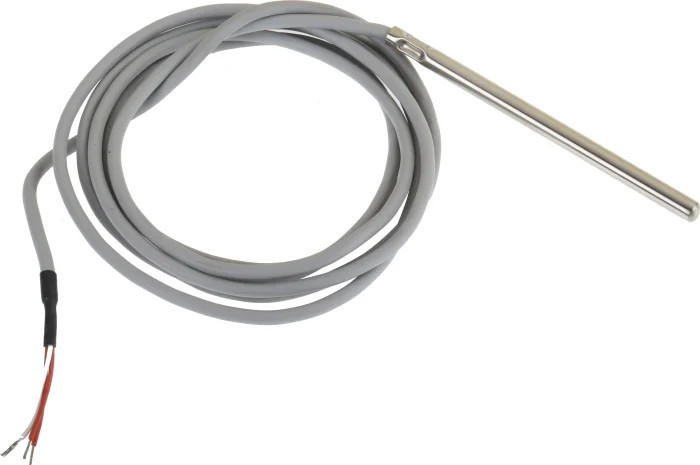

RS PRO PT100 RTD Sensor 6 mm Diameter, 100 mm Length, 3 Wire, Class A Accuracy, Stainless Steel Probe 200°C Max PT100

Free Delivery in India | Lowest Global Shipping Charges

RS PRO PT100 RTD Sensor 6 mm Diameter, 100 mm Length, 3 Wire, Class A Accuracy, Stainless Steel Probe 200°C Max PT100

Name: RS PRO PT100 RTD Sensor 6 mm Diameter, 100 mm Length, 3 Wire, Class A Accuracy, Stainless Steel Probe 200°C Max PT100
Brand: RS PRO
SKU: 181718
Price: 53.81 USD
Availability: InStock



Category RTD Sensor Brand RS PRO Condition New

Specifications

Country of Origin	France
Accuracy	Class A
Brand	RS PRO
Model	PT100
Probe Material	Stainless Steel
Cable Length	2m
Sensor Type	PT100
Probe length	100mm
Probe Diameter	6mm
Termination Type	Cable
Maximum Temperature Sensed	200°C
Minimum Temperature Sensed	-50°C
Number of Wires	3
Correge PT100 RTD Sensor 6 mm Dia, 100 mm Long, 2 Wire, Class A 200 °C maxBrand	Correge
Carel PT100 RTD Sensor 6 mm Dia, 100 mm Long, ±0.8°C 250 °C maxBrand	Carel

Key Features

The sensor has a 6 mm stainless steel probe diameter with 100 mm probe length.
It is terminated with a 2-meter silicone rubber insulated cable for flexibility and durability.
Operates accurately in the temperature range from -50°C to 200°C.
Class A accuracy ensures reliable measurement for demanding applications.
The 3 wire design minimizes measurement errors in resistance.
The probe's stainless steel sheath provides corrosion resistance and robustness.
Suitable for industrial and laboratory temperature sensing applications.
Silicone insulation resists oils, solvents, and weather exposure.

Product Description

RS PRO PT100 RTD Sensor PT100 model features a high-precision Class A Platinum Resistance Thermometer probe with a 6 mm diameter stainless steel sheath and a 100 mm length. The sensor reliably measures temperatures from -50°C to 200°C, making it suitable for various industrial and laboratory applications.

The 3 wire connection reduces wiring resistance errors, increasing measurement accuracy. The probe is encased in corrosion-resistant 304 stainless steel for durability in harsh environments, and the cable is insulated with flexible silicone rubber, offering resistance to oils, solvents, and weather conditions.

This robust RTD sensor probe is designed to withstand challenging process environments while providing precise temperature readings. Common industrial uses include air conditioning, refrigeration, chemical processing, plastics manufacturing, food processing, and laboratory temperature monitoring.

The sensor's reliable performance meets IEC 60751 Class A accuracy standards, ensuring consistency and repeatability in temperature measurement. Its sensing element is housed within a protective metal sheath, preventing damage during insertion and use.

The probe has a stainless steel construction with 6 mm diameter and 100 mm length. Flexible 2-meter cable with silicone insulation for operational longevity. Temperature sensing range from -50°C to 200°C with high accuracy.

3 wire design for precise resistance temperature detection. Corrosion-resistant sheath suitable for industrial conditions. Class A IEC 60751 accuracy certification for dependable use. Suitable for HVAC, chemical, plastics, food processing, and laboratory sectors.

Manufactured in France to ensure quality and reliability. Explore more RTD Sensors and temperature sensing solutions available at EnvMart for industrial automation and control applications.
