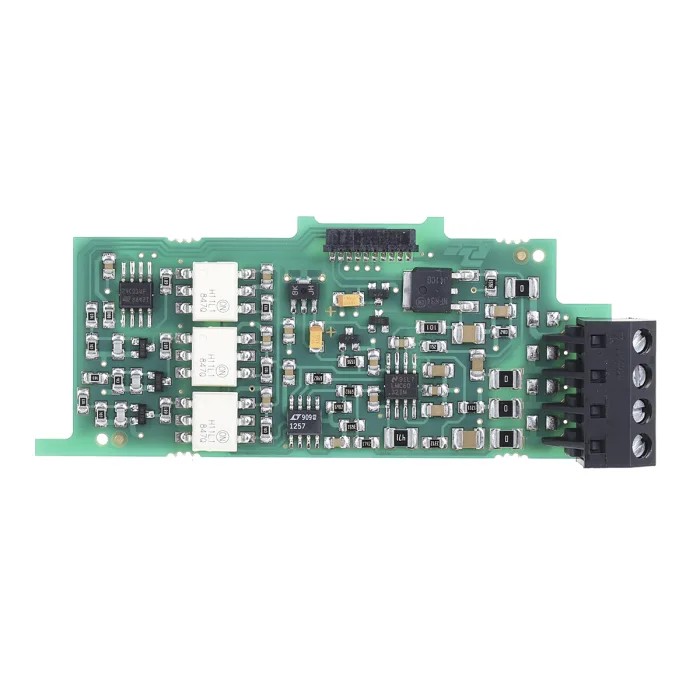

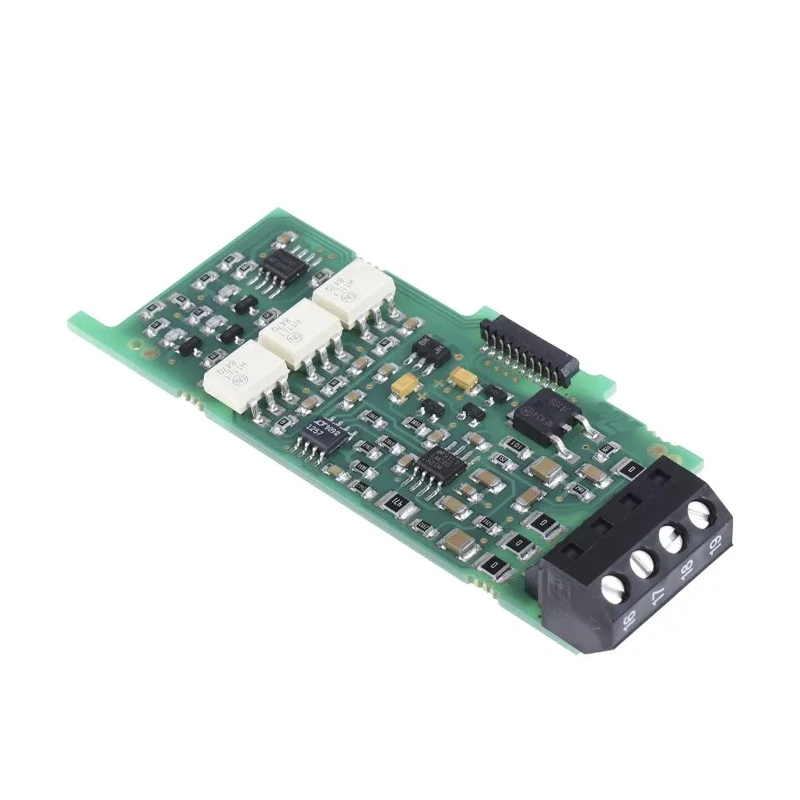

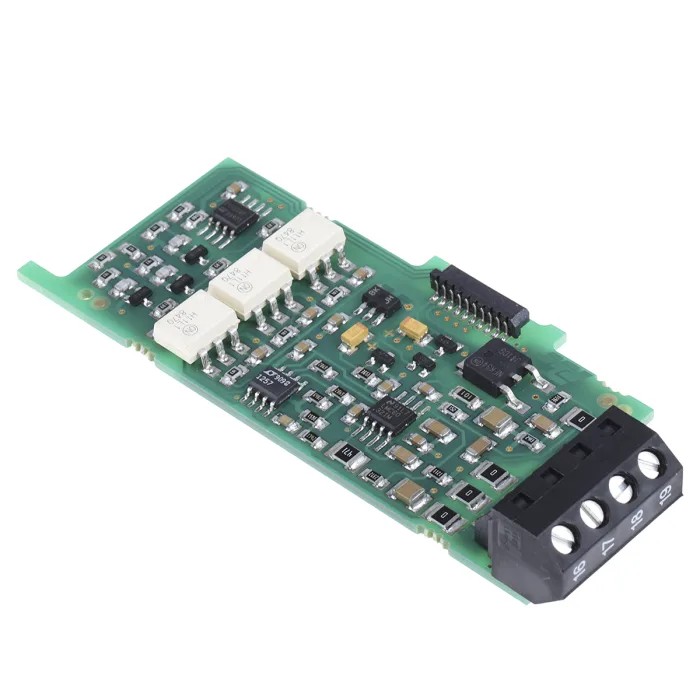

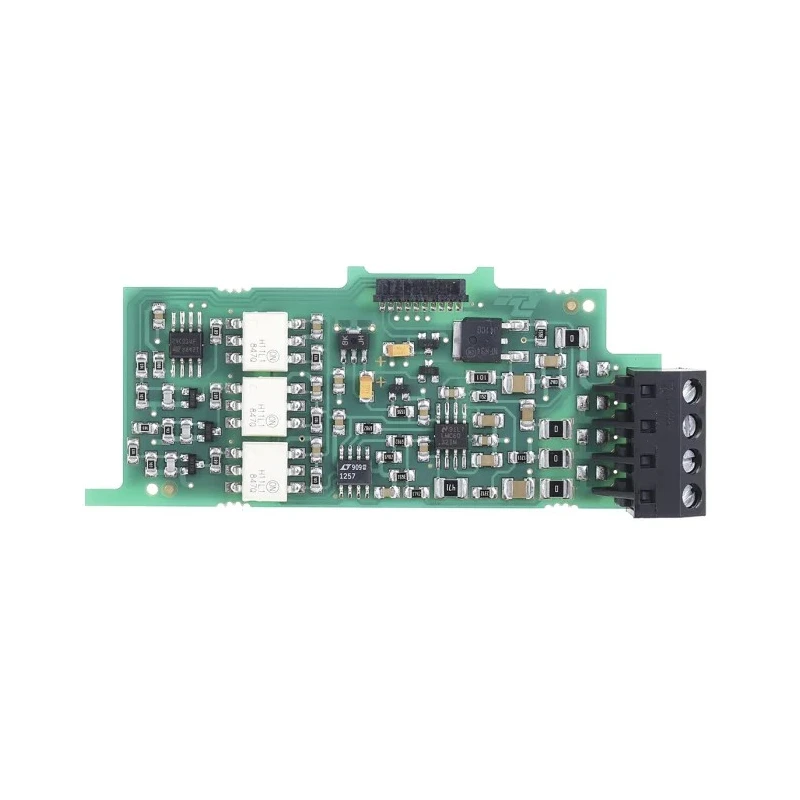

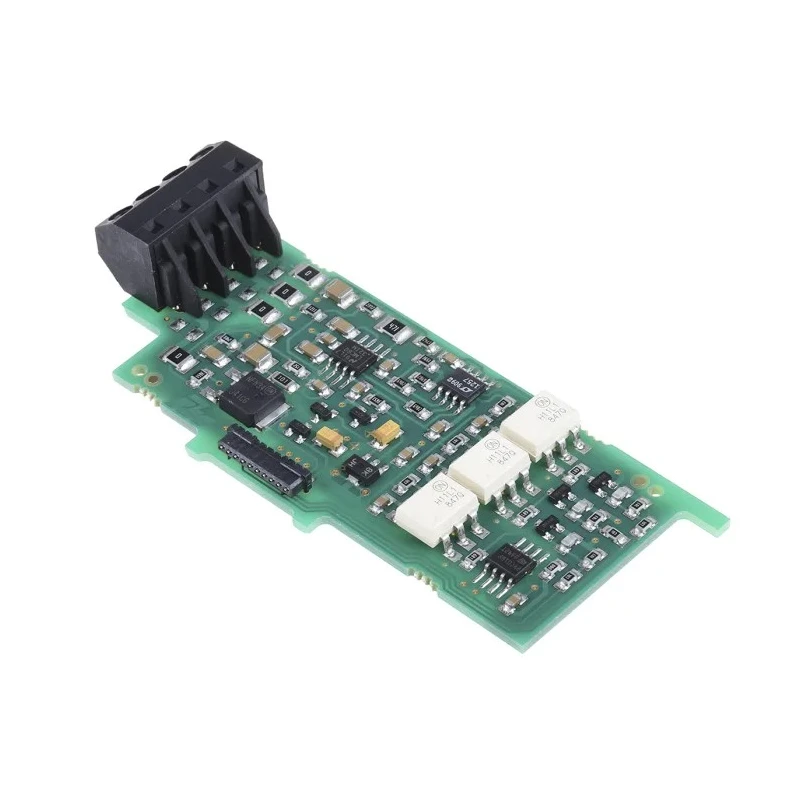

Red Lion Plug-In Card For Use With EPAX Display PAXCDL10

Free Delivery in India | Lowest Global Shipping Charges

Red Lion Plug-In Card For Use With EPAX Display PAXCDL10

Name: Red Lion Plug-In Card For Use With EPAX Display PAXCDL10
Brand: Red Lion
SKU: 181604
Price: 167.21 USD
Availability: InStock



Category Automation & Control Gear Brand Red Lion Condition New

Specifications

Country of Origin	United States
Brand	Red Lion
Dimensions	48 x 96 x 104 mm
Model	PAXCDL10
Series	PAX
Accessory Type	Plug-In Card
For Use With	EPAX Display
Plug-in options	2 or 4 maximum values, analogue output: 0 / 4 → 20 mA, 0 → 10 V, serial interface: RS 232

Key Features

The card supports 20mA or 10V linear DC signals for process control.
Compatible with PAX meters supporting up to three option cards including serial communications and setpoint outputs.
Features quick disconnect terminal blocks and a 1/3500 resolution for precise readings.
Response time of 10 milliseconds ensures rapid data update.
Supports communication interfaces including RS232, RS485, Modbus, DeviceNet, and Profibus-DP.
Allows control of readout values and setpoint alarms via bus communications.
Designed for industrial process control applications with EPAX units.
Compact dimensions of 48 x 96 x 104 mm enable easy panel meter integration.

Product Description

Red Lion PAXCDL10 Plug-In Card for use with EPAX Display is a high-performance analogue output card designed for industrial automation and process control applications. This plug-in card extends the functionality of PAX meters, enabling precise linear DC output signals of either 20mA or 10V. It fits seamlessly into EPAX display units, supporting up to three option cards including serial communications and setpoint output types, though only one card per function category is allowed at a time.

Constructed with a terminal block and quick disconnect connector, the PAXCDL10 ensures ease of installation and maintenance. It delivers a high resolution of 1/3500 and a rapid response time of 10 milliseconds, making it suitable for real-time monitoring and control.

The card supports several communication protocols such as RS232, RS485, Modbus, DeviceNet, and Profibus-DP, facilitating flexible integration into diverse automation systems. Operators can control readout and setpoint alarm values remotely through bus communications, enhancing system responsiveness and customization.

Its compact dimensions of 48 x 96 x 104 mm allow easy integration in panel meter assemblies without occupying excessive space, ideal for industrial, laboratory, and process control environments. The plug-in card is manufactured in the United States to Red Lion’s standards of quality and reliability.

The card supports 20mA or 10V linear DC signals for process control. Compatible with PAX meters supporting up to three option cards including serial communications and setpoint outputs. Features quick disconnect terminal blocks and a 1/3500 resolution for precise readings.

Response time of 10 milliseconds ensures rapid data update. Supports communication interfaces including RS232, RS485, Modbus, DeviceNet, and Profibus-DP. Allows control of readout values and setpoint alarms via bus communications.

Compact dimensions of 48 x 96 x 104 mm for panel meter integration.

This Red Lion plug-in card is a reliable component for enhancing EPAX displays in automated industrial systems. Browse more industrial automation products at EnvMart for similar solutions.
