RS PRO RSF40 Series Horizontal Viton Float Switch, 500 mm Cable, SPNO, 240 V AC Max, 120 V DC Max RSF46Y050TG Cynergy3

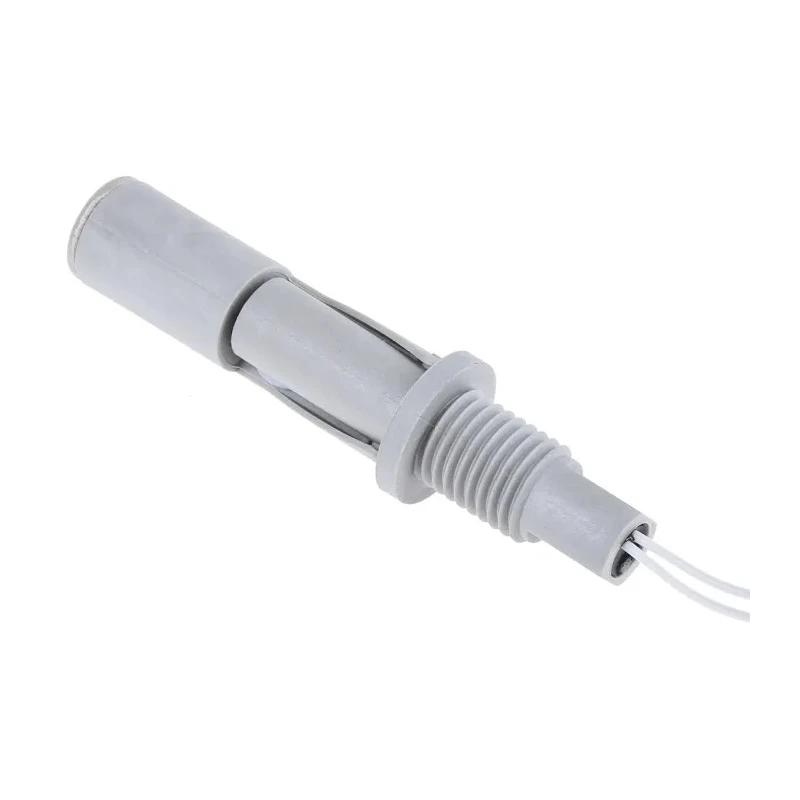

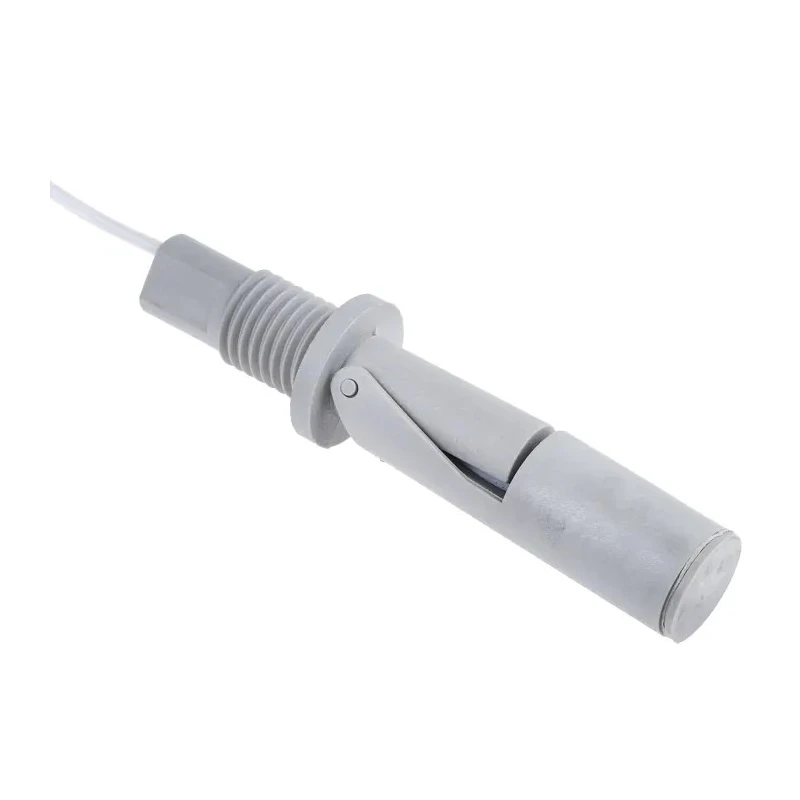

The Cynergy3 RSF46Y050TG is a horizontal float switch from the RSF40 Series featuring a Viton gasket and a durable Polyphenylene Sulfide body. It provides reliable liquid level detection and control in fluid systems by using a magnet and reed switch mechanism, available with single pole normally open (SPNO) output. The float switch is compatible with a maximum AC voltage of 240 V and DC voltage of 120 V, and supports a maximum current of 600 mA.

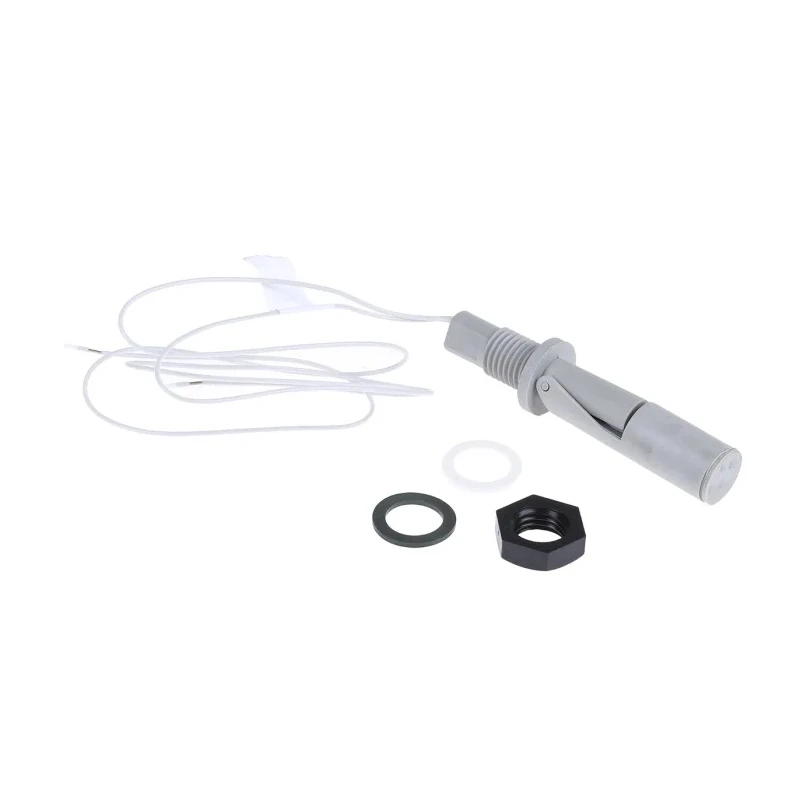

Designed for use in demanding industrial environments, the device operates over a temperature range from -10°C to 120°C. Its compact length of 98 mm allows fitting into limited spaces inside tanks. The switch is mounted horizontally inside tanks through a 16.5 mm hole, secured externally by a nylon nut. The Viton gasket ensures a tight and chemical-resistant seal, suitable for various media.

This float switch is UL recognized and suitable for safety-critical and regulatory-compliant installations, though it does not have hazardous area certification. The switch point can be precisely adjusted by moving the float along the rod, giving flexibility in operation.

Cynergy3’s RSF40 Series horizontal Float Switches find applications in chemical and water treatment plants, vending machines, commercial washing machines, and evaporator units. They provide reliable signaling for alarms and flow control, preventing underfilling or overfilling of tanks.

The switch is constructed from abrasion and chemical-resistant materials, ensuring long service life. Wide operating temperature supports varied industrial environments. Adjustable float position for configurable switch activation points.

Single pole normally open contact output suitable for many electrical circuit designs. Compact design facilitates installation in small or constrained spaces. UL recognition provides confidence in electrical safety compliance.

The Viton gasket sealing prevents leaks in harsh media conditions.

This float switch offers a high-quality solution for fluid level monitoring in industrial, commercial, and water treatment applications. Users can explore various Cynergy3 float switch variants in the Automation & Control Gear category on EnvMart for additional options and configurations.
