Bartec Push Button Control Station Thermoplastic Enclosure IP67 IP66 Cutout Diameter 22mm 07-3511-10LRR

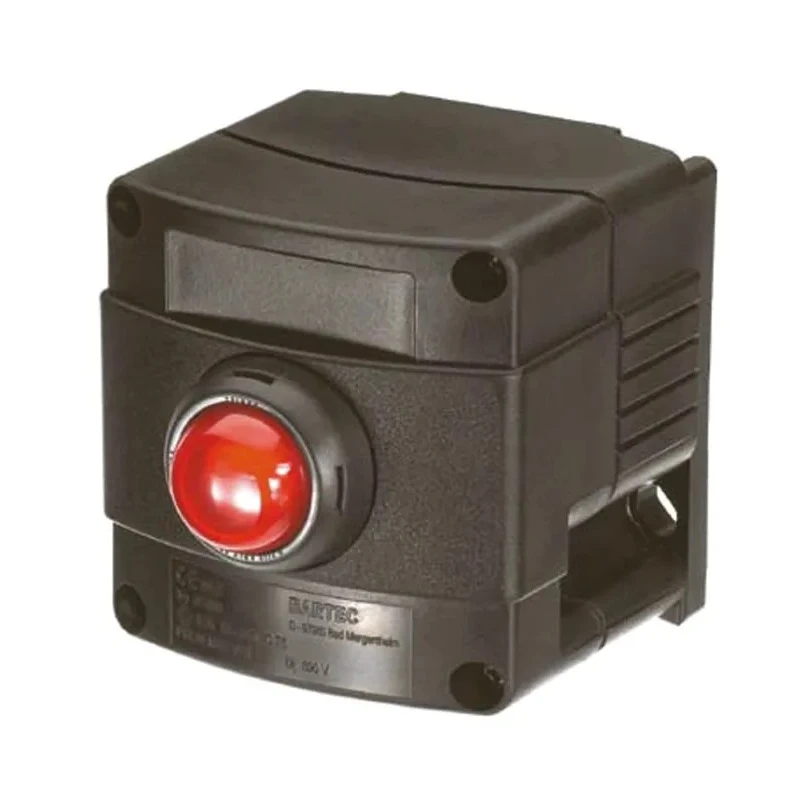

Bartec 07-3511-10LRR Push Button Control Station features a robust thermoplastic enclosure designed for harsh industrial environments requiring protection against dust and water ingress. This model offers IP67 and IP66 ratings, making it suitable for use in challenging conditions, including wet and dusty areas.

The control station accommodates a cutout diameter of 22mm, standard for many push-button and indicating devices. It supports multiple configurations with up to three control or indicating devices, providing flexibility for diverse automation needs.

Designed to be part of the Bartec ComEx system, this control station supports a single indicator lamp with multi-voltage LED options available in green or red. Electrical connections are facilitated through the use of plastic or metal stuffing box glands rated for M20 x 1.5 and M25 x 1.5, with the plastic version requiring no lock nuts. The metal glands are secured with earth plates ensuring safety and compliance.

This model is ATEX certified, suitable for hazardous area operation with protection level II 2 G EEx e d IIC T6, making it ideal for industries such as chemical processing, oil and gas, and manufacturing plants where safety is paramount.

Product is manufactured in Germany, assuring stringent quality controls and reliable performance. The maximum number of cable glands supported is two off M20, providing adequate ingress sealing.

Thermoplastic enclosure offers durable protection. IP67 and IP66 rated for superior ingress protection. Cutout diameter of 22mm for standard fitting. Single indicator lamp with multi-voltage LED options. Support for up to two M20 cable glands for connection security.

ATEX hazardous area certification for safe use in explosive environments. German manufacturing quality and reliability.

This Push Button Control Station is suited for applications in industrial automation, process control, manufacturing, and hazardous area operations. It integrates well within complex control panels or standalone stations, offering a reliable human-machine interface solution.
