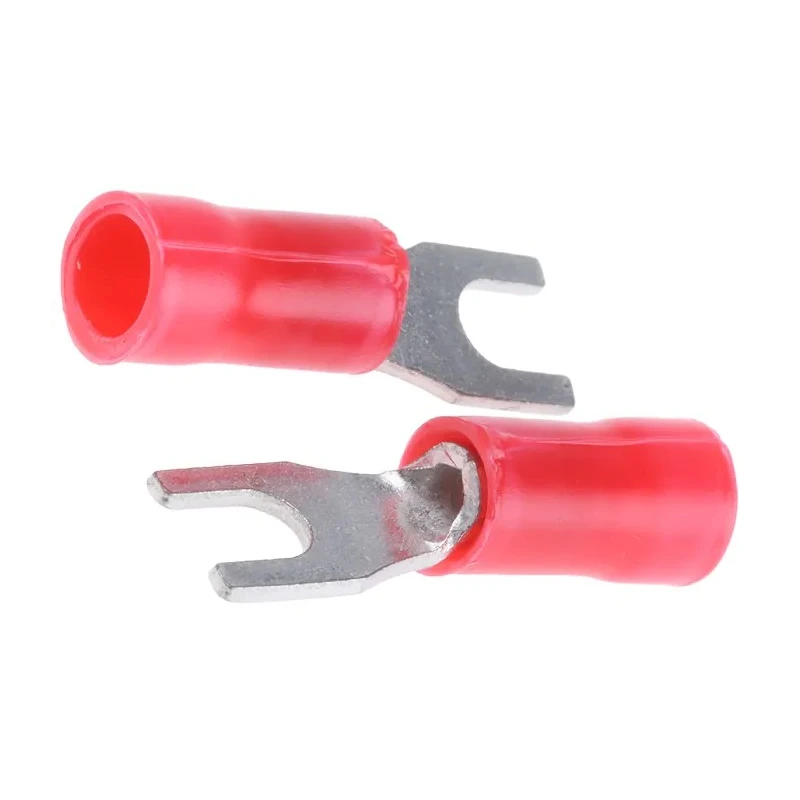

TE Connectivity PLASTI-GRIP Insulated Fork Terminal 22 AWG to 16 AWG 3 mm Stud Size Red 165004

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PLASTI-GRIP Insulated Fork Terminal 22 AWG to 16 AWG 3 mm Stud Size Red 165004

Name: TE Connectivity PLASTI-GRIP Insulated Fork Terminal 22 AWG to 16 AWG 3 mm Stud Size Red 165004
Brand: TE Connectivity
SKU: 180742
Price: 0.32 USD
Availability: InStock



Category Fork Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Red
THICKNESS	0.79mm
Model	165004
Width	5.5mm
Insulation	Insulated
Overall Length	19.9mm
Contact Material	Copper
Series	PLASTI-GRIP
Contact Plating	Tin
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	1.6mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Stud Size	3 mm

Key Features

Made of high conductivity copper with tin plating for excellent electrical contact.
Features a 94V-0 rated vinyl insulation sleeve for high dielectric strength.
Serrated inner barrel provides maximum tensile strength and electrical contact.
Funnelled barrel entrance allows easy stripped wire insertion.
Red insulation color identifies 0.25 to 1.6 mm² wire size compatibility.
Overall terminal length is 19.9 mm with 5.5 mm width and 0.79 mm thickness.
Suitable for reliable electrical and electronics applications in industry and manufacturing.
Non-hooked design ensures secure fork terminal connection.

Product Description

TE Connectivity 165004 PLASTI-GRIP Insulated Fork Terminal is designed for secure and efficient wire termination for 22 AWG to 16 AWG wires with a 3 mm stud size and red vinyl insulation.

Constructed from high conductivity copper and tin plated for corrosion resistance, it provides superior electrical conductivity and durability. The 94V-0 rated insulation sleeve ensures excellent dielectric strength and electrical safety.

The terminal features a serrated inner barrel that delivers maximum electrical contact and tensile strength after crimping, while the funnelled barrel entry facilitates easy insertion of stripped wires improving installation speed and reliability.

The overall length of the terminal is 19.9 mm, with a width of 5.5 mm and a thickness of 0.79 mm. Its red color coding identifies its wire size range compatibility from 0.25 to 1.6 mm² (22 AWG to 16 AWG), making it ideal for various electronic and electrical equipment.

This non-hooked fork terminal type is suitable for demanding industrial applications including manufacturing automation, electrical panel wiring, and electronic assembly, ensuring secure and maintenance-free connections.

High conductivity tin plated copper contacts. 94V-0 rated vinyl insulation sleeve for enhanced dielectric strength. Serrated barrel design improves mechanical strength and electrical contact. Easy wire insertion with funnelled barrel entry.

Color-coded red for 22 AWG to 16 AWG wire size compliance. Robust construction suitable for industrial, manufacturing, and electronic component assembly. Compact size with overall length of 19.9 mm and stud size 3 mm. Part of the PLASTI-GRIP insulated terminal series ensuring quality and compatibility.

Choose TE Connectivity PLASTI-GRIP Insulated Fork Terminal 165004 for reliable, high-performance wire termination solutions suited for a broad range of industrial and commercial electrical applications.
