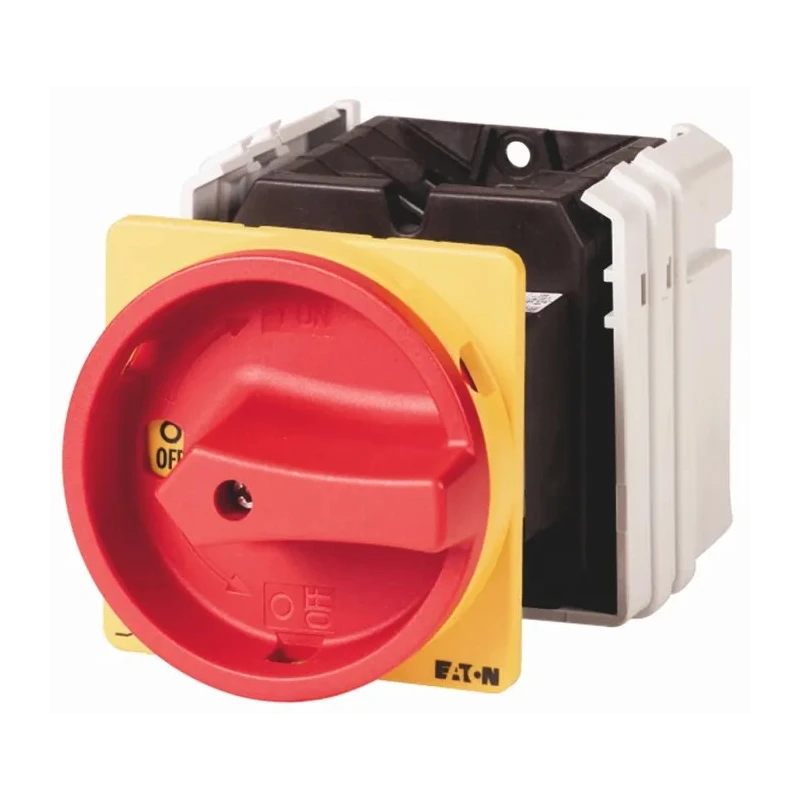

Eaton 6-Pole Panel Mount Isolator Switch IP65 520A 22 kW T5B Series
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Length | 88mm |
| Model | IP65 |
| Depth | 125mm |
| IP Rating | IP65 |
| Width | 88mm |
| Mount Type | Panel Mount |
| Series | T5B |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 520A |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Handle Colour | Red |
| Number of Poles | 6 |
| Standards/Approvals | UL, IEC, CSA |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 230V ac |
| Switching Power | 22kW |
Key Features
- High ingress protection with IP65 rating ensures suitability for harsh industrial environments.
- Panel mount installation with a compact form factor for easy integration.
- Red handle provides clear position indication and easy operation.
- Supports three-phase electrical systems with 6 poles.
- Constructed to withstand operating temperatures from -25°C to 50°C.
- Approved to international standards UL, IEC, and CSA for reliable performance.
- Screw type terminals ensure secure electrical connections.
- Switching capability includes 230V AC and 60V DC voltages.
Product Description
Eaton 092300 T5B-3-8342/V/SVB 6-Pole Panel Mount Isolator Switch is engineered for industrial and engineering applications requiring reliable circuit isolation and control. This non-fused switch disconnector provides safe switching and isolation with a maximum switching current of 520A and power rating of 22 kW.
Featuring an IP65 ingress protection rating, it offers exceptional resistance against dust and water ingress, making it suitable for harsh environments and demanding applications. The switch is designed for panel mounting and is compact with dimensions of 88mm width, 88mm length, and 125mm depth, allowing easy installation on DIN rails or base plates.
The red handle offers clear visual position indication, and the device supports up to 6 poles ideal for three-phase systems. Designed to operate reliably within temperature ranges from -25°C up to 50°C, it meets UL, IEC, and CSA standards ensuring international compliance and safety.
This isolator switch is used extensively for disconnecting electrical equipment prior to maintenance, minimizing electrical hazards. Common applications include machine control panels, transformers, switchgear panels, and distribution boards where safe isolation is critical.
The switch comes with screw-type terminals for secure and reliable electrical connections. While it does not have auxiliary contacts or padlock compatibility, it provides essential functionality for industrial switch disconnection tasks.
High ingress protection with IP65 rating for harsh environments. Compact panel mount design for easy installation. Red handle for intuitive position indication. Suitable for three-phase, six-pole electrical circuits. Wide operating temperature range from -25°C to 50°C.
Compliance with UL, IEC, and CSA standards. Screw terminal type for dependable connections. Supports switching of 230V AC and 60V DC voltages. Ideal for machine control, isolation of transformers, and distribution panels.
Manufactured in the United Kingdom, this Eaton isolator switch ensures durability and safety in electrical installations. For broader selection and related products, explore the Isolator Switch category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 520A.
This unit has dimensions of 88mm in width, 88mm in length, and 125mm in depth.
The power rating of this isolator switch is 22 kW.
It has an IP65 ingress protection rating, making it suitable for harsh environments.
This model supports switching of 230V AC and 60V DC voltages.
The operating temperature range is from -25°C to 50°C.
It is designed for panel mounting, allowing for easy installation on DIN rails or base plates.
This model features screw-type terminals for secure electrical connections.
It is approved to international standards including UL, IEC, and CSA.
This unit has 6 poles, making it suitable for three-phase electrical systems.
The handle of this model is red, providing clear position indication.
This isolator switch is manufactured in the United Kingdom.
