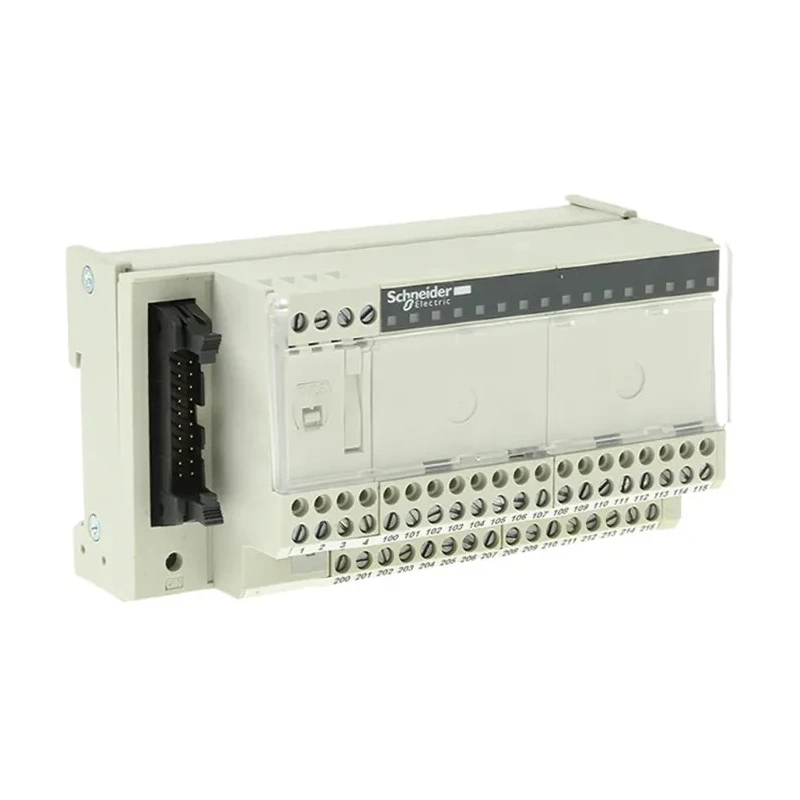

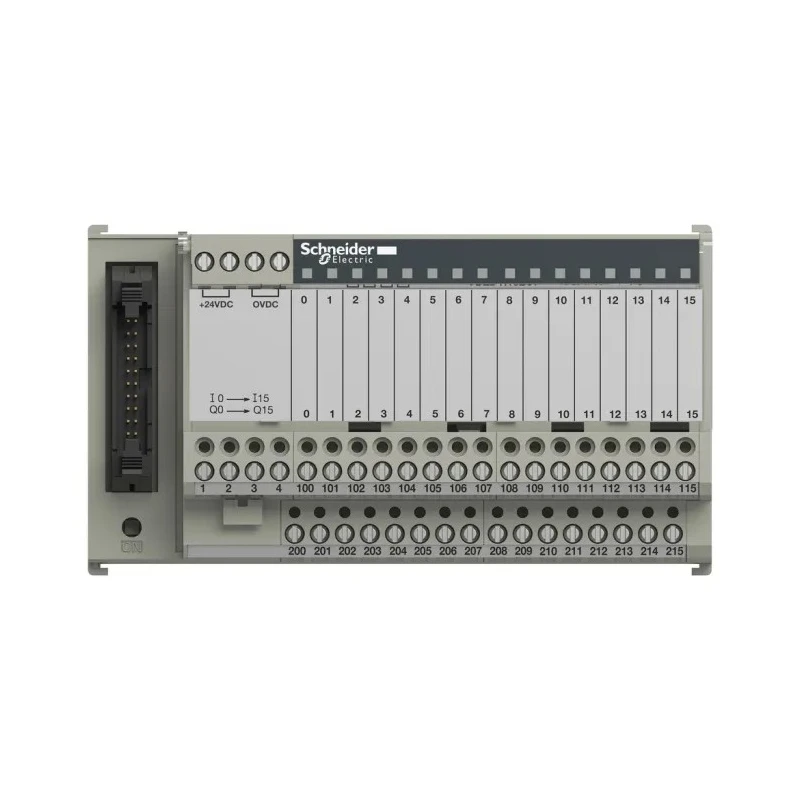

Schneider Electric Telefast Series Base for Use with Quantum Automation Platform ABE7H16R21

Schneider Electric ABE7H16R21 Telefast Series Base is a specialized connection sub-base designed for use with the Quantum Automation Platform, tailored for industrial automation and control applications. This passive sub-base provides 16 modular input/output channels enabling efficient and organized wiring solutions in PLC setups.

Manufactured in France, it features screw clamp terminals to ensure reliable electrical connection and supports a rated supply voltage from 19V to 30V with a maximum supply current of 1.8A. The device measures 125 mm in width, offering a compact form factor ideal for dense automation control panels.

Engineered with an IP20 rating, the base protects against solid ingress greater than 12 mm, suitable for typical industrial environments. Mounting is conveniently achieved through clips compatible with 35mm symmetrical DIN rails or by screws using a solid plate fixing kit, enhancing installation flexibility.

The product is part of the Modicon ABE7 range focused on simplifying wiring and rationalizing connections in automation equipment using the Telefast pre-wired system. The Telefast 2 system employs modules connected via multicore cables with HE 10 connectors, streamlining installation and reducing wiring errors.

This base is certified by recognized international bodies, including CSA and UL, ensuring compliance with industry standards for safety and quality. It is suited for a wide range of industrial applications requiring secure and efficient I/O connections.

Designed for use with Quantum Automation Platform for industrial automation. Provides 16 modular input/output channels, with 2 terminals per channel. Rated supply voltage ranges from 19V to 30V with a maximum supply current of 1.8A.

Equipped with screw clamp terminals ensuring secure electrical connections. Compact width dimension of 125 mm making it suitable for space-constrained installations. IP20 rated ensuring protection against solid objects greater than 12 mm in size.

Includes fixing options via clips for 35mm symmetrical DIN rail or screws for solid plate mounting. Suitable for all types of industrial applications with compliance to multiple international certifications. Manufactured in France with new product condition ensuring quality and reliability.
