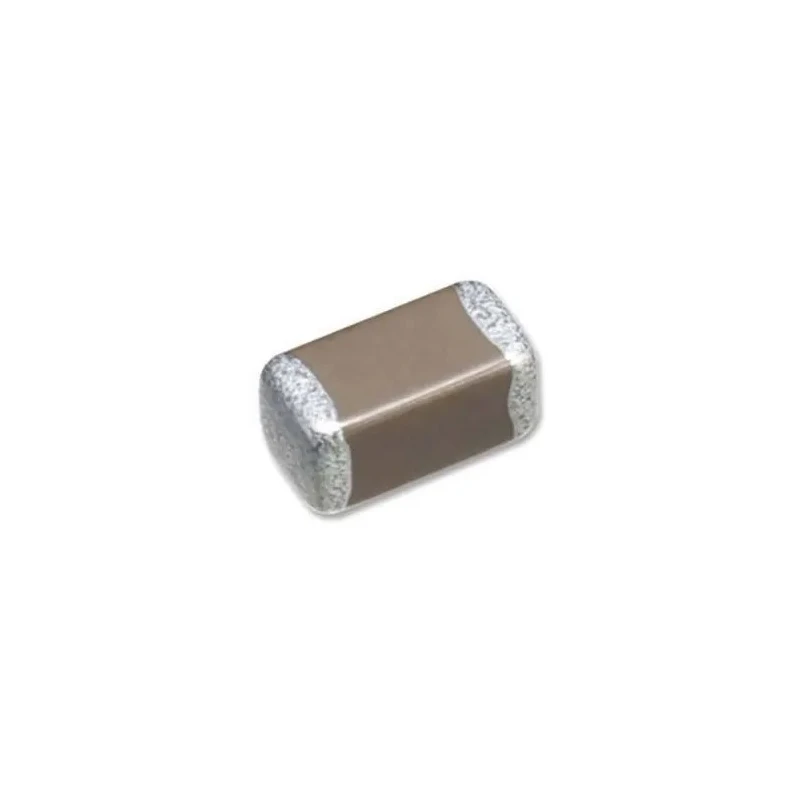

Yageo 1 pF 50V dc Multilayer Ceramic Capacitor, Surface Mount, 0603 Package CC0603CRNPO9BN1R0

The Yageo CC0603CRNPO9BN1R0 model is a high-precision 1 pF Multilayer Ceramic Capacitor designed for surface mount technology (SMT) applications. It operates reliably at 50V dc and features a compact 0603 package size, measuring 1.6 mm in length, 0.8 mm in width, and 0.8 mm in height.

Its stacked construction and use of C0G dielectric material ensures excellent frequency characteristics and temperature stability, making it suitable for precision filtering and timing circuits in industrial, commercial, and consumer electronics.

The capacitor offers a tolerance of ±0.25 pF, which supports high accuracy in sensitive circuit designs. It operates within a broad temperature range from -55°C to 125°C, suitable for demanding environments.

Designed for surface mount mounting, this capacitor is terminated with lead-free plated tin (NiSn), adhering to environmental standards like RoHS. The packaging on tape and reel facilitates automated manufacturing processes, enhancing production efficiency.

Common applications include telecommunications equipment, measuring instruments, automotive electronics (non-automotive grade), and general purpose electronic circuits requiring stable capacitance over temperature and time.

Capacitance: 1 pF with ±0.25 pF tolerance. Operating voltage: 50V dc. Package type: 0603 surface mount with dimensions 1.6x0.8x0.8 mm. Dielectric: C0G type for stable electrical characteristics. Temperature range: -55°C to 125°C for versatile use.

Terminations: Standard, lead-free plated tin (NiSn). Compliant with IEC-60384 and RoHS directives. Packaged on tape and reel for automated assembly. Explore a wide range of MLCCs and other capacitors in the Electronics Components category at EnvMart for your industrial, laboratory, and manufacturing applications.
