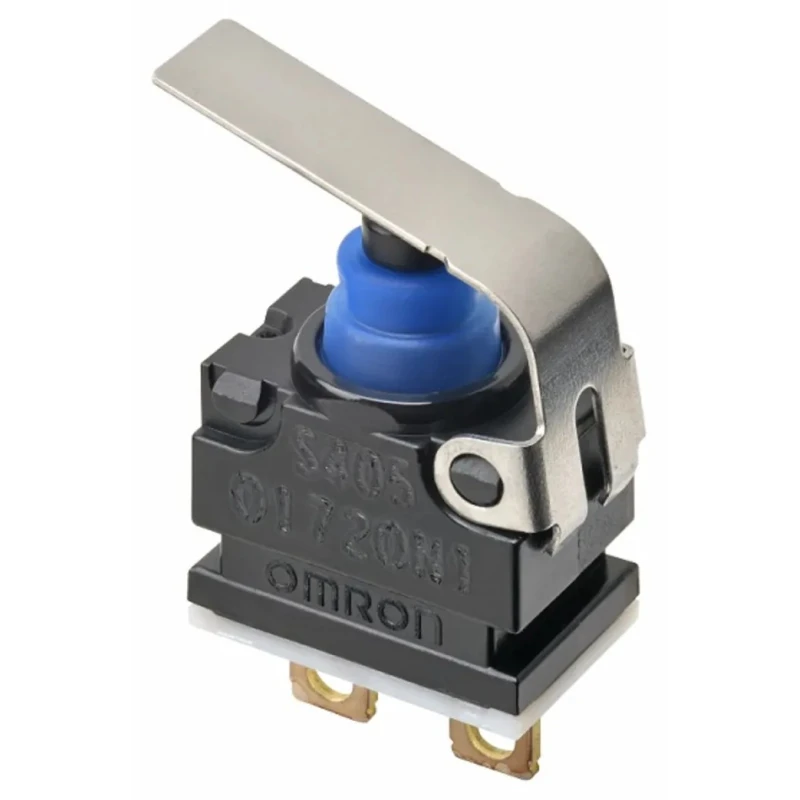

Omron Hinge Lever Subminiature Micro Switch, SPST-NC, Solder Terminal, 1mA, 13.5 V dc, IP67 D2GW-SC02M

Omron D2GW-SC02M hinge lever subminiature micro switch is a high-reliability sealed ultra-subminiature basic switch designed with a straight hinge lever actuator. It features a SPST-NC contact configuration and solder terminals, ideal for precise control in electronic circuits with a contact current rating of 1mA and a contact DC voltage of 13.5 V.

The switch is constructed with a bilaterally symmetrical shape, contributing to design simplification and supporting versatile actuator variations. Its sealed design achieves an IEC IP67 degree of protection, ensuring dust tightness and protection against immersion in liquids, making it suitable for harsh industrial environments.

The sliding structure of the actuator ensures quiet operation while maintaining high contact reliability for micro-load applications. The operating temperature range from -40°C to 85°C supports use in varied climatic conditions. Press-fit terminals enable solder-less contact, facilitating easier and secure mounting in automated manufacturing processes.

Compliant with RoHS standards, this micro switch aligns with environmental and safety regulations. The D2GW series' compact size and quiet operation make it well-suited for applications in industrial control systems, automation, instrumentation, and other equipment requiring reliable micro-switch actuation.

The switch supports a low contact current of 1mA for micro-load applications. Rated for 13.5 V dc contact voltage, suitable for low voltage circuits. Features an IP67 rating providing dust tight and protection against immersion.

Operating temperature range spans -40°C to 85°C for varied environmental conditions. The hinge lever actuator enables versatile switching in compact designs. Compliance with RoHS standards ensures restriction of hazardous substances.

Constructed with a bilaterally symmetrical shape for simplified design integration. Press-fit terminals allow for solder-less contacts enhancing assembly efficiency. Designed for quiet operation using a sliding structure in the actuator.

Appropriate for industrial, electronic, and automation applications requiring reliable micro-switching performance.
