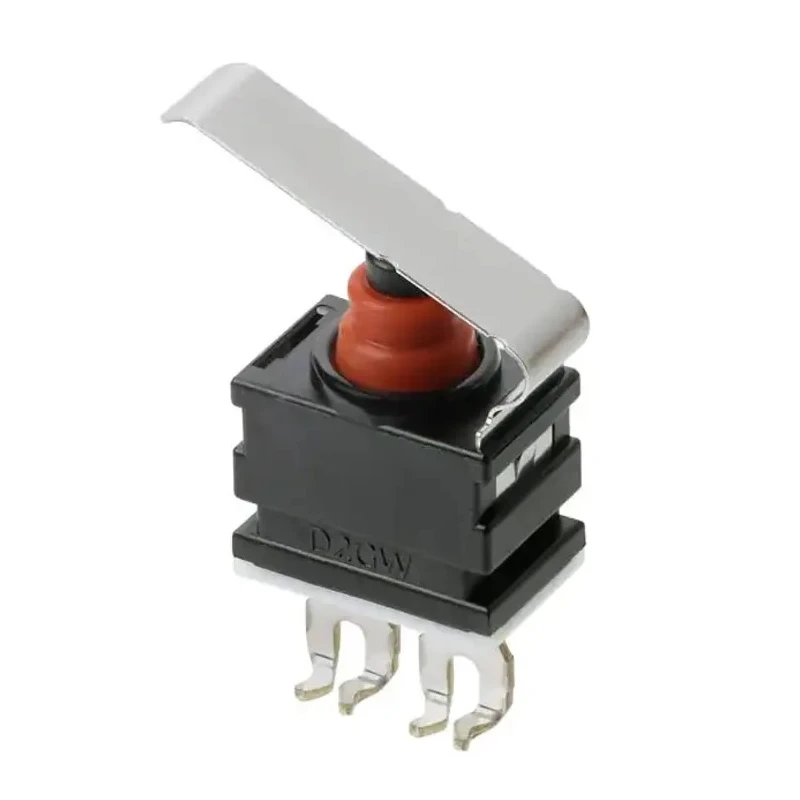

Omron Aratas Hinge Lever Subminiature Micro Switch PCB Terminal 1mA 13.5V DC SPST-NC IP67 D2GW-A13D
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | D2GW-A13D |
| IP Rating | IP67 |
| Series | D2GW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST-NC |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 13.5V dc |
| Switch Contact Current | 1mA |
Key Features
- This subminiature micro switch has a hinge lever actuator delivering precise mechanical control.
- Rated for 1mA contact current and 13.5V DC contact voltage.
- Provides SPST-NC (Single Pole Single Throw - Normally Closed) contact configuration suitable for control circuits.
- Encapsulated for IP67 dust and water ingress protection, ideal for harsh environments.
- Operates reliably from -40°C to +85°C temperature range.
- Complies with RoHS environmental standards, ensuring safe usage.
- Compact design enables easy integration into printed circuit boards via PCB terminals.
- Symmetrical form factor supports versatile actuator variations for different operating bodies.
Product Description
Omron D2GW-A13D Aratas hinge lever subminiature micro switch is designed for precise actuation and robust performance in electronic and electrical control applications. This switch features a PCB terminal type for direct Printed Circuit Board mounting, making it suitable for compact and automated systems.
The switch supports a single pole single throw normally closed (SPST-NC) configuration with a micro load of 1mA at 13.5V DC, offering excellent contact reliability for sensitive control circuits and low power applications.
Constructed to IEC IP67 standards, the switch is protected against dust ingress and temporary immersion in water, enabling use in demanding industrial environments. It operates efficiently over a wide temperature range from minus 40 degrees Celsius to 85 degrees Celsius, maintaining consistent performance in cold and hot conditions.
The Hinge Lever actuator design simplifies mechanical interfacing while the symmetrical shape allows for versatile actuator options to suit various operating bodies and manufacturing needs. Its sliding mechanism also ensures quiet operations, reducing operational noise in sensitive installations.
This subminiature micro switch includes a hinge lever actuator for precise actuation. PCB terminal type for easy solderless mounting onto circuit boards. Rated for 1mA contact current and 13.5V DC voltage in SPST-NC arrangement.
Provides ingress protection IP67, suitable for harsh industrial environments. Operating temperature range from -40°C to 85°C allows broad application scope. RoHS compliant ensuring environmental safety and regulatory adherence.
Symmetrical design for versatile actuator variations for custom applications. Sliding structure enables quiet, reliable switching operation over micro loads.
Ideal for industrial automation, electrical, HVAC, control panels, and other manufacturing equipment requiring compact, reliable low-power switching solutions with a durable form factor. The Omron D2GW-A13D subminiature Micro Switch offers precise actuation and long-term reliability in PCB applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw Normally Closed (SPST-NC) contact configuration, which is suitable for control circuits.
The maximum operating temperature for the D2GW-A13D is 85°C, allowing it to function effectively in high-temperature environments.
This micro switch has an IP67 rating, providing protection against dust ingress and temporary immersion in water, making it suitable for harsh environments.
The D2GW-A13D is rated for a contact current of 1mA, making it suitable for low power applications.
It uses a hinge lever actuator, which allows for precise mechanical control in various applications.
The minimum operating temperature for the D2GW-A13D is -40°C, enabling reliable performance in cold conditions.
This model features a PCB terminal type, allowing for easy solderless mounting onto printed circuit boards.
Yes, it complies with RoHS environmental standards, ensuring safe usage and regulatory adherence.
The contact voltage rating for the D2GW-A13D is 13.5V DC, suitable for various low power applications.
This micro switch is ideal for industrial automation, electrical systems, HVAC, control panels, and other manufacturing equipment requiring compact, reliable low-power switching solutions.
The symmetrical design of this micro switch allows for versatile actuator variations, accommodating different operating bodies and manufacturing needs.
The country of origin for the D2GW-A13D is China.
