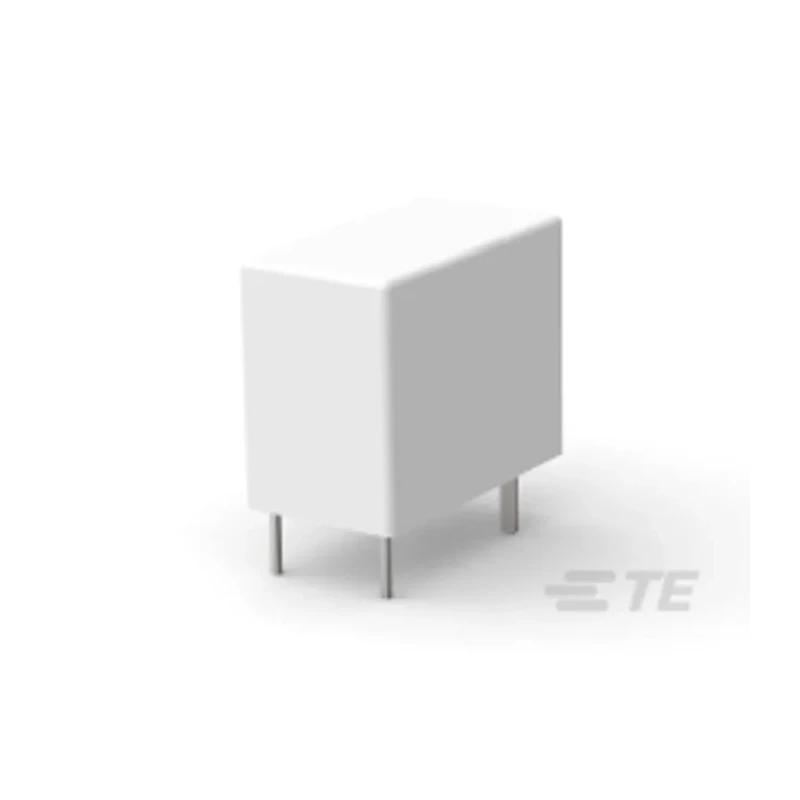

TE Connectivity PCB Monostable Relay 5V DC Coil 8A Switching Current SPST 8-1419128-1

TE Connectivity 8-1419128-1 is a PCB Monostable Relay engineered with a 5V DC coil voltage and capable of handling 8A switching current. It features a single-pole, single-throw (SPST) contact configuration suitable for printed circuit board mounting.

This relay is designed to support switching voltages up to 30V DC and 250V AC, accommodating various electrical applications. It operates efficiently within a temperature range of -40°C to 85°C, making it suited for industrial, commercial, and automation environments.

The coil resistance is 100 ohms with a coil power rating of 400mW, ensuring low power consumption. Contacts are made from silver alloy to provide high conductivity and durability, with a low contact resistance of 50 milliohms. The compact physical dimensions (20mm length, 15mm height, and 10mm width) facilitate easy integration into PCB assemblies.

This product complies with RoHS and UL standards, confirming adherence to environmental and safety regulations. Its robust design ensures reliable switching performance with a coil insulation class E and a coil contact dielectric strength rated at 4000Vrms.

Typical uses include industrial automation control, signal conditioning, power switching in control panels, and applications requiring reliable on-off switching with a low power coil. It is ideal for assembly in electronic instrumentation, HVAC control systems, and manufacturing equipment.

This relay provides reliable switching with a 5V DC coil voltage. Single-pole, single-throw (SPST) contact configuration ensures straightforward control. Supports switching currents up to 8 amperes for versatile use. Designed for PCB mounting with solder terminal types for secure connections.

Operates in temperature ranges from -40°C to 85°C for broad environmental tolerance. Switching voltage capacities include 30V DC and 250V AC. Features low coil power consumption at 400mW with 100Ω coil resistance. Constructed with silver alloy contacts delivering low contact resistance of 50mΩ.

Compact dimensions: 20mm length, 15mm height, and 10mm width for space-efficient design. Explore more in the Power Relays category at EnvMart for a wide range of high-quality relay products suitable for diverse industrial and electronic applications.
