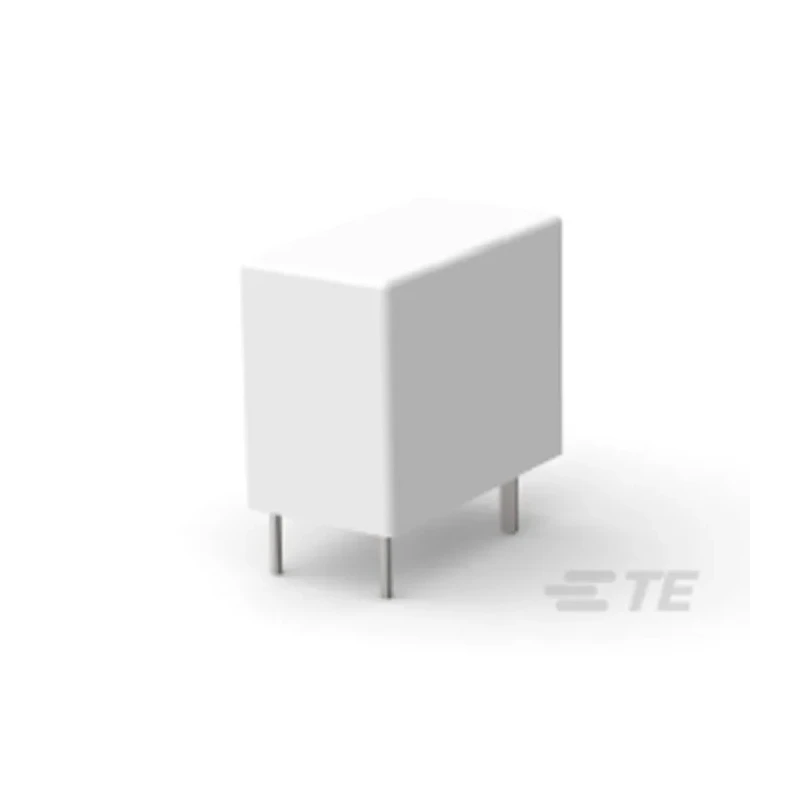

TE Connectivity PCB Monostable Relay 5V DC Coil 8A Switching Current SPST 8-1419128-1

TE Connectivity 8-1419128-1 PCB Monostable Relay is a compact and reliable component designed for electronic circuits requiring stable and precise switching. It features a 5V DC coil that energizes to switch the relay contacts rated for 8A switching current with a Single Pole Single Throw (SPST) configuration ideal for control applications.

This relay is mounted directly onto PCBs using solder terminals, which ensures secure and long-lasting electrical connections. Its capability to switch both DC loads up to 30V and AC loads up to 250V provides versatility across multiple electronic and automation systems.

Designed for durability, the relay operates within a wide temperature range of -40°C to 85°C and has a coil resistance of 100Ω with a coil power consumption of only 400mW, making it energy efficient. The silver alloy contacts offer minimal contact resistance of 50 milliohms, enhancing reliability and reducing signal loss.

Measuring just 20mm in length, 10mm in width, and 15mm in height, this relay is suitable for applications with limited space, including industrial control, power management systems, and signal conditioning. Its compliance with RoHS directives and UL approvals ensures it meets stringent environmental and safety requirements.

Operates with a 5V DC coil voltage providing reliable switching. Offers a switching current capacity of up to 8A suitable for various loads. Single Pole Single Throw (SPST) contact arrangement ensures simple switching control.

Designed for PCB mount with solder terminal types for secure connections. Capable of switching 30V DC and 250V AC voltages for versatile application usage. Wide operating temperature range from -40°C to 85°C for demanding environments.

Features coil resistance of 100Ω and power consumption of 400mW. Contact material composed of silver alloy ensuring durability and low resistance. Compact dimensions: 20mm length, 10mm width, and 15mm height for footprint efficiency.

Compliant with RoHS and UL certifications assuring quality and safety standards.

This TE Connectivity PCB Monostable Relay is widely applicable in industrial automation, electrical control panels, signal switching, and power relay applications where precision and reliability are essential. Its efficient coil power and robust contact materials make it a preferred choice in demanding environments.
