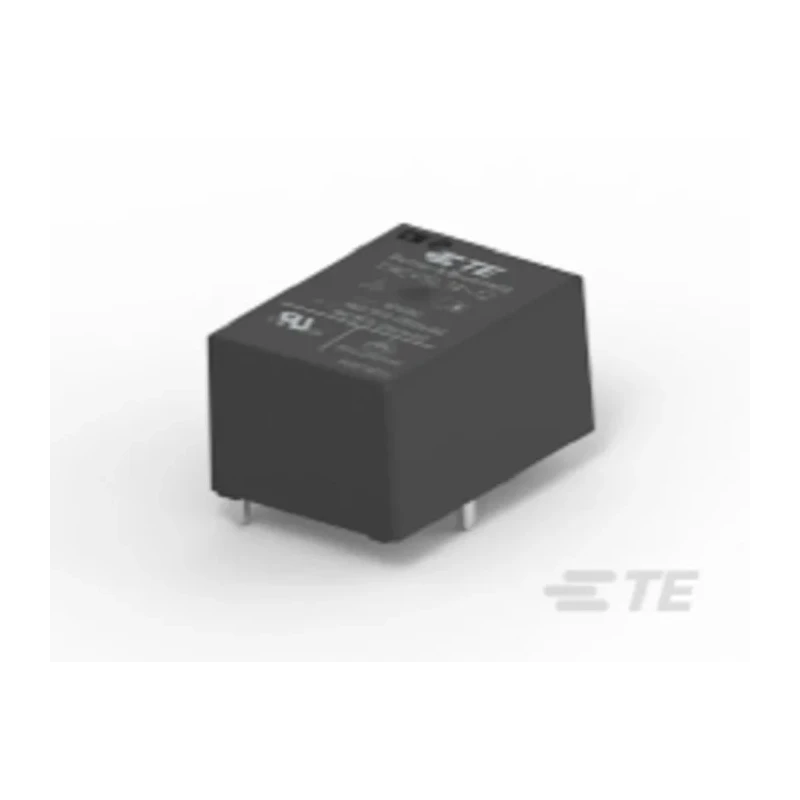

TE Connectivity PCB Monostable Power Relay with 12V DC Coil, 30A Switching Current, SPST Contact Configuration 1558661-3

TE Connectivity 1558661-3 PCB Monostable Relay is a high-quality power relay designed for use in electrical and automation systems requiring precise and reliable switching operations. Featuring a 12V DC coil, this monostable relay operates with a Single Pole Single Throw (SPST) contact configuration, capable of handling a switching current of up to 30 amperes, making it suitable for robust control applications.

This relay is mounted on printed circuit boards (PCB) and utilizes solder-type terminals ensuring secure and efficient electrical connections. Its coil resistance measures 100 ohms, with a low coil power consumption of 400mW, contributing to energy-efficient system design. The 10mm width, 20mm length, and 15mm height provide a compact footprint ideal for space-constrained circuits.

Designed to perform reliably in extreme environments, the relay supports a broad operating temperature range from -40°C to 85°C. The contact material comprises a silver alloy, which enhances conductivity and durability while maintaining low contact resistance at 50 milliohms.

The device supports switching voltages up to 250V AC and 30V DC, extending its versatility across various industrial, laboratory, and commercial control scenarios. Additionally, the product conforms to UL and RoHS standards, guaranteeing both safety and environmental compliance.

Applications include use in industrial automation systems, HVAC controls, power management, and general electrical switching tasks where reliable and efficient relay operation is critical.

Operates with a 12 volt DC coil voltage. Single Pole Single Throw (SPST) contact configuration. Supports high switching current up to 30 amperes. Compact design with 10mm width, 20mm length, and 15mm height. Coil resistance rated at 100 ohms with coil power of 400 milliwatts.

Suitable for switching AC voltage up to 250 volts and DC voltage up to 30 volts. Operates reliably from -40°C to 85°C operating temperature. Silver alloy contact material for durable performance and low resistance. PCB mounting with solder terminals for secure installation.

Compliant with UL and RoHS standards. Explore a wide range of Power Relays and electronic components at EnvMart for your industrial, commercial, and laboratory needs.
