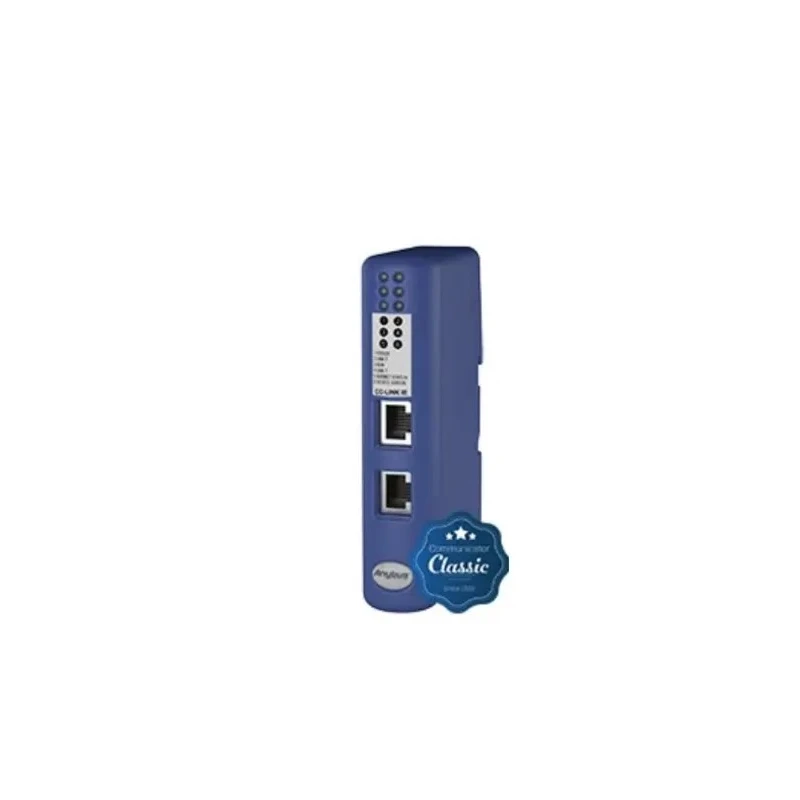

Anybus Interface Converter D-Sub 9-Pin to RJ45 Ethernet Gateway

Anybus AB7077 is a highly reliable interface converter designed to seamlessly connect serial RS-232/422/485 based industrial devices and equipment to CC-Link IE Field control systems without requiring hardware or software modifications to the existing devices. It features D-Sub 9-Pin and RJ45 connectors, ensuring robust connectivity across diverse industrial environments.

The converter performs intelligent protocol conversion, making serial data accessible as easily processed I/O data to the master PLC or controller. This allows integration with major PLC brands such as Siemens, Rockwell, and Schneider Electric, facilitating flexible automation and control solutions across manufacturing, industrial automation, laboratory, and water treatment applications.

The slim, stand-alone gateway is designed for IP20 enclosure ratings and fits DIN-rail installations, powered by a 24 V supply. Its compact form factor reduces space requirements and simplifies deployment in control panels.

Configuration is simplified with a user-friendly Anybus configuration manager that includes a 6-step Modbus RTU wizard to avoid complex scripting or serial frame assembly. The unit supports major serial protocols including Modbus RTU, ASCII, and DF1, providing extensive versatility.

Conformance tested to current CC-Link IE Field specifications, the AB7077 guarantees network compatibility and robust communication. Dual port switched Ethernet versions offer daisy chaining capabilities, eliminating the need for additional external switches and streamlining network topology.

This device is suitable for a broad range of industrial and commercial use cases including manufacturing automation, HVAC controls, water treatment processes, laboratory instrumentation, and general industrial communication interfaces.

The converter supports D-Sub 9-Pin and RJ45 connectors for serial and Ethernet interfaces respectively. Configuration is straightforward with no scripting required, including a 6-step Modbus RTU wizard. Ensures protocol conversion and presents serial data as processed I/O to master PLC/controllers.

Compatible with PLCs from Siemens, Rockwell, Schneider Electric, and others. Compact standalone design suitable for IP20 and DIN-rail mounting with 24V power supply. Includes Anybus configuration manager and flexible serial frame building capabilities.

Conformance tested to CC-Link IE Field standards guaranteeing network compatibility. Versions available with dual port switched Ethernet allowing daisy chaining and no external switches needed. Explore more Interface Converters and related automation components at EnvMart for advanced industrial communication solutions.
