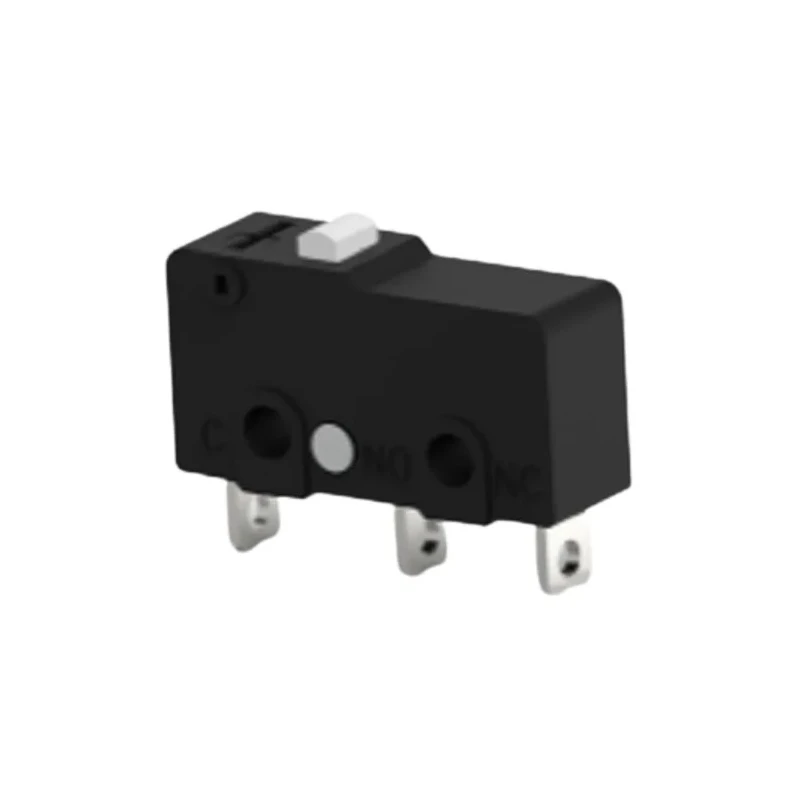

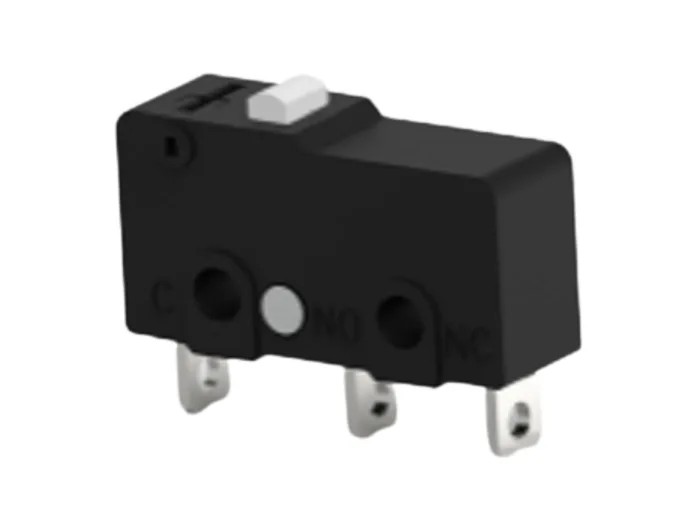

TE Connectivity Pin Plunger Snap Action Micro Switch, Solder Terminal, 3A, 250 V ac, 30 V dc, SPDT SAJ25YXPP0147SDTSEQ

TE Connectivity SAJ25YXPP0147SDTSEQ pin plunger snap action micro switch is a miniature, highly reliable device engineered to translate mechanical actuation into electrical signals efficiently. Operating at currents up to 3 amperes and voltage ratings of 250 V ac and 30 V dc, this switch is designed for a broad range of applications including home appliances, consumer electronics, factory automation, and various industrial contexts.

The solder terminal design ensures secure and robust electrical connections. The pin plunger actuator provides precise control and responsiveness essential for industrial automation and quality control systems.

Its mechanical life of 10 million cycles guarantees long-term reliability, making it suitable for high-cycle demanding environments. The device functions optimally within a temperature range from -40°C to 75°C, offering versatility across different operational settings.

Compliant with RoHS standards, the switch adheres to environmental regulations and safety requirements, supporting sustainable manufacturing practices. Its miniature form factor allows easy integration into compact assemblies without compromising performance.

With a contact force of 1.47N and SPDT contact configuration, it provides stable and consistent switching action. The product is manufactured in China and belongs to the SAJ2 series of TE Connectivity switches, known for quality and durability.

This micro switch features a pin plunger actuator for accurate triggering. Designed with solder terminals for secure electrical connections. Capable of handling contact current of 3 amperes at rated voltages. Offers a contact configuration of Single Pole Double Throw (SPDT).

Operates reliably from -40°C up to 75°C ambient temperature. Engineered to achieve a mechanical life of up to 10 million cycles. Complies with RoHS environmental standards. Ideal for use in home appliances, industrial automation, and consumer electronics.

Miniature size suits compact and space-constrained assemblies. Provides a contact force of 1.47 Newtons ensuring consistent actuation. Explore more TE Connectivity Micro Switches in the Electronics & Electricals category on EnvMart for a variety of industrial and commercial applications.
