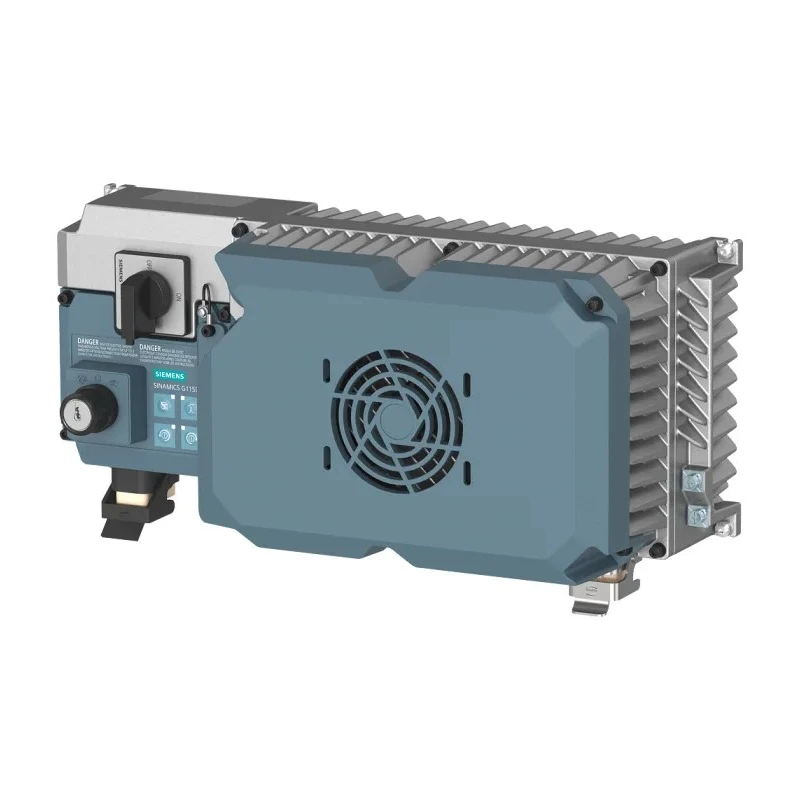

Siemens Inverter Drive, SINAMICS G115D Series, 5.5 kW, 3 Phase, 480V, 26.4 A, Wall Mount 6SL3520-1XA65-5AF0

Siemens 6SL3520-1XA65-5AF0 is a high-performance inverter drive from the SINAMICS G115D series, delivering 5.5 kW power at 3 phase and 480 V operation with a maximum output current of 26.4 A. This wall-mounted distributed drive system offers reliable continuous motion control optimized for conveyor technology, intralogistics, airport applications, as well as horizontal drives in the automotive and food, beverage, and packaging sectors.

The drive supports fully preconfigured, ready-to-connect modular solutions including converter, motor, and gearbox components. It is compatible with three-phase asynchronous motors rated IE3 efficiency or high-efficiency synchronous reluctance motors with IE4 classification. Its operational output frequency reaches up to 550 Hz while maintaining stable performance across supply voltages ranging from 380 V to 480 V.

Designed for demanding industrial environments, it features a robust wall mount with ingress protection levels of IP65 and IP66, ensuring durability against dust and water. The operating temperature range is extensive, from -30°C to 55°C, enabling reliable operation in various climatic conditions.

Industrial communication is enabled via PROFINET and Ethernet/IP protocols, facilitating seamless integration with automation networks. The integrated RFI suppression filter on category C2 reduces electromagnetic interference, maintaining electromagnetic compatibility in sensitive environments.

The compact dimensions (425 mm width, 180 mm length, and 169 mm depth) allow for space-efficient installations. Designed to meet stringent international standards such as CE, UL, cUL, REACH, and others, it ensures compliance and safety in global industrial applications.

Typical applications for this inverter drive include conveyor systems in industrial plants, airport logistics automation, automotive manufacturing lines, and food and beverage processing equipment. Its energy-saving Better World claim reflects Siemens’ commitment to sustainability and efficiency.

Rated power of 5.5 kW with maximum output current of 26.4 A. Compatible with three-phase AC motors, suitable for asynchronous and synchronous reluctance motors. Wall mount type with IP65 and IP66 ingress protection for harsh environments.

Supports output frequency up to 550 Hz and operates from 380 V to 480 V supply voltage. Wide operating temperature range from -30°C to 55°C. Equipped with PROFINET and Ethernet/IP communication for seamless integration. Integrated RFI suppression filter (category C2) to reduce electromagnetic interference.

Compact overall dimensions: 425 mm width, 180 mm length, and 169 mm depth. Complies with multiple international standards including CE, UL, cUL, and REACH. Designed specifically for conveyor technology, intralogistics, airport, automotive, food, beverage, and packaging industries.
