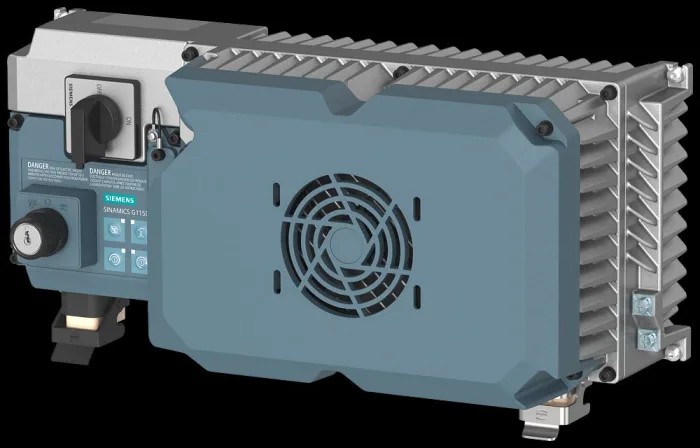

Siemens Inverter Drive SINAMICS G115D Series 5.5 kW 3 Phase 380-480V 26.4A Wall Mount 6SL3520-0XA05-5AB0
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3520-0XA05-5AB0 |
| IP Rating | IP66, IP65 |
| Drive Type | Inverter Drive |
| Mount Type | Wall |
| Overall Length | 169mm |
| Series | SINAMICS G115D |
| Overall Width | 425mm |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 55°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -30°C |
| Number of Phases | 3 |
| Maximum Output Current | 26.4A |
| Standards/Approvals | SEMI F47, UL, REACH, Low-Voltage Directive 2014/35/EC, KCC, EMC Directive 2014/30/EC, EAC, cUL, C-Tick (RCM), CE |
| Maximum Supply Voltage | 480V |
| Overall Depth | 169mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- Wall-mount design suitable for industrial automation applications.
- Compatible with AC motors for conveyor and general drive control.
- High efficiency with IE2 motor class compliance.
- IP65 and IP66 rated for robust environmental protection.
- Wide operating temperature range from -30°C to 55°C.
- Supports output frequency up to 550Hz for precise speed control.
- Meets multiple international standards including UL, REACH, CE, and SEMI F47.
- Designed for horizontal conveyor system applications needing encoderless vector control.
Product Description
Siemens 6SL3520-0XA05-5AB0 is a high-performance Inverter Drive from the SINAMICS G115D Series, delivering 5.5 kW power with three-phase input voltage ranging from 380V to 480V and a maximum output current of 26.4A. This wall-mounted drive supports AC motors and is engineered for industrial automation, especially suited for conveyor systems requiring advanced speed regulation and encoderless vector control.
The drive features an IE2 efficiency class ensuring energy savings and robust operation within a wide temperature range of -30°C to 55°C. Its degree of protection is IP65/IP66 with UL Type 4X compliance, offering excellent resistance to dust and water ingress in harsh industrial environments.
Installation and commissioning are simplified by a new design focused on quick setup and easy wiring. The 6SL3520-0XA05-5AB0 complies with numerous global standards including SEMI F47, UL, REACH, Low-Voltage Directive 2014/35/EC, EMC Directive 2014/30/EC, KCC, EAC, cUL, C-Tick (RCM), and CE, ensuring regulatory and environmental conformity.
This inverter drive is a Better World product and claims significant energy savings, making it a sustainable choice for manufacturing, water treatment, HVAC, and material handling industries. Its compact size with overall dimensions 425mm width, 169mm depth, and 169mm length allows integration into diverse control panels.
Wall-mount design suitable for industrial automation applications. Compatible with AC motors for conveyor and general drive control. High efficiency with IE2 motor class compliance. IP65 and IP66 rated for robust environmental protection.
Wide operating temperature range from -30°C to 55°C. Supports output frequency up to 550Hz for precise speed control. Meets multiple international standards including UL, REACH, CE, and SEMI F47. Designed for horizontal conveyor system applications needing encoderless vector control.
The Siemens SINAMICS G115D Series Inverter Drives can be found in the Electronics & Electricals category under Power Supply & Distribution at EnvMart for industrial-grade, reliable motor control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this inverter drive is 5.5 kW.
The maximum output current for the 6SL3520-0XA05-5AB0 is 26.4A.
It supports a three-phase input voltage range from 380V to 480V.
The maximum output frequency is up to 550Hz.
The overall dimensions are 425mm in width, 169mm in depth, and 169mm in length.
The operating temperature range is from -30°C to 55°C.
It is compatible with AC motors.
The inverter drive has an IP rating of IP65 and IP66, providing robust environmental protection.
It meets multiple standards including SEMI F47, UL, REACH, CE, and others.
It is designed for wall mounting, suitable for industrial automation applications.
The drive type is an inverter drive, specifically designed for precise speed control in applications like conveyor systems.
It claims to save energy, contributing to sustainability in industrial applications.
