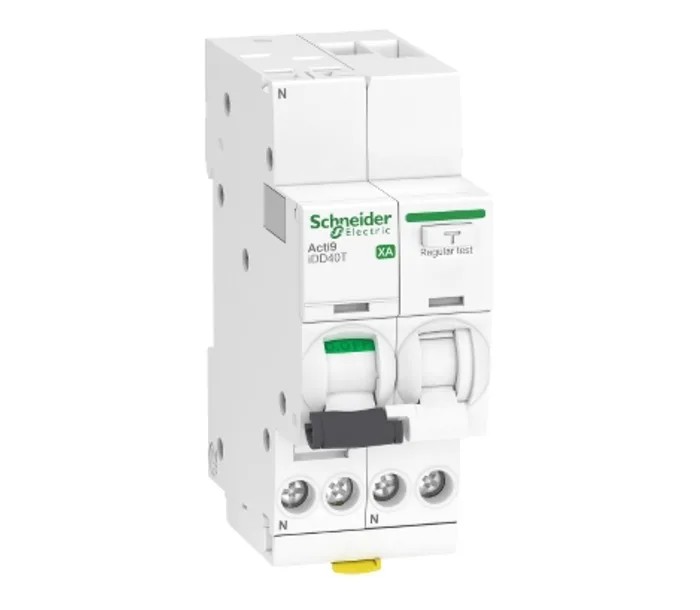

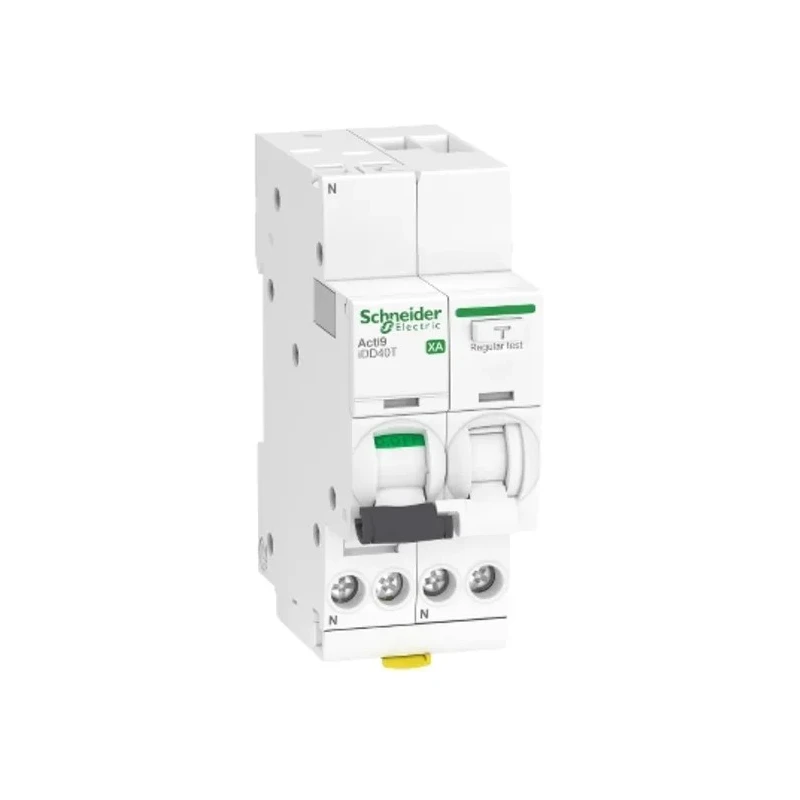

Schneider Electric Residual Current Circuit Breaker with Overload Protection 20A 1-Pole 300mA Trip A9DP6620

Schneider Electric A9DP6620 residual current circuit breaker with overload protection is designed to provide reliable switching and safety in electrical distribution systems. Rated at 20A current with a single pole and 300 mA earth leakage trip sensitivity, it combines thermal magnetic trip unit technology ensuring excellent protection against overloads and short circuits.

The device operates at 230V AC and features a Type C tripping characteristic suitable for a range of residential and distribution applications. It incorporates a toggle switch that clearly shows ON, OFF, and trip states, assisting in swift visual diagnostics.

With a robust breaking capacity of 6 kA and compliance with international standards such as RoHS and EN/IEC 60947-2, this circuit breaker ensures high-quality performance and safety. The compact design with DIN rail mounting allows easy installation, with dimensions of 85mm height, 73mm depth, and 36mm width.

The breaker withstands impulse voltages of up to 4 kV, and its thermal magnetic mechanism provides reliable tripping under overload conditions. Electrical durability of up to 20000 cycles supports long service life, while operational ambient conditions ranging from -5°C to 60°C with 95% relative humidity tolerance ensure suitability for harsh environments.

Additional safety features include a padlockable toggle switch to prevent unauthorized operation. This product is part of the Schneider Green premium class, reflecting its environmental and energy efficiency credentials.

Includes thermal magnetic tripping mechanism for protection against overload and short circuits. Rated for 230V AC voltage and has Type C tripping characteristics. Breaking capacity of 6 kA ensures robust circuit interruption capabilities.

Impulse withstand voltage rating is 4 kV with electrical durability of 20000 cycles. Padlockable for extra safety and part of Schneider Green premium class product range.

This residual current circuit breaker is ideal for industrial, residential, and commercial electrical distribution applications requiring earth leakage and overload protection. Explore more premium Schneider Electric Circuit Breakers and related electrical protection devices on EnvMart for reliable and certified quality.
