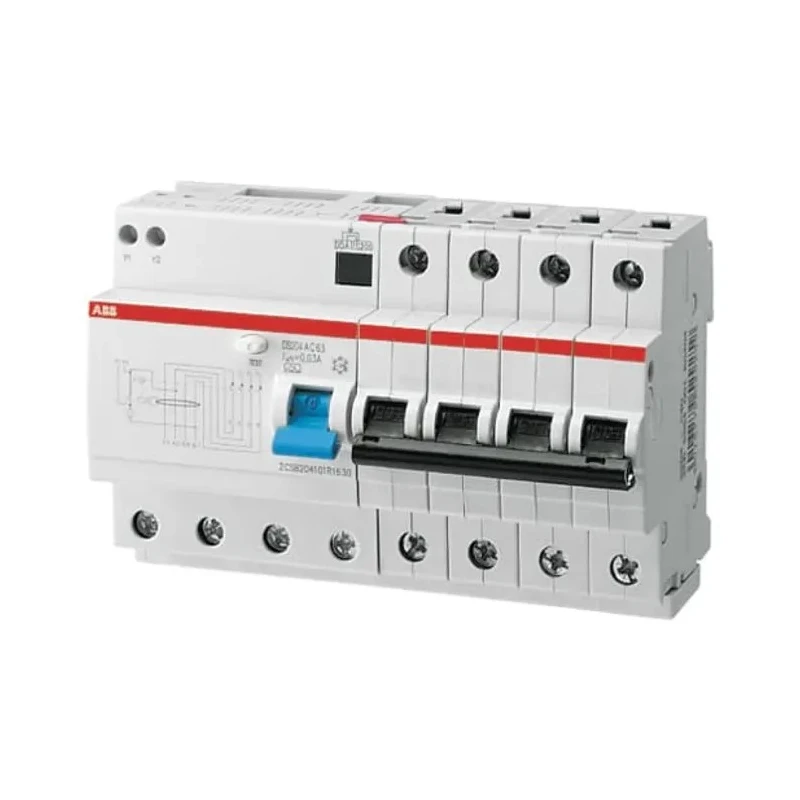

ABB Residual Current Circuit Breaker with Overload Protection 20A Current Rating 4-Pole 30mA Trip 2CSR254101R1204



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	DS200
Brand	ABB
Height	93mm
Model	2CSR254101R1204
Depth	69mm
Width	105mm
Standards	IEC/EN 60947-2
Current Rating	20A
Series	DS200
Terminal type	Flexible
Breaking Capacity	6kA
Number of Poles	4
Standards/Approvals	IEC/EN 60947-2 IEC/EN 61009-1 Standards
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Reset Actuator Type	Lever
Trip Sensitivity	30mA
Operating Characteristic	Instantaneous

Key Features

Equipped with 30mA trip sensitivity for precise earth fault detection.
Type C tripping characteristic ensures effective short circuit and overload protection.
Rated for 400V AC voltage suitable for industrial and residential use.
Breaking capacity of 6kA for high fault current interruption.
Flexible terminal type allows easy installation in various setups.
Lever reset actuator type for convenient manual operation.
Complies with IEC/EN 60947-2 and IEC/EN 61009-1 standards for safety and performance.

Product Description

ABB 2CSR254101R1204 Residual Current Circuit Breaker with Overload Protection is designed to safeguard electrical circuits against overload, short circuit, and earth fault currents.

This 4-pole RCBO has a rated current of 20 amperes and a trip sensitivity of 30 milliamperes, ideal for residential, commercial, and industrial applications. Built to IEC/EN 60947-2 and IEC/EN 61009-1 standards, it provides instant tripping characteristics (Type C) for rapid response to fault conditions.

The device operates at 400V AC and features a breaking capacity of 6 kiloamperes, ensuring reliable interruption of fault currents. Its flexible terminal design facilitates straightforward wiring, while the lever reset actuator enhances user convenience.

The compact form factor with dimensions of 105mm width, 93mm height, and 69mm depth supports efficient panel installation. Equipped with 30mA trip sensitivity for earth leakage protection. Type C tripping characteristic for effective overload and short circuit protection.

Compliant with IEC and EN safety standards ensuring quality and safety. Robust breaking capacity of 6kA enables safe system protection under high fault currents. Flexible terminal type supports versatile electrical installations.

Lever reset actuator for easy manual reset after a trip event. Compact dimensions facilitate space-saving installations.

This Residual Current Circuit Breaker is suitable for use in electrical panels for short circuit and overload protection. It helps prevent electrical hazards and provides protection against indirect contact and direct contact risks.

Ideal for use in industrial automation, electrical distribution in residential and commercial buildings, it contributes to enhanced electrical safety and compliance with international standards.
