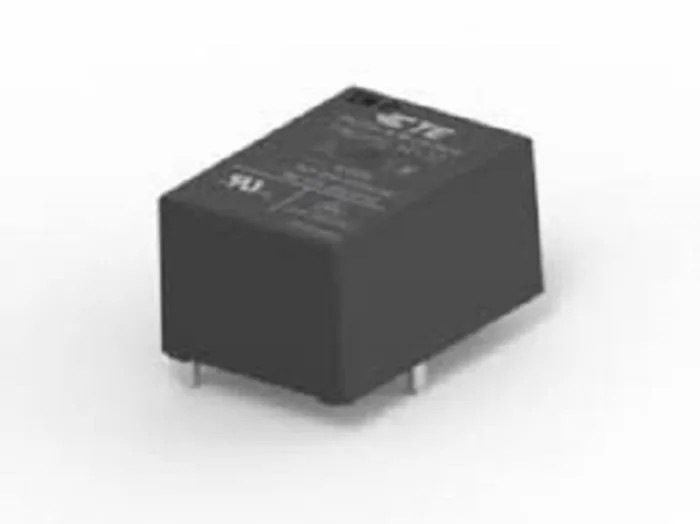

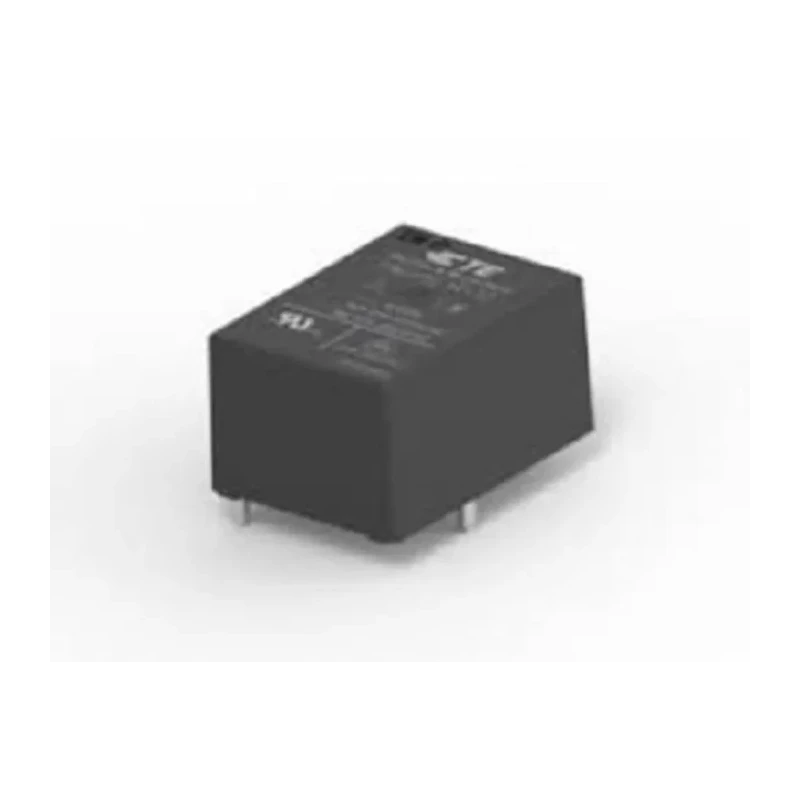

TE Connectivity PCB Non-Latching Relay 24V DC Coil 30A Switching Current SPDT, SPST 1558666-7

TE Connectivity 1558666-7 PCB Non-Latching Relay features a 24V DC coil and supports 30A switching current suitable for a wide range of industrial and electronic applications. This relay is designed to be mounted directly on PCBs using solder terminals, optimizing circuit board use and ensuring reliable connections.

The relay configuration includes SPDT and SPST contact options, providing flexibility in control circuit designs. It is certified under RoHS and UL standards for compliance and safety, making it a preferred choice in heating, ventilation, air conditioning (HVAC), appliances, and industrial controls.

Operating effectively in temperatures from -40°C to 85°C, the relay withstands harsh environmental conditions. Its compact dimensions (20mm x 15mm x 10mm) contribute to space-saving designs. The relay’s silver alloy contacts provide excellent conductivity with a contact resistance of only 50 milli-ohms, enhancing electrical performance.

The coil resistance is 640 ohms with a coil power requirement of 900mW, making it energy efficient within circuit applications. Its capability to handle switching voltages of 250V AC and 30V DC expands its versatility across various electronic devices and energy management systems.

This relay, manufactured in Portugal, is suitable for industrial, laboratory, HVAC, manufacturing, and energy management uses. Its reinforced insulation and compliance with IEC 60335-1 standards demonstrate its robust safety features.

Operates at 24V DC coil voltage ensuring efficient switching. Contact configuration supports SPDT and SPST connections for versatile use. Suitable for PCB mounting with solder terminal type for secure installation. Handles switching currents up to 30A and switching voltages up to 250V AC or 30V DC.

Robust operating temperature range from -40°C to 85°C for demanding environments. Compact dimensions measuring 20mm length, 15mm height, and 10mm width. Features silver alloy contacts with low contact resistance of 50 milli-ohms.

Coil resistance rated at 640 Ohms with coil power consumption of 900mW. Certified compliant with RoHS and UL standards ensuring quality and safety. Manufactured in Portugal with high-quality material construction. Explore the Power Relays category on EnvMart for more top-quality relays from TE Connectivity and other leading manufacturers to suit your technical and industrial requirements.
