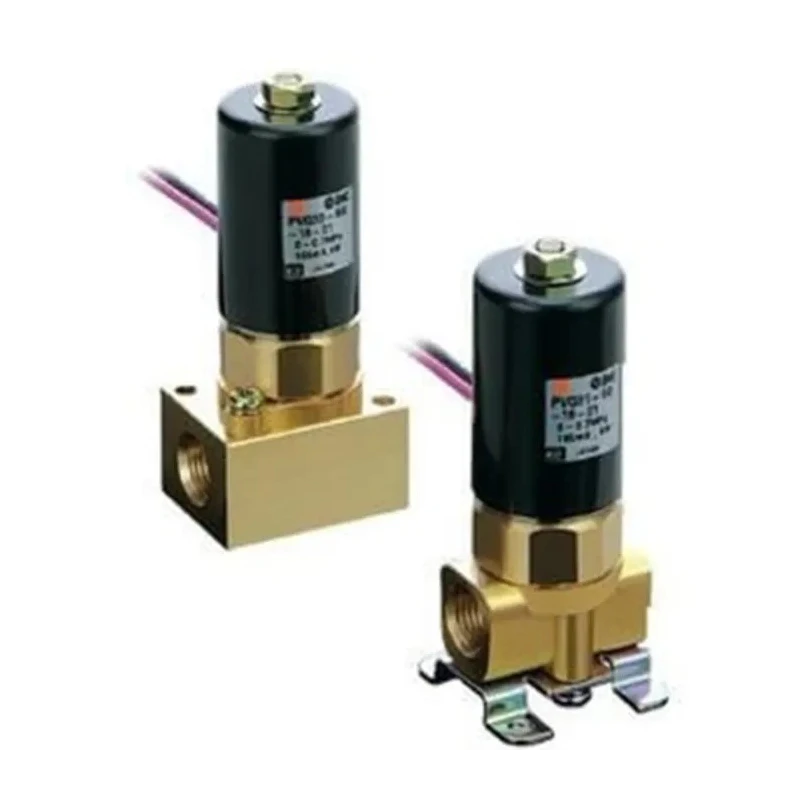

SMC Pneumatic Solenoid Valve Solenoid G 1/8 Port, Die Cast Zinc Body, 24V, 0.7 bar Operating Pressure PVQ33-5G-16-01F

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve Solenoid G 1/8 Port, Die Cast Zinc Body, 24V, 0.7 bar Operating Pressure PVQ33-5G-16-01F



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 bar
Height	30mm
Length	49mm
Model	PVQ33-5G-16-01F
Width	30mm
Mount Type	Base
Series	PVQ
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	O-Ring
Number of Positions	2
Port Size	G 1/8
Seal Material	Fluorelastomer
Minimum Operating Temperature	0°C
Actuation Type	Solenoid
Maximum Flow Rate	75L/min
Standards/Approvals	RoHS
Connection Thread Standard	G 1/8
Mount Pattern	Base
Minimum Pilot Pressure	0.25bar
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	3.96W

Key Features

The valve body is made of durable die cast zinc material.
Operates at a maximum pressure of 0.7 bar for precise control.
Equipped with a single solenoid actuator for reliable actuation.
Features Fluorelastomer seals ensuring chemical and temperature resistance.
Mounts via a base with a compact 30mm width, height, and 49mm length.
Operational temperature range spans from 0°C to 50°C providing versatility.
Supports a maximum flow rate of 75 L/min, enabling efficient fluid control.
Power consumption is moderate at 3.96W for energy effectiveness.

Product Description

SMC PVQ33-5G-16-01F Pneumatic Solenoid Valve is a compact proportional valve featuring a direct poppet valve construction engineered for smooth flow control through current regulation.

Its die cast zinc body offers robustness suitable for industrial pneumatic systems. The valve operates effectively at a maximum pressure of 0.7 bar and a temperature range of 0 to 50°C, making it ideal for air blow, spin control of hand pieces, blood pressure gauges, and vacuum chamber flow supply.

This single solenoid valve supports 24V voltage operation, ensuring reliable actuation with reduced operation noise during opening and closing transitions. Fluorelastomer seals contribute to chemical resistance and durability, while the base mount pattern provides stable installation with unrestricted orientation possibilities.

The valve accommodates a maximum flow rate of 75 L/min and includes two positions and two ports with G 1/8 female O-ring connections, facilitating integration into pneumatic circuit designs.

Manufactured in Japan and RoHS compliant, this pneumatic solenoid valve suits a wide range of industrial, laboratory, manufacturing, construction, and HVAC applications requiring precise flow control.

The valve is constructed using a die cast zinc body for strength and longevity. Compact dimensions of 49mm length, 30mm height, and 30mm width enable easy integration. Operates silently with optimized noise reduction during actuation.

Compatible with vacuum applications and allows unrestricted mounting orientation. Designed for use in various industrial pneumatic control systems and processes. Explore the extensive selection of Pneumatic Solenoid Valves at EnvMart to find products tailored to your industrial automation needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating pressure of this solenoid valve is 0.7 bar.

It operates at a voltage of 24V.

This model has dimensions of 49mm in length, 30mm in height, and 30mm in width.

The maximum flow rate is 75 L/min.

It uses a base mount type for installation.

The operational temperature range spans from 0°C to 50°C.

It features G 1/8 female O-ring ports.

The body is made of die cast zinc, and it includes fluorelastomer seals for chemical resistance.

This model has two positions.

The solenoid power consumption is 3.96W.

Yes, it is RoHS compliant.

It is suitable for industrial pneumatic control systems, air blow, spin control of hand pieces, blood pressure gauges, and vacuum chamber flow supply.
