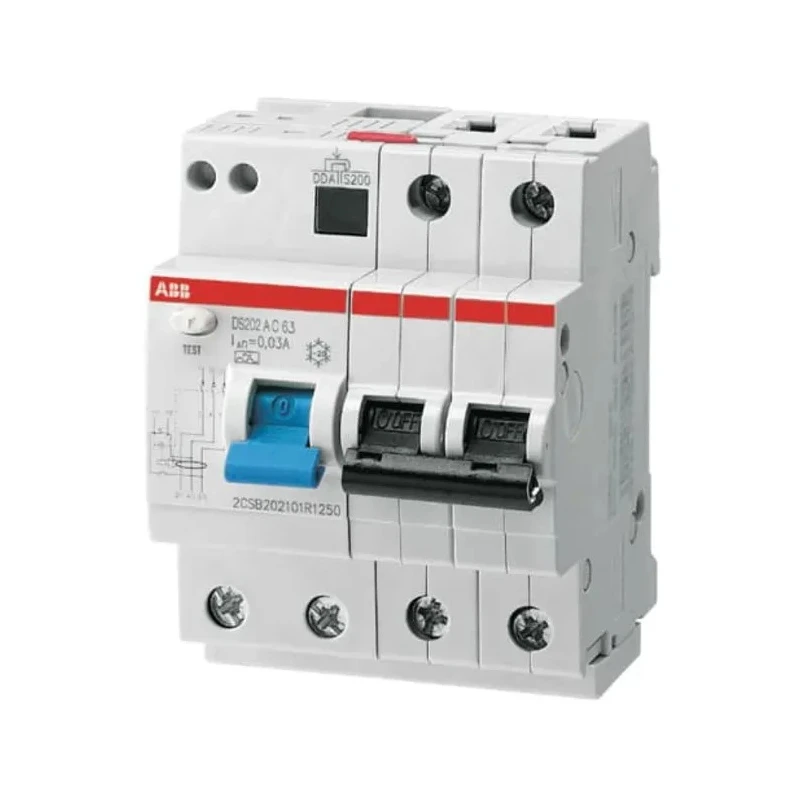

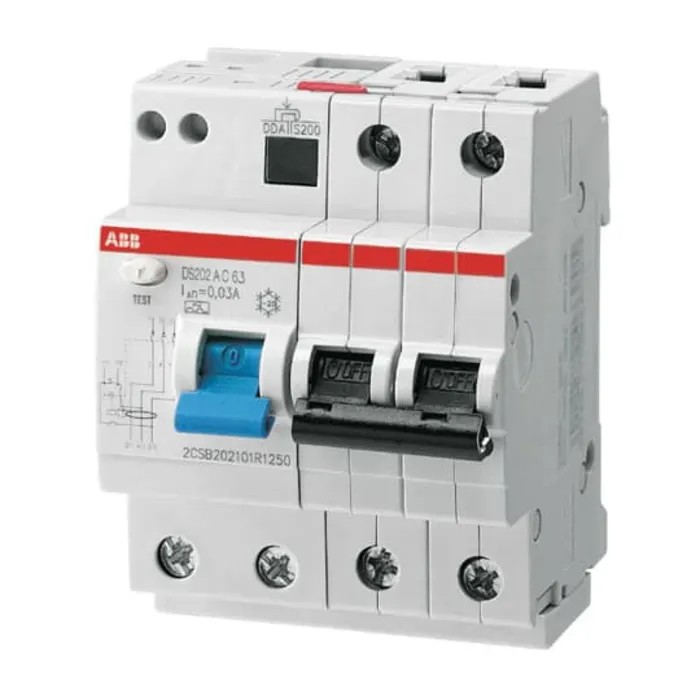

ABB Residual Current Circuit Breaker with Overload Protection 40A Current Rating 2-Pole 30mA Trip 2CSR252001R1404



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	DS200
Brand	ABB
Height	93mm
Model	2CSR252001R1404
Depth	69mm
Width	69mm
Mount Type	DIN Rail
Current Rating	40A
Series	DS200
Terminal type	Busbar
Breaking Capacity	6kA
Number of Poles	2
Standards/Approvals	IEC/EN 61009-1, IEC/EN 60947-2
Rated AC Voltage	230V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA

Key Features

Provides effective short circuit and overload protection for electrical circuits.
2-pole design suitable for dual-phase circuit applications.
Type C trip characteristic supports higher inrush currents commonly seen in inductive loads.
Thermal magnetic tripping mechanism ensures both overload and instantaneous fault response.
Compact dimensions of 93mm (H) x 69mm (D) x 69mm (W) allow easy DIN rail mounting.
Rated for 230V AC voltage and 6kA breaking capacity for safe fault interruption.
Toggle switch actuator enables straightforward manual reset after tripping.
Compliant with IEC/EN 61009-1 and IEC/EN 60947-2 standards.

Product Description

ABB 2CSR252001R1404 Residual Current Circuit Breaker with Overload Protection is a high-performance device designed for robust circuit protection in various electrical and automation environments. Featuring a rated current of 40A and sensitive trip threshold of 30mA, this 2-pole RCBO from the DS200 series ensures comprehensive protection against overloads and short circuits.

The Type C tripping characteristic makes the breaker suitable for handling moderate inrush currents typical of motors and transformers, while the thermal magnetic mechanism provides reliable fault clearance. Its compact footprint of 93mm height, 69mm depth, and 69mm width fits standard DIN rail mounting, simplifying installation in panels and distribution boards.

This device is rated for 230V AC operation with a breaking capacity of 6kA, supporting safe interruption of fault conditions without damage. Featuring a toggle switch reset actuator, it allows easy manual resetting post-fault. The breaker conforms to international IEC/EN 61009-1 and 60947-2 standards, ensuring global compliance and reliability.

Designed to operate effectively within temperature ranges from -25°C to +55°C, it is suitable for indoor electrical installations across residential, commercial, and industrial settings. Applications include protection within circuit protection panels, industrial machinery, distribution boards, and sensitive electronic equipment requiring stable circuit interruption and safety assurance.

Key features include short circuit protection, instantaneous tripping to prevent equipment damage, and a dual-pole configuration for dual-phase system integration. Its busbar-type terminal connections enhance secure and reliable electrical contacts.

Provides effective short circuit and overload protection for electrical circuits. 2-pole design suitable for dual-phase circuit applications. Type C trip characteristic supports higher inrush currents commonly seen in inductive loads.

Thermal magnetic tripping mechanism ensures both overload and instantaneous fault response. Compact dimensions of 93mm (H) x 69mm (D) x 69mm (W) allow easy DIN rail mounting. Rated for 230V AC voltage and 6kA breaking capacity for safe fault interruption.

Toggle switch actuator enables straightforward manual reset after tripping. Compliant with IEC/EN 61009-1 and IEC/EN 60947-2 standards. Operates reliably in temperature ranges from -25°C to +55°C. Designed for residential, commercial, and industrial electrical protection applications.

Explore the ABB DS200 series for reliable residual current protection at EnvMart.
