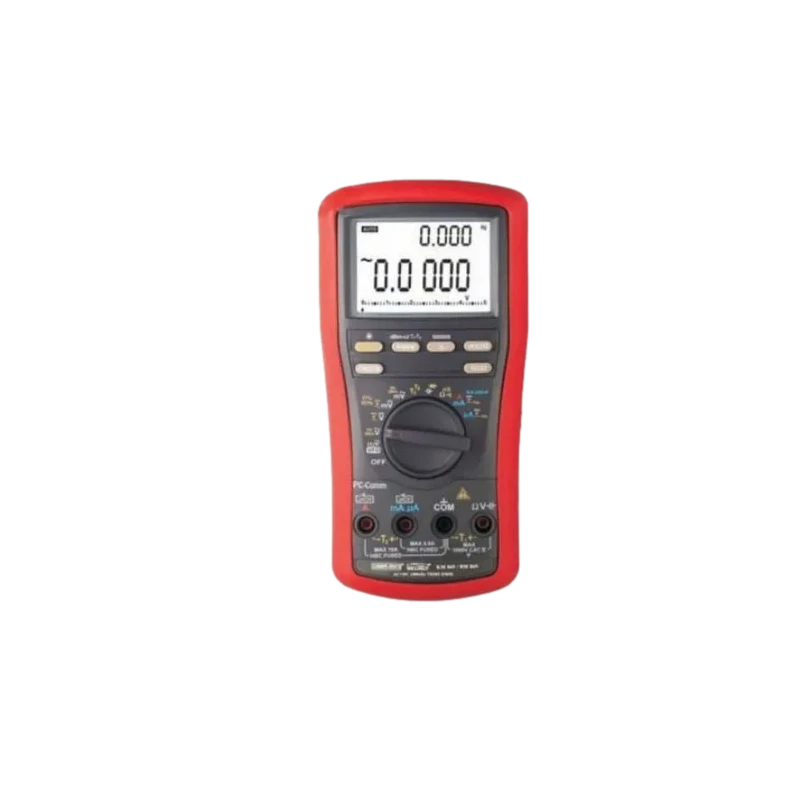

Kusam Meco KM 869 True RMS Digital Multimeter With VFD Feature & Pc Interface
Specifications
| Power Consumption | 6.5mA typical| 8mA for VFD ranges |
|---|---|
| Display | 4-4/5 Digits 50|000 counts fast mode. Selectable stable mode 5-4/5 Digits 500|000 counts for DC Voltage 5 digits 99|999 counts for Hz |
| Relative Humidity | Max. 80% R.H. for Temperature up to 31C decreasing linearly to 50% R.H. at 45C |
| Warranty | 2 Year |
| Brand | Kusam-Meco |
| Power Supply | Single 9V battery |
| Dimension | 208(L) x 103(W) x 64.5(H) mm with holster |
| Applications | Industrial Use |
| Operating Temperature | 0 Degree C to 40 Degree C 0C to 45C |
| Storage Temperature | -20C to 60C| Less Than 80% R.H. (with battery removed) |
| Altitude | Operating below 2000m |
| Model | KM-869 |
| Features | PC Interface Capability - VFD-V & VFD-Hz reading |
| Weight | Approx. 635gm with holster |
| AC Voltage (V) | 1000 |
| Temperature Coefficient | nominal 0.15 x ( specified accuracy)/C @ (0C ~ 18C or 28C ~ 45C)| or otherwise specified |
| Sensing | AC| AC+DC True RMS |
| Digit Display | 38447 |
| Polarity | Automatic |
| Pollution Degree | 2 |
| Low Battery | Below approx 7V |
| APO Timing | Idle for 17 minutes |
| APO Consumption | 70A typical |
Key Features
- Fast Measurements, 5/sec; Fully Auto-Ranging
- MAX & MIN readings & Data Hold Function
- High speed Capacitance measurement
- 1000V General Input Protection
Product Description
Kusam-Meco KM 869 True RMS Digital Multimeter With VFD Feature & Pc Interface, This meter has a built-in voltage/frequency display function that can be used as an oscilloscope or frequency counter. The meter can measure AC current up to 20A, DC current up to 10A, resistance up to 1MO, and capacitance up to 100nF. It has a built-in power supply circuit breaker. It has a built-in voltmeter, ampere meter, ohm meter, continuity tester, frequency counter, and a built-in LED indicator lamp. It can be connected to a computer via a USB port
- Logic & Line Level Frequency
- Logic Level Duty Cycle Readings & Diode Tester
- Fast Audible Continuity & Diode tester
- Auto Power Off
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure AC voltage up to 1000V.
It can measure AC current up to 20A and DC current up to 10A.
The multimeter can measure capacitance up to 100nF.
It features a 4-4/5 digits display with 50,000 counts in fast mode and can switch to a stable mode displaying 500,000 counts for DC voltage.
The operating temperature range is from 0°C to 40°C, and it can operate up to 45°C.
The weight of the unit is approximately 635 grams with the holster.
Yes, it is equipped with a PC interface capability for VFD voltage and frequency readings.
It operates on a single 9V battery.
The maximum relative humidity is 80% at temperatures up to 31°C, decreasing linearly to 50% at 45°C.
It includes a voltmeter, ampere meter, ohm meter, continuity tester, frequency counter, and a built-in LED indicator lamp.
The warranty period for this model is 2 years.
The storage temperature range is from -20°C to 60°C with less than 80% relative humidity, provided the battery is removed.
