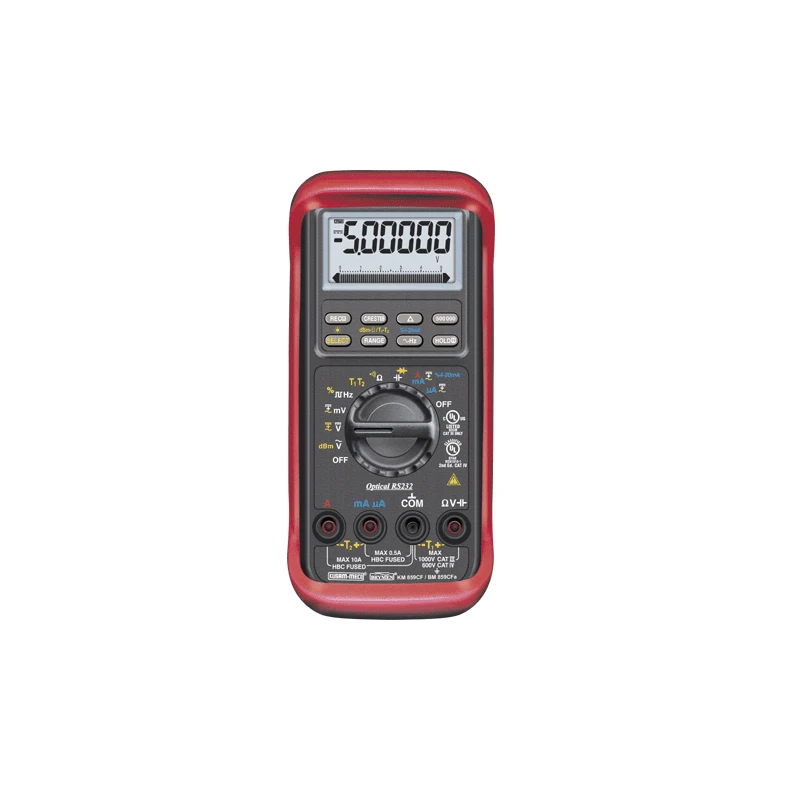

Kusam Meco KM 857 Digital Multimeter with PC Interface

Name: Kusam Meco KM 857 Digital Multimeter with PC Interface
Brand: KUSAM-MECO
SKU: AAZXE
Price: 270.9 USD
Availability: InStock



SKU AAZXE Category Multimeters Brand KUSAM-MECO Condition New

Specifications

Power Consumption	6mA typical
Display	4-4/5 digits 50\|000 counts. Selectable stable mode 5-4/5 digits 500\|000 counts for DC Voltage\| & 6 digits 999\|999 counts for Hz
Relative Humidity	Maximum relative humidity 80% for temperature upto 30C decreasing linearly to 50% relative humidity at 45 C
Warranty	2 Year
Brand	Kusam-Meco
Power Supply	Single alkaline 9V battery
Dimension	186(L) mm x 87(W) mm x 35.5(H) mm\| 198(L) mm x 97(W) mm x 55(H) mm with Holster
Applications	Industrial Use
Operating Temperature	0 Degree C to 40 Degree C 0C to 45C
Storage Temperature	-20C to 60C\| 80% R.H. (With battery removed)
Altitude	Operating below 2000m
Model	KM-857
Features	Hand Held TRMS Digital Multimeter with PC Interface
Weight	390 gm\| 500 gm with Holster
AC Voltage (V)	1000
Temperature Coefficient	Nominal 0.1 x (specified accuracy) / C @ (0C - 18C or 28C - 40C)\| or otherwise specified
Sensing	AC\| AC+DC True RMS\| Frequency Bandwidth 20kHz (V) & 1kHz (A)
Update Rate	4 - 4/5digits fast mod per second nominal\| 5 - 4/5 digits stable mod .25 per second nominal\| 42 Segments Bar Grap 0 per second max
Digit Display	5 4/5 Digits
DC Voltage Accuracy	0.03
Polarity	Automatic
Pollution Degree	2
Low Battery	Below approx. 7V
APO Timing	Idle for 17 minutes
APO Consumption	55 A
Current readings	% 4 -20mA loop

Key Features

500,000 counts high resolution stable reading mode
Record MAX, MIN, MAX-MIN readings
Crest (Instantaneous Peak Hold) MAX, MIN, MAX- MIN readings
Relative zero mode
High noise rejection filtered Line Level Frequency mode

Product Description

Kusam-Meco KM 857 Digital Multimeter with PC Interface, Record MAX, MIN, MAX-MIN reading. Crest (Instantaneous Peak hold) MAX, MIN, MAX-MIN reading. Relative zero modes. 500,000 counts high-resolution stable reading mode. Backlighted display dBm readings. %4-20mA loop current readings. High noise rejection filtered Line Level Frequency mode. Data Hold. Audible & Visible input warning

Line Level Frequency with 4 Trigger Levels
Fully Autoranging
Backlighted display
Fast Data Measurement 5/sec
Data Hold function
Audible & Visible input warning
Diode Test & Duty Cycle

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Kusam Meco KM 857 features a display capable of showing 500,000 counts in stable mode for DC voltage measurements.

This model operates within a temperature range of 0°C to 45°C.

It is powered by a single alkaline 9V battery.

The dimensions of the Kusam Meco KM 857 are 186 mm in length, 87 mm in width, and 35.5 mm in height. With the holster, the dimensions are 198 mm x 97 mm x 55 mm.

It provides AC and DC voltage readings up to 1000V, along with current readings in the %4-20mA loop.

The weight of the KM 857 is 390 grams, or 500 grams when including the holster.

Yes, this model includes a PC interface for data logging and analysis.

The DC voltage accuracy for this multimeter is 0.03%.

The update rate is nominally 4 - 4/5 digits per second in fast mode and 5 - 4/5 digits per second in stable mode.

The maximum relative humidity for operation is 80% at temperatures up to 30°C, decreasing linearly to 50% at 45°C.

It includes features such as a backlighted display, data hold function, audible and visible input warning, and fully autoranging capabilities.

The pollution degree rating for the KM 857 is 2.
