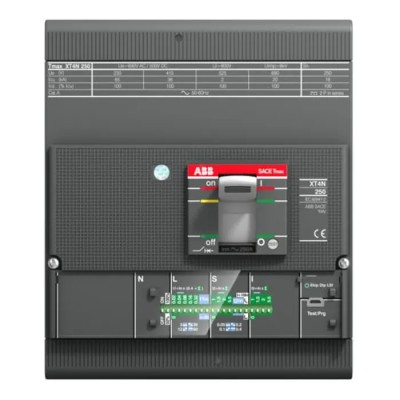

ABB Tmax XT Molded Case Circuit Breaker 4-Pole 100A, Breaking Capacity 85 kA, Rated 1SDA068508R1 XT4S 160 Ekip LSIG 100A FF

Free Delivery in India | Lowest Global Shipping Charges

ABB Tmax XT Molded Case Circuit Breaker 4-Pole 100A, Breaking Capacity 85 kA, Rated 1SDA068508R1 XT4S 160 Ekip LSIG 100A FF



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	160mm
Model	1SDA068508R1 XT4S 160 Ekip LSIG 100A FF
Depth	82.5mm
Width	140mm
Mount Type	Fixed
Current Rating	100A
Series	1SDA06
Terminal type	Fixed
Breaking Capacity	85kA
Number of Poles	4
Standards/Approvals	IEC, RoHS, CE
Rated AC Voltage	690V ac
Better World Claim	Designed for Disassembly
Tripping Mechanism	Solid State
Reset Actuator Type	Lever
Rated current (In)	100 A In
Rated frequency (f)	50/60 Hz
Rated voltage (Ur)	690 V
Rated impulse withstand voltage (Uimp)	8 kV

Key Features

Rated current of 100 A ensures reliable circuit protection.
Four-pole configuration for multi-phase electrical systems.
Solid state tripping mechanism with Ekip LSIG release.
Fixed mounting and fixed front terminals provide secure installation.
Offers rated AC voltage of 690 V with impulse withstand voltage of 8 kV.
Compliance with IEC standards and certifications including RoHS and CE.
Equipped with a lever-type reset actuator for ease of operation.
Designed for disassembly promoting sustainability.

Product Description

ABB 1SDA068508R1 XT4S 160 Ekip LSIG 100A FF Molded Case Circuit Breaker is a robust 4-pole electrical protection device rated at 100 amperes with a breaking capacity of 85 kA. It operates at rated AC voltage of 690 V and provides excellent protection for medium to low voltage electrical installations in industrial, commercial, and manufacturing environments.

This molded case circuit breaker features a solid state tripping mechanism integrated with Ekip LSIG technology for precise and reliable overload, short circuit, and ground fault protection. Its fixed mounting and front terminal design ensure easy installation and safe electrical connections.

The breaker dimensions are compact with a height of 160 mm, width of 140 mm, and depth of 82.5 mm, making it suitable for panel mounting in limited spaces. It complies with IEC standards, carries RoHS and CE marks, confirming environmental and safety compliance.

The breaker has a reset actuator lever type for convenient manual operations and is designed for disassembly for better sustainable disposal and maintenance. Manufactured in Italy, it reflects superior build quality and durability.

Applications including electrical distribution, industrial automation, machinery protection, HVAC systems, and manufacturing process control benefit from this circuit breaker's reliable operation. It is ideal for facilities seeking energy efficient, compliant, and safe circuit protection solutions.

Rated current of 100 A ensures reliable circuit protection. Four-pole configuration for multi-phase electrical systems. Solid state tripping mechanism with Ekip LSIG release. Fixed mounting and fixed front terminals provide secure installation.

Offers rated AC voltage of 690 V with impulse withstand voltage of 8 kV. Compact dimensions: Height 160 mm, Width 140 mm, and Depth 82.5 mm. Compliance with IEC standards and certifications including RoHS and CE. Equipped with a lever-type reset actuator for ease of operation.

Designed for disassembly promoting sustainability. Manufactured in Italy ensuring quality and reliability. Explore our complete range of Molded Case Circuit Breakers and electrical protection products at EnvMart for trusted performance and safety in your electrical installations.
