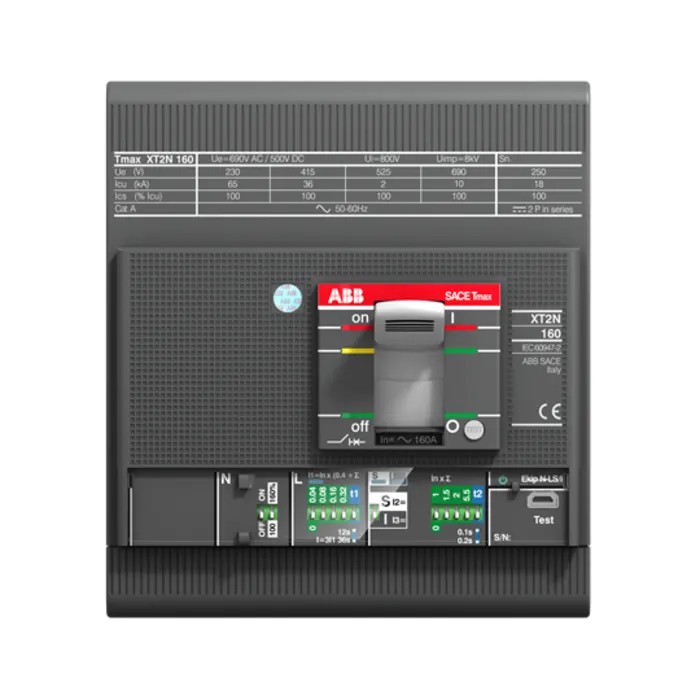

ABB Tmax XT Molded Case Circuit Breaker 4-Pole 100A Breaking Capacity 85 kA Fixed 1SDA067836R1 XT2S 160 Ekip LS/I 100A FF

Free Delivery in India | Lowest Global Shipping Charges

ABB Tmax XT Molded Case Circuit Breaker 4-Pole 100A Breaking Capacity 85 kA Fixed 1SDA067836R1 XT2S 160 Ekip LS/I 100A FF



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	130mm
Model	1SDA067836R1 XT2S 160 Ekip LS/I 100A FF
Depth	82.5mm
Width	120mm
Mount Type	Fixed
Current Rating	100A
Series	1SDA06
Terminal type	Fixed
Breaking Capacity	85kA
Number of Poles	4
Standards/Approvals	CE, IEC, RoHS
Rated AC Voltage	690V ac
Better World Claim	Designed for Disassembly
Tripping Mechanism	Solid State
Reset Actuator Type	Lever
Rated current (In)	100 A In
Rated frequency (f)	50/60 Hz
Rated voltage (Ur)	690 V
Rated impulse withstand voltage (Uimp)	8 kV

Key Features

Designed for fixed mounting with front terminal connection.
Features a solid state tripping mechanism with lever reset actuator for reliability.
Rated operational voltage of 690 V AC and frequency suitability of 50/60 Hz.
Compact dimensions measuring 130 mm height, 120 mm width, and 82.5 mm depth.
Manufactured in Italy ensuring quality and compliance with CE, IEC, and RoHS standards.
Equipped with Better World claim for designed disassembly and sustainability.
Ideal for industrial and commercial electrical protection applications.
Part of the Tmax XT range, series 1SDA06, trusted for robust circuit breaking performance.

Product Description

ABB 1SDA067836R1 XT2S 160 Ekip LS/I 100A FF Molded Case Circuit Breaker is a premium 4-pole circuit protection device designed for fixed mounting applications with front terminals. It offers a rated current of 100A and a high breaking capacity of 85 kA, ensuring dependable interruption of fault currents in electrical circuits.

This device operates at a rated AC voltage of 690 V and frequency range of 50/60 Hz, making it suitable for varied industrial and commercial electrical installations requiring reliable overload and short-circuit protection. The solid state tripping mechanism coupled with a lever reset actuator provides precise and rapid circuit disconnection. The compact form factor with dimensions of 130 mm height, 120 mm width, and 82.5 mm depth facilitates easy panel integration.

Designed under the Tmax XT range and 1SDA06 series, this circuit breaker is manufactured in Italy complying with CE, IEC, and RoHS standards. It contributes to sustainable practices with a Better World claim for designed disassembly, highlighting ABB's commitment to environmental responsibility.

Fixed mounting type with front terminals for secure installation. Rated current of 100 A and rated impulse withstand voltage of 8 kV. Solid state tripping mechanism for enhanced protection sensitivity. Compliance with international standards ensuring high safety and performance.

Compact and optimized dimensions for ease of use in electrical panels. Supports industrial, commercial, and automation electrical protection use cases. Part of ABB's Better World product range focusing on energy efficiency and sustainability.

Highly trusted solution for circuit breaking in power distribution systems.

This ABB Molded Case Circuit Breaker is suitable for industrial, construction, electrical automation, and HVAC systems, providing efficient overload and short-circuit protection. Explore more high-quality circuit breakers and electrical devices on EnvMart for your professional needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The breaking capacity of this molded case circuit breaker is 85 kA, allowing it to effectively interrupt fault currents in electrical circuits.

This model has a rated current of 100 A, suitable for various electrical applications requiring reliable protection.

The dimensions of this unit are 130 mm in height, 120 mm in width, and 82.5 mm in depth, which facilitates easy integration into electrical panels.

It operates at a rated AC voltage of 690 V, making it suitable for a range of industrial and commercial electrical installations.

This model features a 4-pole configuration, providing comprehensive circuit protection.

It utilizes a solid state tripping mechanism, which enhances protection sensitivity and ensures rapid disconnection during faults.

This unit complies with CE, IEC, and RoHS standards, ensuring it meets international safety and environmental requirements.

It is designed for fixed mounting with front terminals, ensuring secure installation in electrical panels.

This circuit breaker is suitable for a frequency range of 50/60 Hz, accommodating various electrical systems.

The rated impulse withstand voltage is 8 kV, providing additional protection against voltage spikes.

This model features a Better World claim for being designed for disassembly, highlighting its contribution to sustainability and environmental responsibility.

It is suitable for industrial, commercial, and electrical automation applications, providing effective overload and short-circuit protection.
