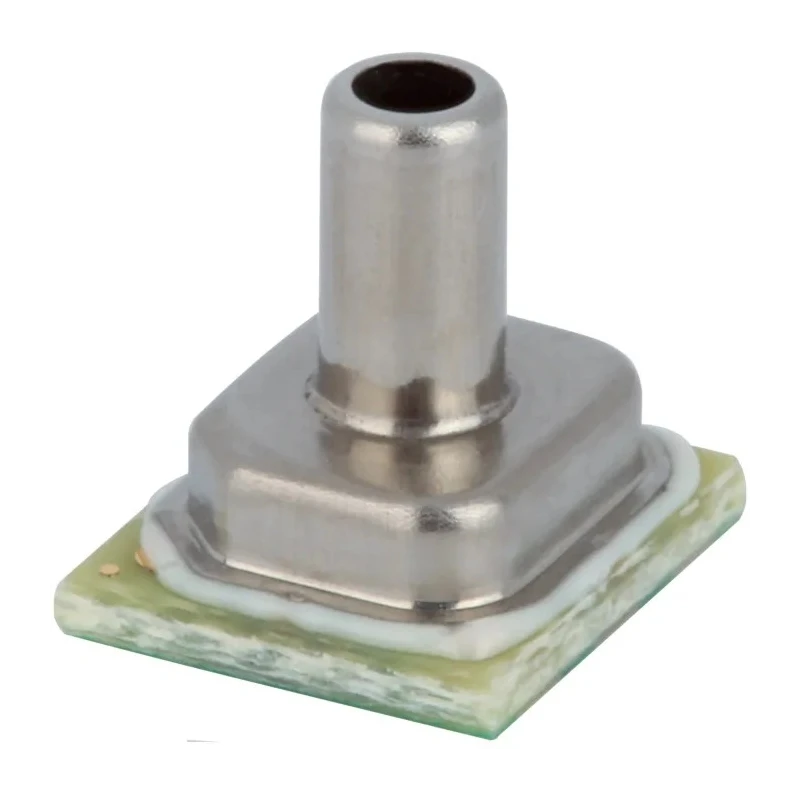

Honeywell Technologies Board-Mounted Piezoresistive Pressure Sensor 34.47 kPa Max Operating Pressure ABP2MRRN005ND2A3XX

Honeywell ABP2MRRN005ND2A3XX is a board-mounted piezoresistive pressure sensor specifically designed for measuring pressure up to 34.47 kPa. It features a polyamide wetted surface to ensure compatibility with wet media and non-corrosive fluids. The sensor operates reliably in a harsh temperature range from -40°C to +110°C, making it ideal for industrial, medical, HVAC, and pneumatic system applications.

The device incorporates an onboard ASIC that performs calibration and temperature compensation, enhancing measurement accuracy and stability. It provides outputs as a 24-bit digital signal compatible with I2C or SPI interfaces as well as ratiometric analog signals, allowing flexible integration with various control systems. The fast response time of 7.5 milliseconds supports rapid acquisition of pressure data, essential for time-critical applications.

This pressure sensor is manufactured in accordance with ISO 9001 quality standards and meets RoHS environmental compliance. Optional gel coating under Port 1 protects the electronics from condensation and exposure to liquid media, expanding its usability to water-contact and fuel level monitoring scenarios.

Industries benefiting from the ABP2MRRN005ND2A3XX sensor include medical devices such as ventilators and patient monitors, building automation HVAC transmitters, IoT devices requiring ultra-low power consumption, and fuel system monitoring for transport applications. Its durable construction and precise sensing capabilities make it suitable for pneumatic control systems, ensuring reliable operation across demanding industrial conditions.

Fast 7.5 millisecond response time. Operating temperature from -40°C to +110°C for harsh environments. Calibrated and temperature-compensated onboard ASIC. Polyamide material for wet media compatibility. 24-bit digital and ratiometric analog outputs.

ISO 9001 certified and RoHS compliant. Gel coating protection against condensation and non-corrosive liquids. Used in medical, HVAC, IoT, and transport fuel monitoring applications. Supports ultra-low power operation with duty cycling.

This sensor is categorized under Pneumatic Pressure Sensors within Hydraulic & Pneumatic Tools. Explore more products within this category at EnvMart for your industrial measurement needs.
