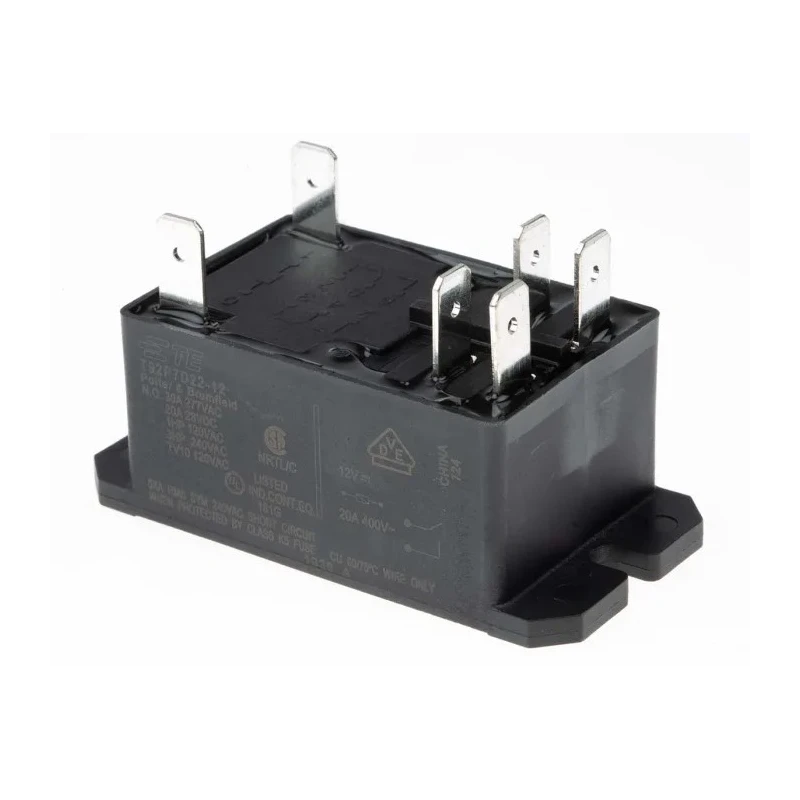

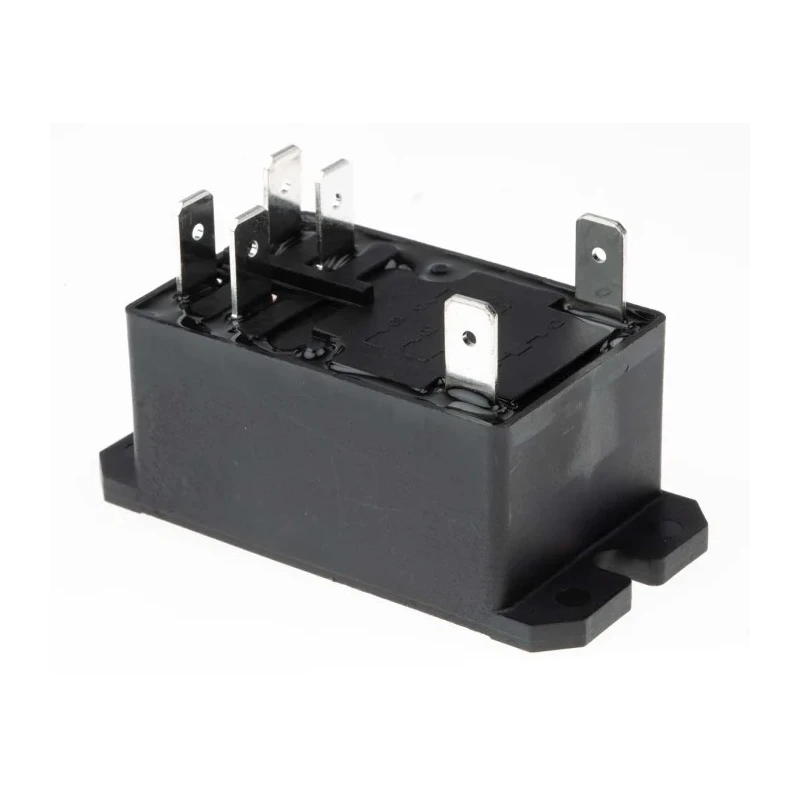

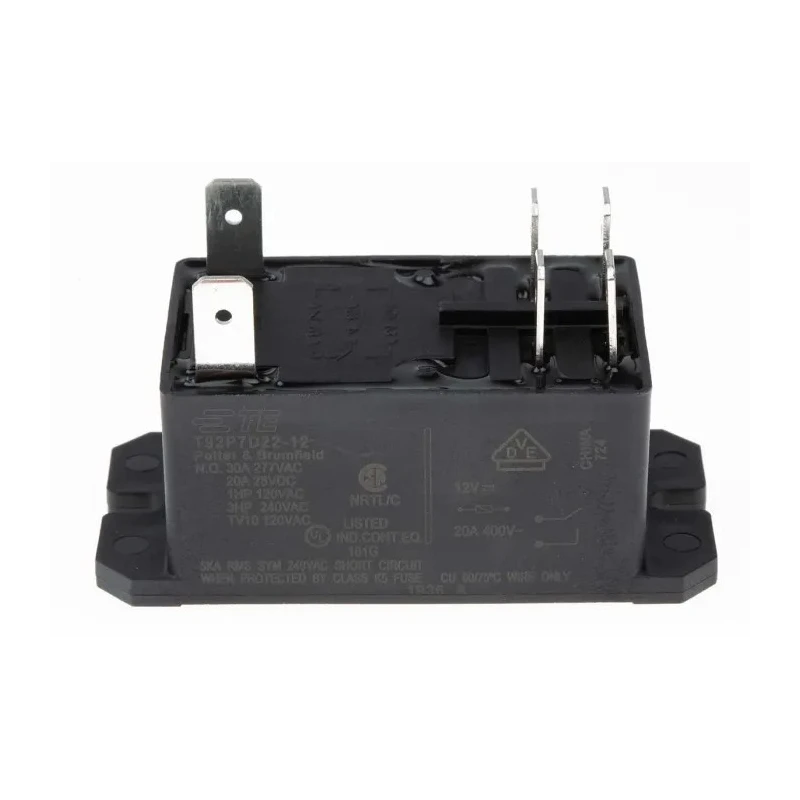

TE Connectivity Flange Power Relay 12V DC Coil 30A Switching Current DPST T92P7D22-12 6-1393211-9
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 38mm |
| Length | 68.6mm |
| Model | T92P7D22-12 6-1393211-9 |
| Width | 34.5mm |
| Mount Type | Flange |
| Contact Material | Silver Alloy |
| Series | T92 |
| Maximum Operating Temperature | 85°C |

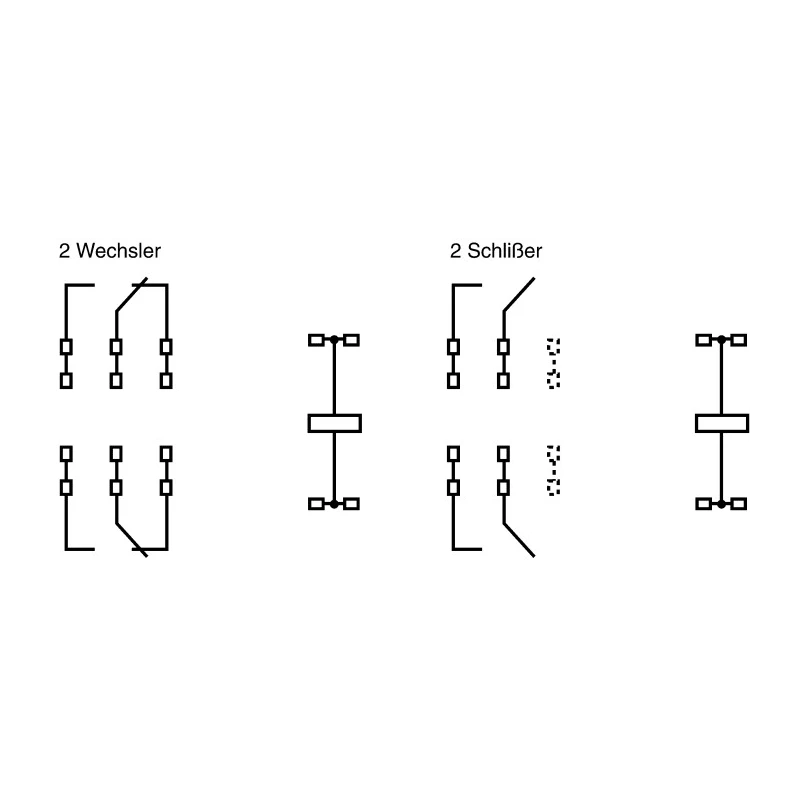

| Contact Configuration | DPST |
| Minimum Operating Temperature | -55°C |
| Switching Current | 30A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| Coil Resistance | 86Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 600V ac |
| Coil Power | 1.7W |
Key Features
- Features a flange mount type for secure panel installation.
- Utilizes silver alloy contact material for reliable conductivity.
- Coil resistance is 86 ohms, ensuring efficient operation.
- Quick connect terminal type for easy wiring and maintenance.
- Operates between -55°C and 85°C for wide environmental suitability.
- Supports switching AC voltage up to 600V AC.
- Coil power consumption rated at 1.7 watts for energy-efficient performance.
Product Description
TE Connectivity T92P7D22-12 6-1393211-9 flange power relay provides a robust solution for controlling high current electrical loads with a 12V DC coil and 30A switching current capacity. The DPST contact configuration supports versatile electrical switching needs in industrial and automation applications.
This relay is designed for panel mounting with a flange type mount that ensures secure fixing in control panels and equipment. The contacts are made from silver alloy, delivering excellent conductivity and durability under electrical stress. Its coil resistance of 86 ohms and low coil power consumption of 1.7 watts ensure efficient energy use.
With quick connect terminals, the relay allows for easy installation and maintenance, minimizing downtime in industrial settings. It operates effectively within an ambient temperature range of -55°C to 85°C, suitable for harsh environmental conditions often encountered in manufacturing, HVAC, and commercial electrical systems.
The relay supports switching AC voltages up to 600V AC, making it applicable for a wide range of power relays and electrical switching applications. Features a flange mount for reliable panel installation. High-quality silver alloy contact material for durable electric performance.
Efficient coil with 86Ω resistance and 1.7W power consumption. Quick connect terminals facilitate rapid connection and service. Wide operating temperature range for diverse industrial environments. Suitable for switching up to 600V AC electrical loads.

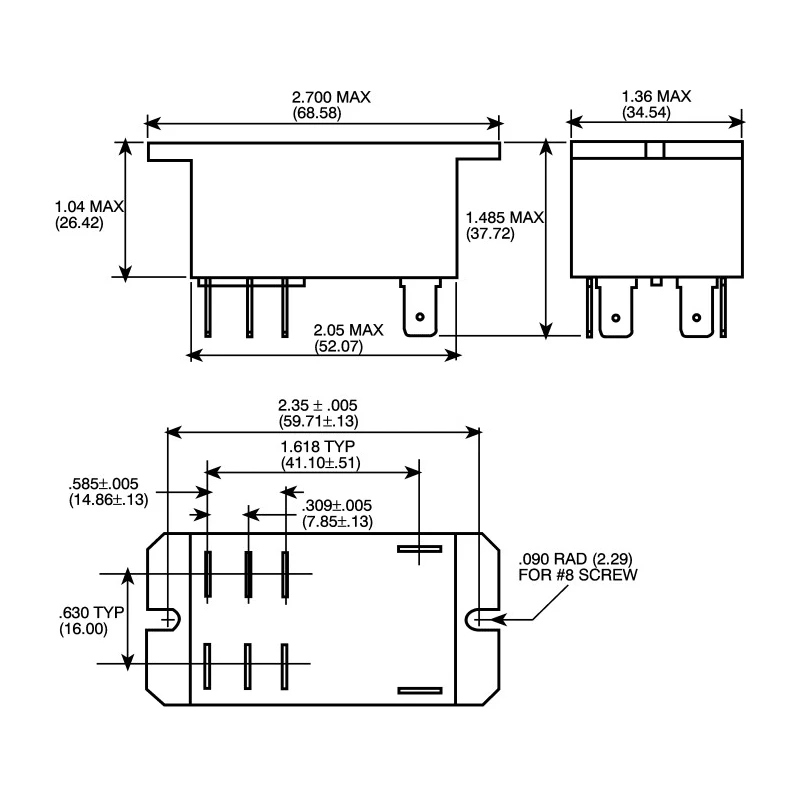

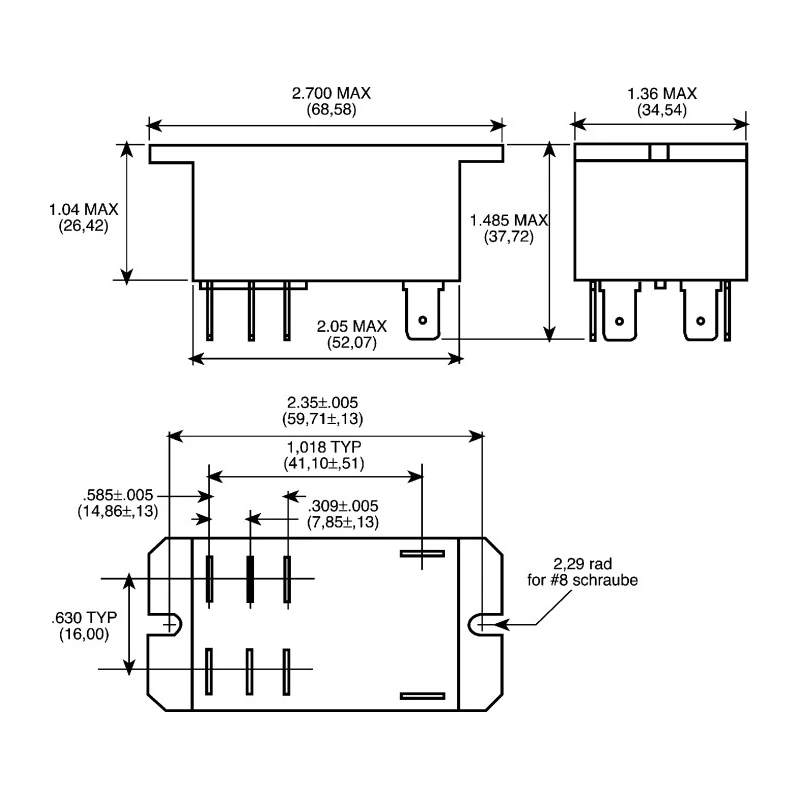

Compact form factor with 68.6mm length, 38mm height, and 34.5mm width.
This TE Connectivity power relay is intended for industrial automation systems, electrical control panels, HVAC equipment, manufacturing machinery, and other heavy-duty electrical applications requiring accurate and reliable switching components.
Explore more Power Relays and electrical components in the Electronics & Electricals category at EnvMart to find reliable solutions for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 30A, making it suitable for controlling high current electrical loads.
The coil voltage for this model is 12V DC, which is necessary for its operation.
It operates effectively within a temperature range of -55°C to 85°C, making it suitable for various environmental conditions.
This relay features a flange mount type, ensuring secure installation in control panels and equipment.
The coil resistance is 86 ohms, which contributes to its efficient operation.
The contacts are made from silver alloy, providing reliable conductivity and durability under electrical stress.
This relay supports switching AC voltages up to 600V AC, suitable for various electrical applications.
It features quick connect terminals, allowing for easy wiring and maintenance.
The coil power consumption is rated at 1.7 watts, ensuring energy-efficient performance.
This model is RoHS compliant, indicating it meets specific environmental standards.
It is intended for use in industrial automation systems, electrical control panels, HVAC equipment, and manufacturing machinery.
