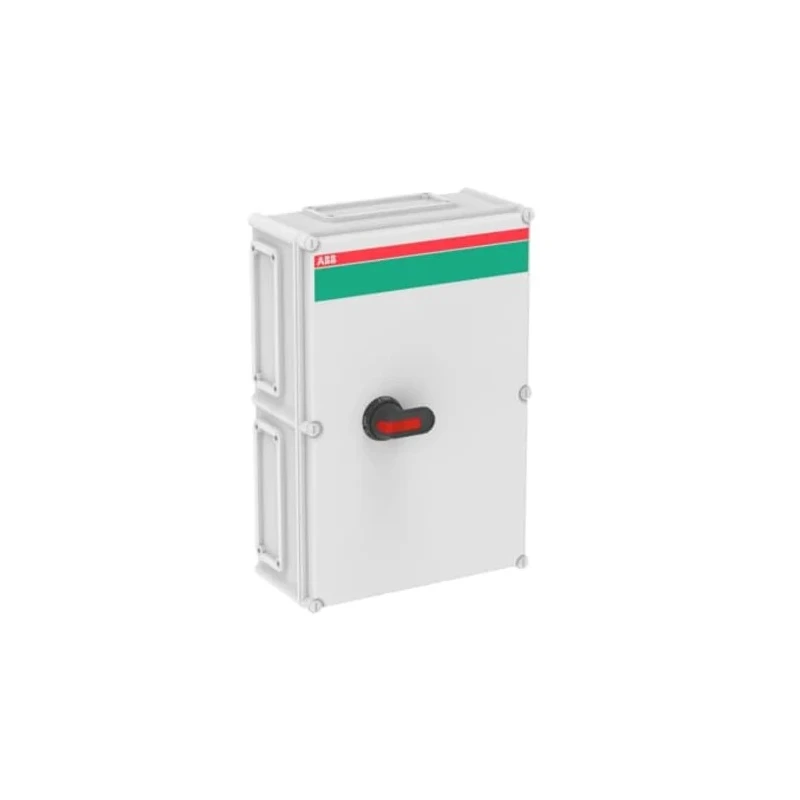

ABB 3-Pole DIN Rail Isolator Switch Black Handle IP65, 250A, 13W OT Series

ABB 1SCA022315R3070 is a 3-Pole DIN Rail Isolator Switch designed for industrial and commercial electrical isolation applications. Constructed from rigid glass-reinforced polycarbonate, the OT series enclosure is UV protected and rated IP65, making it suitable for both indoor and outdoor use where protection against dust and water ingress is essential.

The switch supports a switching current rating of 250A and a switching power of 13W, capable of controlling loads up to 690V AC. It features a pistol-style black handle that is padlock compatible, allowing up to three padlocks for enhanced safety during maintenance or outages. The cover is interlocked with defeat capability.

Cable entries utilize knock-out types suitable for II-flanges, allowing cable installation from both top and bottom, enhancing installation flexibility. Screw clamp terminal type connections provide reliable and secure wiring points. The device incorporates auxiliary contacts for signaling or control applications.

Compliant with IEC 60947-1 standards, this isolator switch is designed to operate reliably in pollution degree 3 areas and includes N and PE terminals. Dimensions are 770mm (length) x 380mm (width) x 180mm (depth), and the product is manufactured in Finland.

This isolator switch is widely applicable in industrial automation, electrical distribution, manufacturing facilities, and commercial buildings requiring safe isolation of conductors.

This isolator switch supports a switching current of 250A to handle heavy load requirements. IP65 rated enclosure provides protection against low-pressure water jets and dust ingress for indoor and outdoor use. The rigid glass-reinforced polycarbonate enclosure is UV protected to withstand harsh environments.

It features three poles and is mountable on standard DIN rails for versatile installation. The switch includes a padlockable pistol-style black handle which supports locking with up to three padlocks. Cable entries use knock-out types suitable for II-flanges with cable insertion possible from top and bottom.

Auxiliary contacts are available to integrate control circuits. Terminal connections are screw clamp type ensuring secure wiring. Designed to comply with IEC 60947-1 standard for reliable and safe switching operation. Constructed and certified for pollution degree 3 environments with N and PE terminals included.

For comprehensive solutions in electrical isolation, explore more products in the Isolator Switch category at EnvMart.
