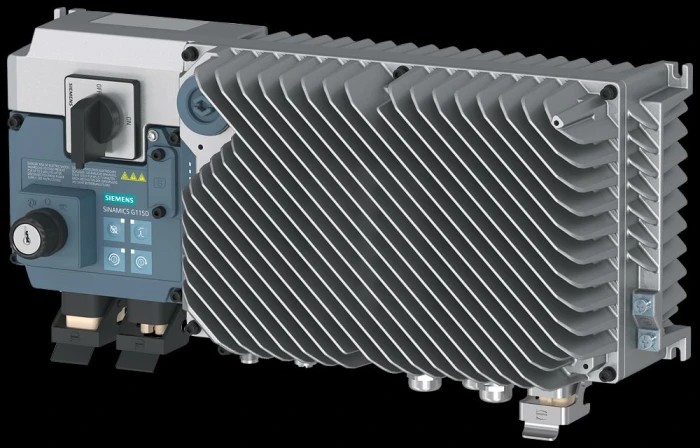

Siemens Inverter Drive, 4 kW Power, 3 Phase, SINAMICS G115D Series, 480V, 20.4 A, Wall Mount, IP65/IP66 6SL3520-0XD04-0AB0
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3520-0XD04-0AB0 |
| IP Rating | IP65, IP66 |
| Mount Type | Wall |
| Overall Length | 180mm |
| Series | SINAMICS G115D |
| Overall Width | 425mm |
| Power Rating | 4kW |
| Maximum Operating Temperature | 55°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -30°C |
| Number of Phases | 3 |
| Maximum Output Current | 20.4A |
| Standards/Approvals | CE, C-Tick (RCM), EAC, KCC, REACH, SEMI F47 |
| Maximum Supply Voltage | 480V |
| Overall Depth | 169mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- Supports supply voltages from 380V to 480V for versatile deployment.
- Maximum output current of 20.4 A enables efficient power management.
- High output frequency capability up to 550 Hz enhances control precision.
- IP65 and IP66 rated enclosure ensures protection against dust and water ingress.
- Compatible with AC motors featuring efficiency class IE2 for energy savings.
- Wall mount design allows for compact system integration and easy installation.
- Operates reliably in temperature range from -30°C to 55°C, suitable for harsh environments.
- Certified to CE, C-Tick (RCM), EAC, KCC, REACH, and SEMI F47 standards.
Product Description
Siemens 6SL3520-0XD04-0AB0 is a wall-mounted inverter drive from the SINAMICS G115D series, delivering 4 kW of power with 3-phase input supporting up to 20.4 A output current. It operates on supply voltages between 380V and 480V and achieves output frequencies up to 550 Hz, enabling sophisticated control of AC motors with efficiency class IE2.
This inverter drive is designed to meet the rigorous demands of industrial applications such as horizontal conveyor systems, providing both speed control and encoderless vector control options. With IP65 and IP66 protection ratings and UL type 4X certification, it offers robust protection against dust and water, making it suitable for harsh operational environments.
The compact wall-mounted design simplifies installation, cabling, and commissioning processes. Its temperature tolerance ranging from -30°C to 55°C ensures stable performance in varied climates. Compliance with multiple international standards including CE, C-Tick, EAC, KCC, REACH, and SEMI F47 promotes environmental and safety assurance.
This inverter drive is ideal for manufacturing, automation, material handling, and other industrial sectors requiring reliable motor control and energy-efficient operation. As a Better World product, it supports energy savings and sustainability goals.
Supports supply voltages from 380V to 480V for versatile deployment. Maximum output current of 20.4 A enables efficient power management. High output frequency capability up to 550 Hz enhances control precision. IP65 and IP66 rated enclosure ensures protection against dust and water ingress.
Compatible with AC motors featuring efficiency class IE2 for energy savings. Wall mount design allows for compact system integration and easy installation. Operates reliably in temperature range from -30°C to 55°C, suitable for harsh environments.
Certified to CE, C-Tick (RCM), EAC, KCC, REACH, and SEMI F47 standards. Explore our range of Siemens Inverter Drives and other automation components to optimize your industrial systems and improve operational efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This inverter drive has a power rating of 4 kW.
The maximum output current is 20.4 A.
It supports supply voltages from 380V to 480V.
The maximum output frequency capability is up to 550 Hz.
It is compatible with AC motors featuring efficiency class IE2.
The overall dimensions are 180 mm in length, 425 mm in width, and 169 mm in depth.
It operates reliably in a temperature range from -30°C to 55°C.
It has an IP rating of IP65 and IP66, providing protection against dust and water ingress.
It is certified to CE, C-Tick (RCM), EAC, KCC, REACH, and SEMI F47 standards.
It features a wall mount design for compact system integration and easy installation.
This model belongs to the SINAMICS G115D series.
It is designed to save energy, contributing to sustainability goals.
