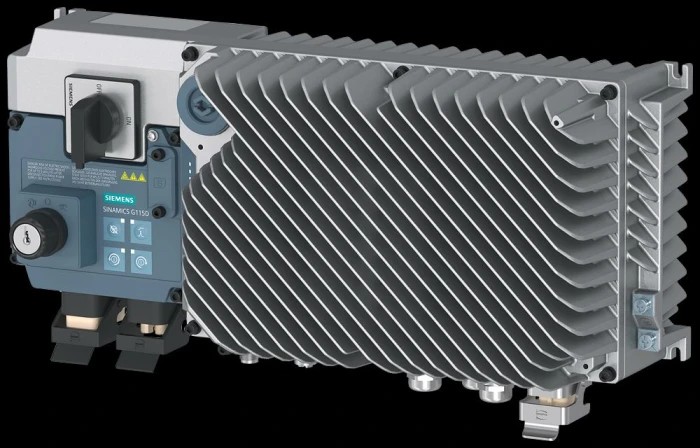

Siemens 3 Phase SINAMICS G115D Wall Mounted Inverter Drive 2.2 kW 480V 11.8 A 6SL3520-0XD02-2AB0
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3520-0XD02-2AB0 |
| IP Rating | IP66, IP65 |
| Mount Type | Wall |
| Overall Length | 180mm |
| Series | SINAMICS G115D |
| Overall Width | 425mm |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 55°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -30°C |
| Number of Phases | 3 |
| Maximum Output Current | 11.8A |
| Standards/Approvals | REACH, SEMI F47, CE, C-Tick (RCM), EAC, KCC |
| Maximum Supply Voltage | 480V |
| Overall Depth | 134mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- Wall mount type for streamlined installation and easy access.
- IP65 and IP66 rated for protection against dust and water ingress.
- Compatible with AC motors and supports SIMOGEAR geared motors.
- Supports operating temperatures from -30°C to 55°C for diverse environments.
- Natural convection cooling ensures efficient heat dissipation without fans.
- Provides output frequency up to 550 Hz for precise motor control.
- Complies with multiple standards including REACH, SEMI F47, CE, C-Tick, EAC, and KCC.
- Designed for conveyor system applications with encoderless vector control capabilities.
Product Description
Siemens 6SL3520-0XD02-2AB0 is a 3 Phase SINAMICS G115D Series Wall Mounted Inverter Drive delivering a power rating of 2.2 kW and operating at 480V with a maximum output current of 11.8 A. This inverter drive is a core component of the SINAMICS G115D distributed drive system, designed for industrial use in conveyor systems and motor control applications.
The drive supports SIMOGEAR 2KJ8 geared motors and three-phase asynchronous AC motors with efficiency class IE2. It is engineered to meet horizontal conveyor system requirements ranging from simple speed control to advanced encoderless vector control, ensuring precise and energy-efficient motor operation.
Built with an IP65 and IP66 degree of protection and UL Type 4X certification, this drive offers robust protection against dust, water, and harsh industrial environments. It operates over a broad temperature range from -30°C to 55°C and utilizes natural convection cooling to maintain optimal thermal conditions without requiring fans.
The device supports output frequencies up to 550 Hz, facilitating variable speed control of motors. Additionally, it includes RFI suppression filters compliant with Category C2, minimizing electromagnetic disturbances in installation environments.
Standards complied with include REACH, SEMI F47, CE, C-Tick (RCM), EAC, and KCC, reflecting a commitment to safety, environmental regulations, and quality.
This Siemens inverter drive finds applications in industrial automation, manufacturing, HVAC systems, and conveyor system control, offering reliable performance and energy savings. The product represents a sustainable choice aligned with Siemens’ Better World claims, promoting energy efficiency.
Wall mount type for easy installation and maintenance. IP65/66 rated for protection against dust and water ingress. Compatible with SIMOGEAR geared motors and AC motors. Operating temperature range from -30°C to 55°C suits diverse environments.
Natural convection cooling supports silent and maintenance-free operation. Output frequency up to 550 Hz allows precise motor speed control. RFI suppression filter minimizes electromagnetic interference. Complies with multiple international standards ensuring quality and safety.
Suitable for conveyor systems, industrial automation, and HVAC applications. Energy-efficient IE2 compatible motor drive supporting sustainable operations.
This product is manufactured in the United Kingdom and is offered as a new unit by Siemens. Browse our extensive catalog of Inverter Drives and industrial automation products to find the right component for your manufacturing or process control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 2.2 kW.
The maximum output current is 11.8 A.
It operates within a supply voltage range of 380V to 480V.
It supports an output frequency of up to 550 Hz.
It is rated IP65 and IP66 for protection against dust and water ingress.
The operating temperature range is from -30°C to 55°C.
Yes, it is compatible with SIMOGEAR geared motors and three-phase asynchronous AC motors.
It uses natural convection cooling for efficient heat dissipation without fans.
It complies with multiple standards including REACH, SEMI F47, CE, C-Tick, EAC, and KCC.
This model is designed for wall mounting, facilitating streamlined installation and easy access.
It is designed for industrial applications such as conveyor systems and motor control.
This inverter drive is manufactured in the United Kingdom.
