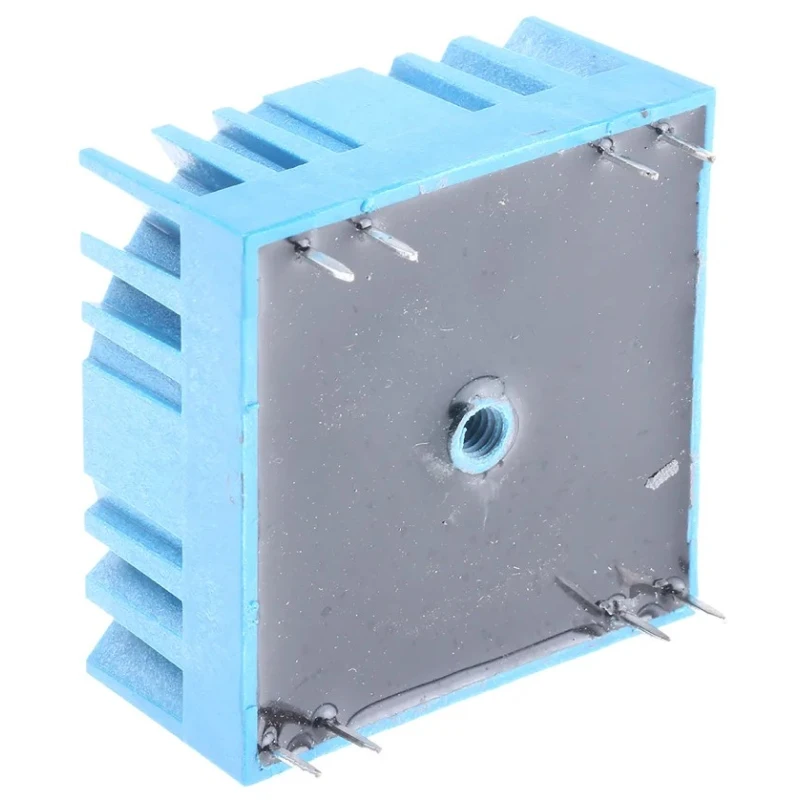

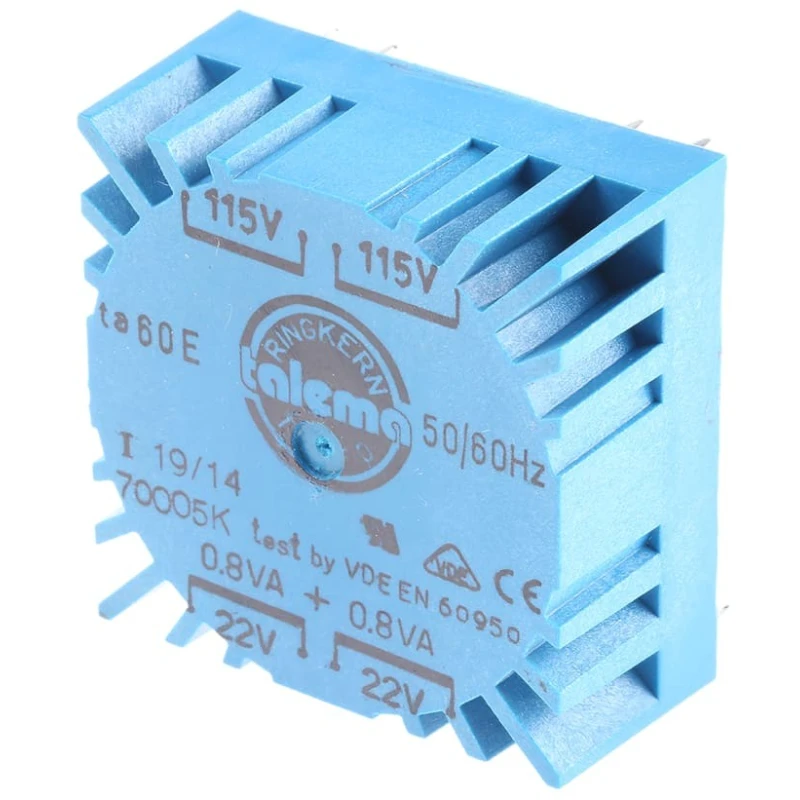

Nuvotem Talema 230 V ac 2 x 22 V ac Toroidal Transformer 2 Output 1.6 VA 50-60 Hz PCB Mount 70005K

Nuvotem Talema 70005K Toroidal Transformer is a highly efficient miniature encapsulated toroidal transformer designed for electronic component and power supply applications. It features a 230 V ac primary voltage with dual 22 V ac secondary outputs delivering a total power of 1.6 VA, suitable for low power industrial and laboratory electronics.

This transformer employs dual primary windings that can be connected in series for 230 V or in parallel for 115 V input supply flexibility. The fully encapsulated and potted toroidal core design ensures extremely low magnetic field radiation and minimal acoustic noise, making it ideal for space-constrained environments requiring low electromagnetic interference.

The 70005K model utilizes PCB mounting with pin termination, allowing easy integration into circuit boards. It supports an operating frequency range from 50 Hz to 60 Hz and a maximum operating temperature of 60°C, providing robust performance under typical industrial conditions. The toroidal center is potted for protection and durability.

Additionally, this product complies with UL and IEC safety standards ensuring reliability and compliance in demanding industrial, laboratory, HVAC, manufacturing, and commercial power distribution systems. Its compact size and low weight (82 grams) make it suitable for applications where space and noise minimization are critical.

Compact miniature toroidal transformer design with low magnetic interference. Dual primary windings configurable for 115 V or 230 V supply. Two secondary outputs delivering 2 x 22 V ac at 36 mA current. Fully encapsulated with UL94-V0 rated potted toroid center.

PCB mount type with pin termination for secure board integration. Operates within 50 Hz to 60 Hz frequency range. Maximum operating temperature rated at 60°C. Compliant with UL and IEC standards for safety and quality.

This Toroidal Transformer is ideal for demanding industrial and commercial electronic applications that require efficient step-down voltage conversion with minimal electromagnetic noise and compact design.
