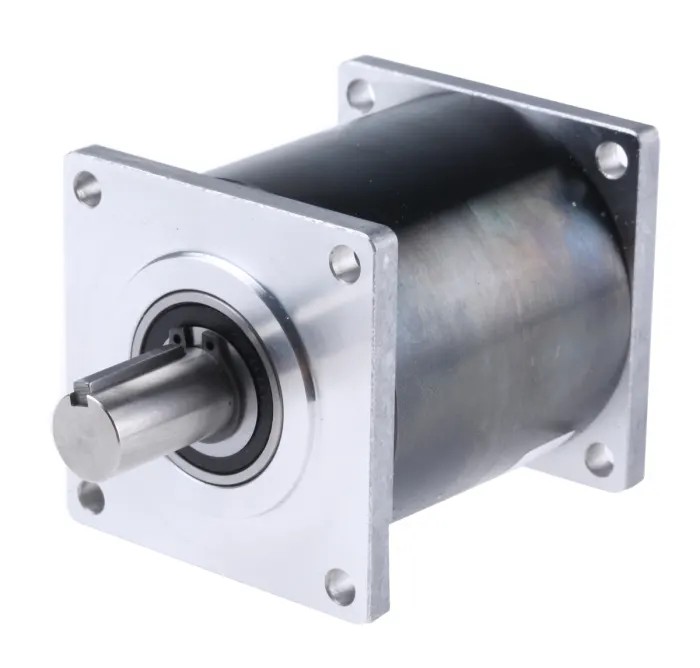

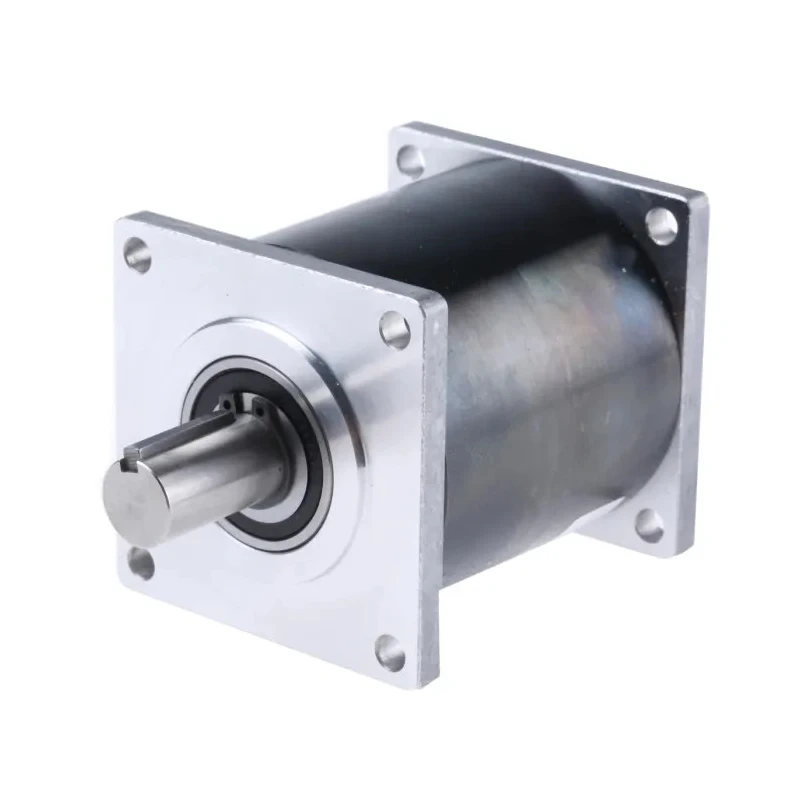

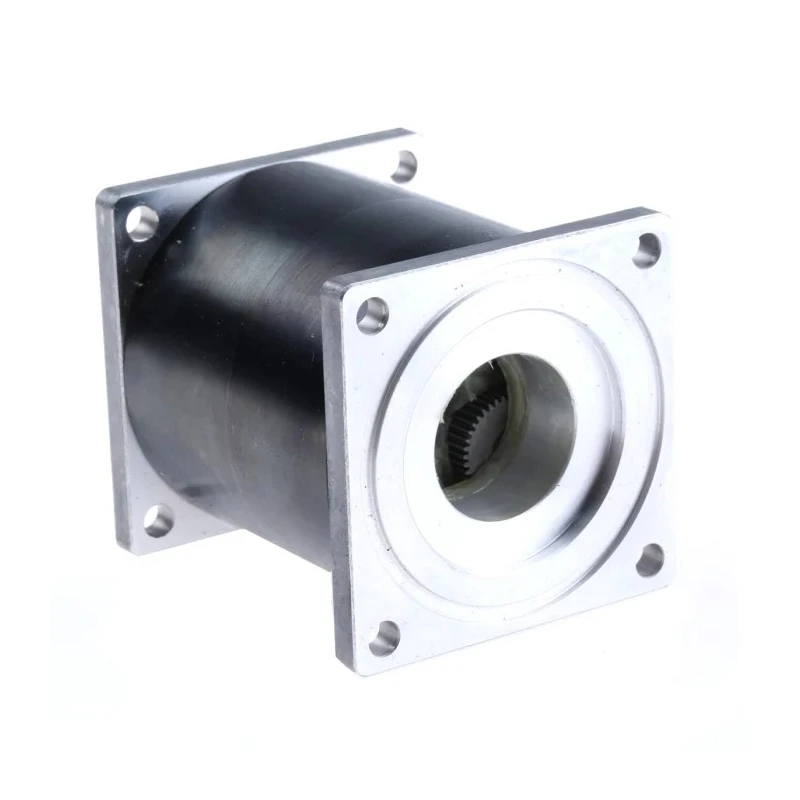

McLennan Servo Supplies Planetary Gearbox 25:1 Gear Ratio 24 Nm Maximum Torque IP57-M2-25

Free Delivery in India | Lowest Global Shipping Charges

McLennan Servo Supplies Planetary Gearbox 25:1 Gear Ratio 24 Nm Maximum Torque IP57-M2-25

Name: McLennan Servo Supplies Planetary Gearbox 25:1 Gear Ratio 24 Nm Maximum Torque IP57-M2-25
Brand: McLennan Servo Supplies
SKU: 171063
Price: 476.17 USD
Availability: InStock



Category Automation & Control Gear Brand McLennan Servo Supplies Condition New

Specifications

Country of Origin	India
Diameter	57mm
Brand	McLennan Servo Supplies
Model	IP57-M2-25
Overall Length	66mm
Series	IP
Shaft Diameter	12.69mm
Gear ratio	25:1
Gearbox Type	Planetary
Overall Depth	66.68mm
Maximum Output Torque	24Nm
De-rate ratio 10	1 (stock no. 363-6315) by 10%
25	1
SpecificationsBrandMcLennan Servo SuppliesProduct TypeGearboxGear Ratio25	1Gearbox TypePlanetaryMaximum Output Torque24NmShaft Diameter12.69mmDiameter57mmOverall Length66mmOverall Depth66.68mmStandards/ApprovalsNoSeriesIP
Gear Ratio25	1
McLennan Servo Supplies Planetary Gearbox, 25	1 Gear Ratio, 24 Nm Maximum Torque

Key Features

The planetary construction ensures high torque output in a compact design.
Compatible with NEMA size 23 motors, suitable for various automation needs.
Features reduced backlash for accurate velocity and position control.
Supplied with two pinions for versatile installation options.
Ideal for use in robotics, paper feed mechanisms, machine tools, and peripherals.
Requires fixing kits for motor attachment, ensuring secure and stable integration.
Designed for high dynamics and accurate control in industrial, process, and scientific settings.

Product Description

McLennan Servo Supplies IP57-M2-25 planetary gearbox is engineered to deliver high performance with a 25:1 gear ratio and a maximum output torque of 24 Nm. This planetary gearhead series 57 is designed for attaching to a wide range of servo and stepper motors, particularly those with a NEMA 23 frame size.

The compact planetary construction provides a high torque output while maintaining minimal backlash, essential for applications requiring precise velocity and positional control. The gearbox is supplied with two pinions, allowing flexible installation options to match various motor configurations.

Fixing kits, including fitting clamps, adaptors, and screws, are needed to securely attach the Series 57 planetary gearheads to motors. These gearboxes excel in industrial automation environments such as robotics, paper feed mechanisms, teletype printers, small machine tools, computer peripherals, and X-Y plotters.

Stepper motors compatible with this gearbox operate with a 1.8° step angle (200 steps per revolution) and support high resolution through half-step modes, enhancing performance stability and speed. The gearbox design supports high dynamic operation and accurate control, suitable for scientific and process applications demanding reliable mechanical precision.

Constructed without specific standards or approvals but built with industry best practices, this gearbox is a trusted choice for professionals requiring dependable torque adapters and gear motors.

The planetary design offers a compact footprint with high output torque. NEMA 23 frame compatibility for seamless motor integration. Reduced backlash enhances positional and velocity accuracy. Supplied with two pinions to fit diverse motor shafts.

Requires fixing kits for secure mounting to motors. Ideal for robotics, machine tools, and automation control systems. Supports high-performance stepper motor operation with precise control. Explore more products in Automation & Control Gear at EnvMart for your industrial automation and control solutions.
