RS PRO Thermocouple Panel for Use with Temperature Sensor IEC RoHS Compliant Standard 362-9783

RS PRO 362-9783 Thermocouple Panel is an accessory designed specifically for temperature sensors. This product complies with IEC standards and RoHS regulations, making it suitable for robust industrial and laboratory environments where precise temperature monitoring is crucial.

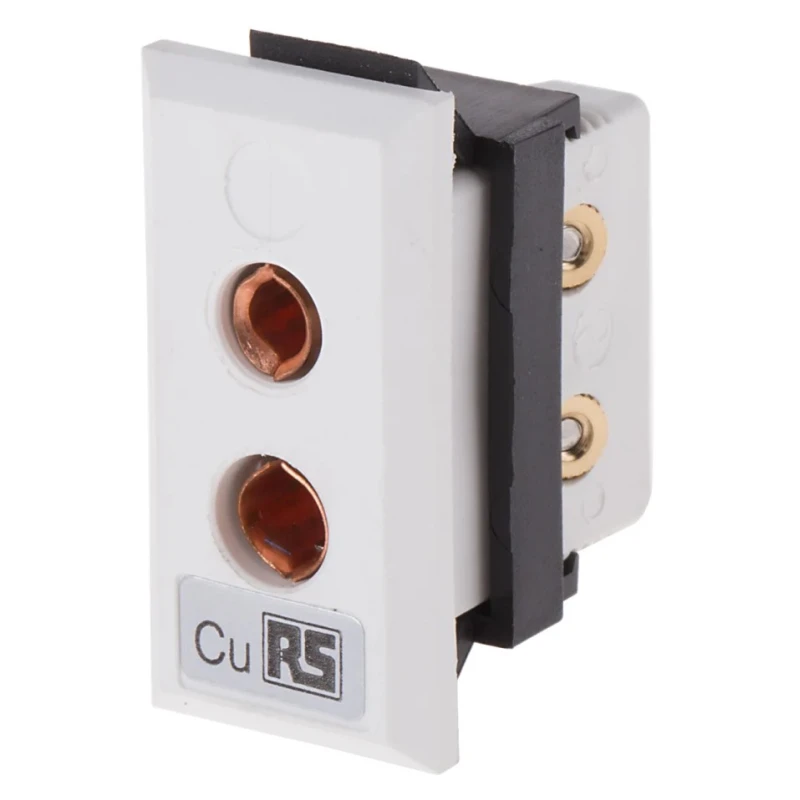

The connector panel is color-coded in accordance with IEC specifications for easy thermocouple type identification. It incorporates contacts made from true thermocouple alloys or compensating materials, preserving the integrity and accuracy of the temperature signal transmission from sensor tip to monitoring equipment.

The housing is a rugged glass-filled thermoplastic which provides durability and resistance to temperatures up to 120°C. The molded fascia allows for a flush fit upon panel mounting, enhancing installation aesthetics and ergonomics.

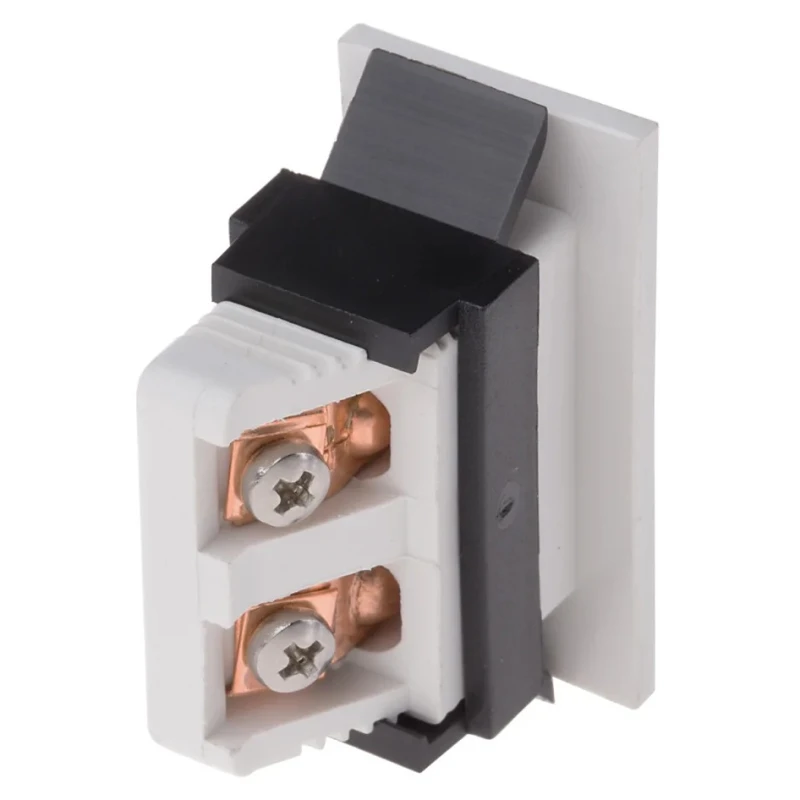

The connectors accept polarized round pin contacts which guarantee accurate connections and help prevent wiring errors. Connectivity is facilitated by captive screw clamps that provide simple, reliable fixing of thermocouple wires.

Included is a mounting clip for quick and secure attachment to the rear of the panel. These connectors are widely used in industrial settings for installing, extending, or replacing thermocouples in demanding temperature measurement applications.

Aluminium faceplates are available separately for multi-way panel configurations for enhanced customization and setup efficiency. Contacts made from true thermocouple alloys or compensating materials for accurate signal transmission.

Colour-coded housing ensures rapid thermocouple type identification per IEC standards. Moulded fascia designed for a flush fit on the front of panels. Accepts polarized round pin contacts for accurate connections. Constructed with rugged glass-filled thermoplastic, resistant up to 120°C.

Simple captive screw clamp connections allow quick assembly. Polarity and thermocouple type clearly marked on the socket housing. Supplied with mounting clip for secure panel attachment. Ideal for industrial applications requiring precise temperature measurement.

Complies with IEC and RoHS standards ensuring quality and environmental compliance.

This thermocouple panel is part of the extensive range of Sensor Accessories available at EnvMart, suitable for industrial automation, electrical control systems, laboratory instrumentation, HVAC, manufacturing, and other technical applications requiring reliable temperature sensing solutions.
