RS PRO Thermocouple Panel for Use with Type K Thermocouple RoHS Compliant IEC Standard 219-4949

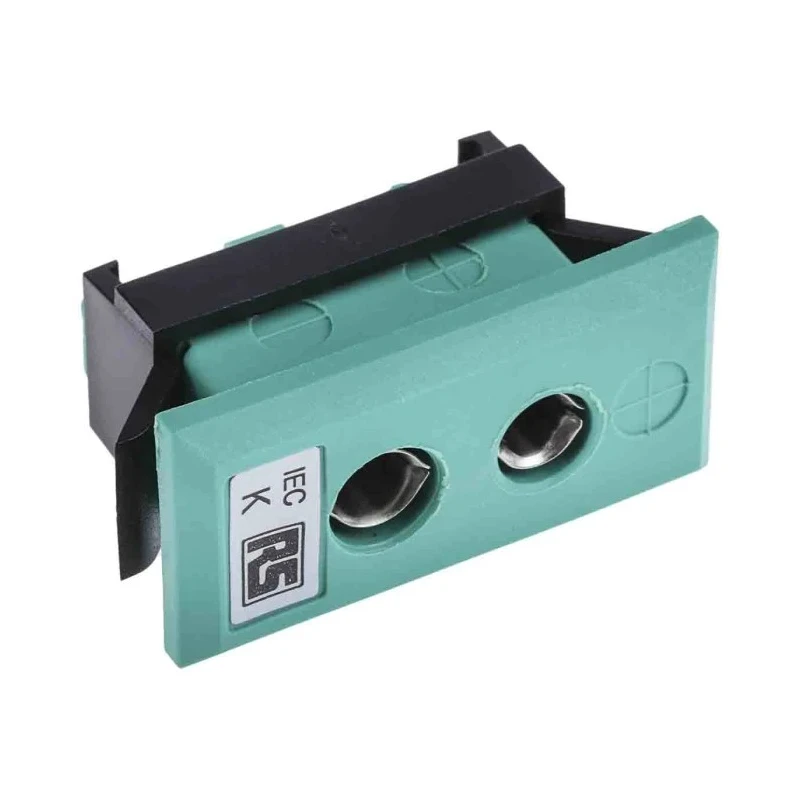

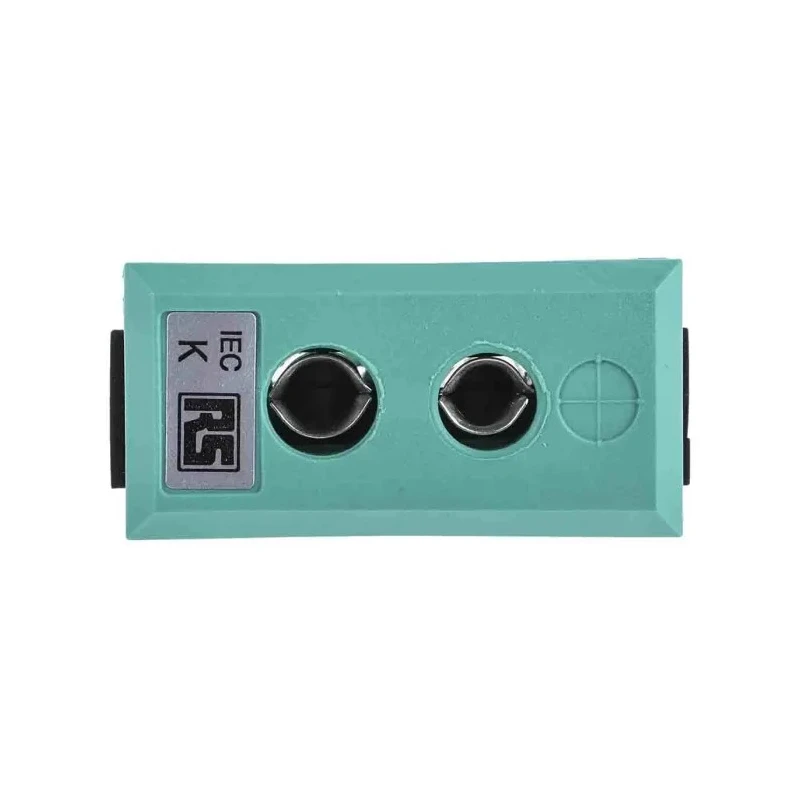

RS PRO 219-4949 Thermocouple Panel for Use with Type K Thermocouple is a RoHS compliant standard size panel mounting socket connector designed for industrial and laboratory temperature measurement systems. Constructed with a rugged glass-filled thermoplastic housing, this thermocouple panel connector is colour-coded per IEC standards for quick and error-free identification of thermocouple types. The connector features a moulded fascia enabling a flush fit when mounted through the panel, improving the overall panel aesthetics and durability.

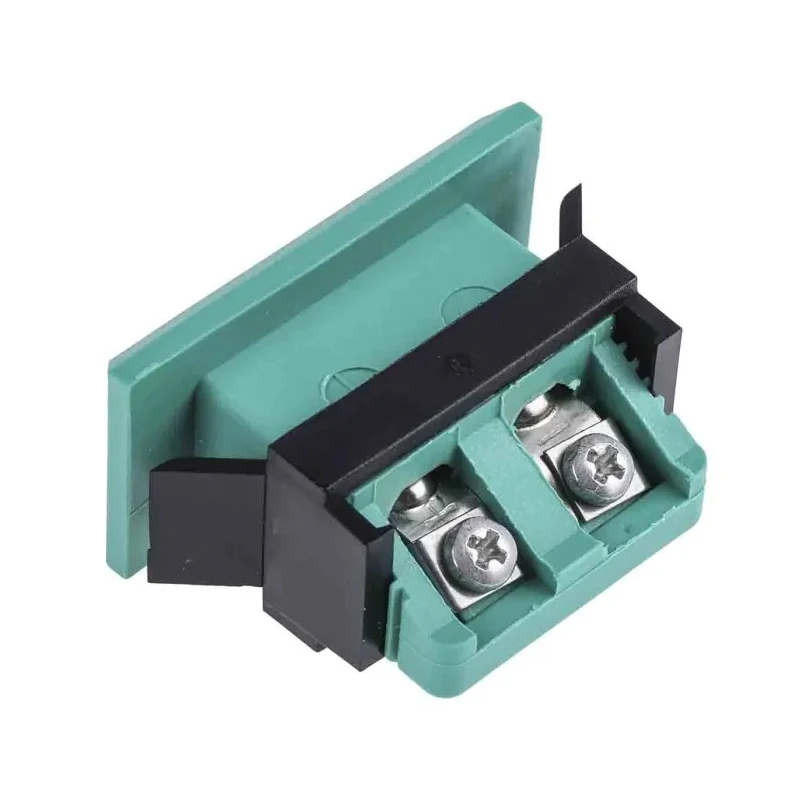

The connector contacts are made from true thermocouple alloys or compensating materials to ensure accurate and distortion-free transmission of temperature signals. Its design accepts polarized round pins to guarantee a proper connection and avoid wiring errors. Assembly is simplified with two captive screw clamps that secure the thermocouple wires efficiently.

The included clip allows the connector to be fixed swiftly and securely to the rear of the mounting panel, reducing installation time and effort. The robust construction allows continuous operation in environments with temperatures up to 120°C, making it suitable for demanding industrial settings including manufacturing plants, automation systems, and HVAC temperature monitoring.

These connectors serve as reliable interface points in thermocouple sensor chains, maintaining signal integrity from sensor tip to measurement instruments or control units. Maintaining consistent thermocouple materials across connectors prevents signal distortion and ensures precise temperature readings.

Additional aluminium faceplates stock numbers 236-4148 (1 way), 397-1731 (2 way), 397-1753 (3 way), 397-1769 (4 way), and 236-4154 (6 way) are available to customize panel assemblies as required.

Contacts made from true thermocouple alloys for accurate signal transmission. Colour-coded IEC standard for quick thermocouple identification. Moulded fascia for flush panel mounting. Polarized round pin contacts ensure accurate connection.

Rugged glass-filled thermoplastic construction. Withstands temperatures up to 120°C for industrial use. Captive screw clamps for secure and simple wiring. Polarity and thermocouple type clearly marked on housing. Retaining clip included for quick panel mounting.

Compatible with aluminium faceplates for panel customization.

This product is suitable for use in industrial, laboratory, automation, and manufacturing environments requiring reliable thermocouple connections. It meets RoHS compliance and IEC standards, underscoring its quality and safety certifications. Browse RS PRO connectors and sensor accessories at EnvMart for a comprehensive selection of high-quality industrial components.
