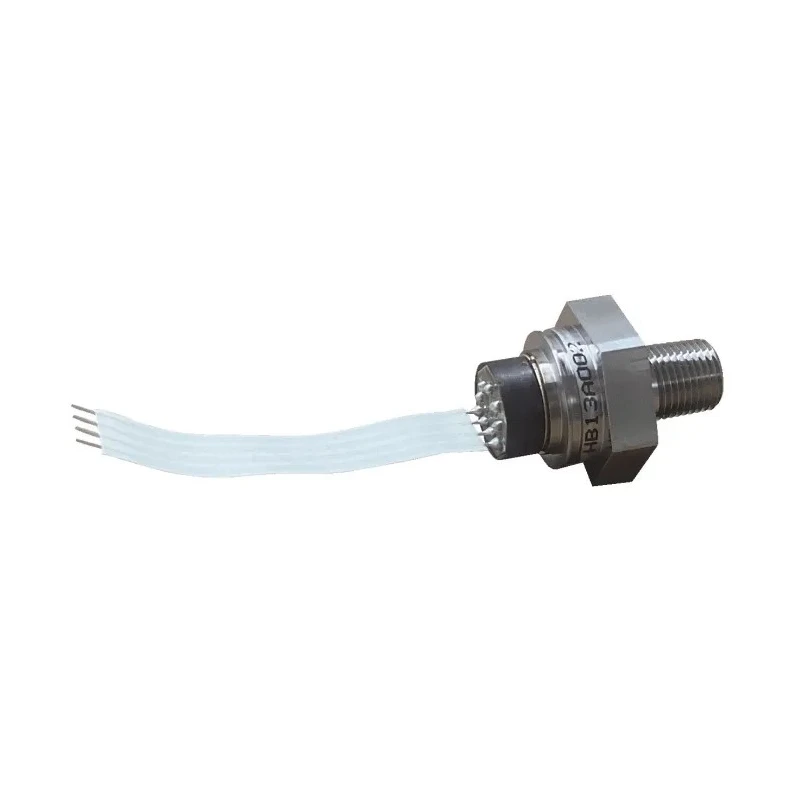

Amphenol Advanced Sensors NPI-19 Series Pressure Sensor, Digital Output, Gauge Reading 0 psi to 100 psi NPI-19M-100G2

Amphenol Advanced Sensors NPI-19M-100G2 is a pressure sensor designed to provide precise digital output with gauge pressure measurement ranging from 0 psi up to 100 psi. It is engineered for industrial, HVAC, manufacturing, and laboratory applications requiring reliable pressure monitoring in hostile environments.

This sensor delivers exceptional sensitivity, linearity, and low hysteresis performance due to its silicon sensor element combined with advanced SenStable® processing technology. It outputs data through a 14-bit I2C digital interface, allowing seamless integration with automation or control systems. The sensor body utilizes durable stainless steel housing with threaded M12 x 1.5 process fittings for secure mounting and connections.

Key electrical specifications include a supply voltage range of 2.5 to 5.5 volts and a current consumption of approximately 3 mA. It conforms to RoHS standards, ensuring environmental compliance. The sensor withstands overpressure conditions at 2 times maximum and burst pressures at 3 times rated, providing rugged protection and long-term measurement stability of ±0.5% span per year under typical conditions.

The operating temperature spans from -40°C to 125°C, making it suitable across diverse industrial environments. It accurately measures media pressure in both gases and liquids with an accuracy of ±0.25% full scale output (BFSL) and total error band of ±1% FSO. Typical applications include hydraulic and pneumatic pressure monitoring, automation systems, lab instrumentation, and process control.

Set the NPI-19M-100G2 Pressure Sensor as an essential component for high precision and robust pressure sensing needs. Its combination of stainless steel construction, digital output, and environmental tolerance meets demanding industrial requirements.

Designed for hostile environments with outstanding sensitivity and linearity. Employs SenStable® processing technology for excellent output stability. Features 14-bit I2C digital interface output. Equipped with M12 x 1.5 threaded process fittings for secure installation.

Offers ±0.25% FSO (BFSL) linearity and ±1% FSO total error band. Supports 2X overpressure and 3X burst pressure protection. Typical long-term stability of ±0.5% span per year. Operates in temperature range from -40°C to 125°C.

Constructed with stainless steel housing for robust corrosion resistance. Suitable for measuring gas and liquid media pressure accurately. Explore more sensors and pressure measurement solutions in the Electronics & Electricals Sensors category at EnvMart for industrial, laboratory, and automation applications.
