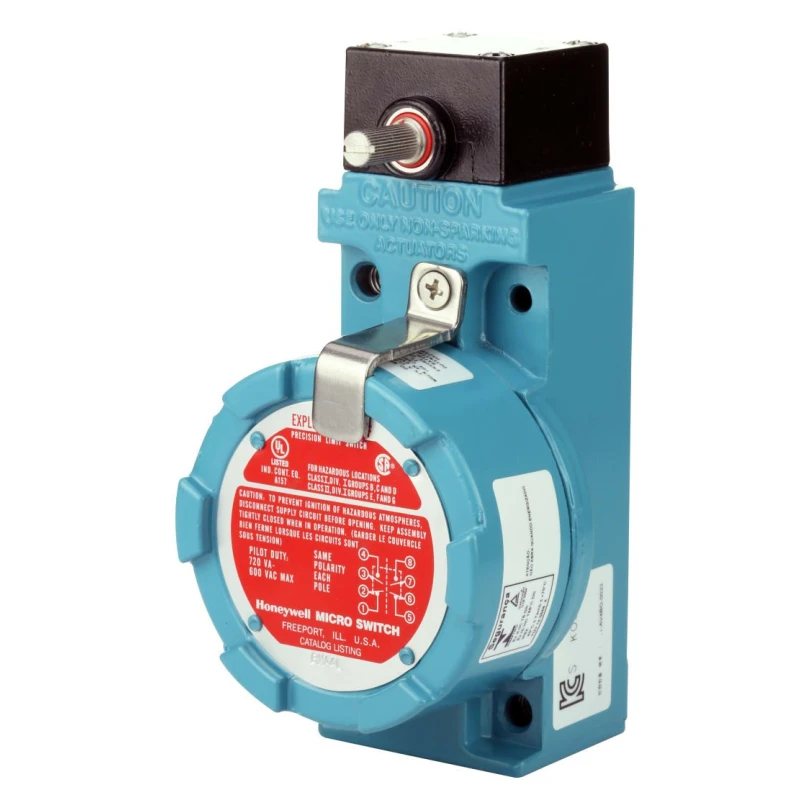

Honeywell Technologies BX Series Side Rotary Limit Switch, 2 NC/2 NO, IP67, Aluminium Housing, 600V AC, 10A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Honeywell |
| Length | 146.05mm |
| Model | IP67 |
| Depth | 73.18mm |
| IP Rating | IP67 |
| Width | 76.2mm |
| Housing Material | Aluminium |
| Series | BX |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Side |
| Contact Configuration | 2 NC/2 NO |
| Actuator Type | Side Rotary |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Screw |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | RoHS |
| Operating Force | 0.45Nm |
| Mechanical Life | 10000000Cycles |
| Switching AC Voltage | 600V ac |
| Conduit Entry | 0.75 in to 14 NPT |
Key Features
- Designed for side mounting with roller lever actuator.
- IP67 rating provides dust-tight and temporary immersion protection.
- Snap-action contacts with 2 NC and 2 NO configuration ensure reliable switching.
- Switching capacity supports high-voltage industrial applications.
- Durable aluminium housing reduces weight and provides mechanical resilience.
- Rated for mechanical life of 10 million cycles for long-term industrial use.
- Operates within a temperature range of -40°C to 70°C.
- Screw terminals facilitate secure and straightforward wiring.
Product Description
Honeywell Technologies BXA4L side rotary limit switch is a robust industrial component designed to convert mechanical position into electrical signals using a roller lever actuator. The device features an IP67-rated aluminium enclosure that offers strong protection against dust and temporary immersion, making it suitable for harsh environments.
The switch includes 2 normally closed (NC) and 2 normally open (NO) snap-action contacts, providing precise and repeatable switching operations at 600V AC and 10A current capacity. Its mechanical endurance is rated for 10 million cycles, ensuring reliable long-term performance in demanding industrial applications.
Operating between -40°C and 70°C, the switch maintains stable function across a wide ambient temperature range. Screw terminal connections enable secure wiring and easy installation. Its side-mounted roller lever actuator aligns well for conveyor end-of-travel detection, position sensing on presses, and automated door monitoring systems.
The aluminium housing balances sturdy mechanical protection with reduced weight, enhancing durability without compromising on ease of installation. The product conforms to RoHS compliance and carries ATEX certification for use in hazardous areas, providing safety and regulatory assurance.
Designed for side mounting with roller lever actuator. IP67 rating provides dust-tight and temporary immersion protection. Snap-action contacts with 2 NC and 2 NO configuration ensure reliable switching. Switching capacity supports high-voltage industrial applications.
Durable aluminium housing reduces weight and provides mechanical resilience. Rated for mechanical life of 10 million cycles for long-term industrial use. Operates within a temperature range of -40°C to 70°C. Screw terminals facilitate secure and straightforward wiring.
Suitable for conveyor detection, motor control panels, and safety interlocks. Complies with RoHS standards and certified for ATEX hazardous areas.
This limit switch is ideal for industrial automation, manufacturing conveyors, motor controls, packaging lines, and safety interlock systems. Explore more high-quality Limit Switches and automation products on EnvMart for diverse industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a switching capacity of 600V AC and 10A current.
It operates within a temperature range of -40°C to 70°C.
This model features a side rotary actuator type.
The switch is rated for a mechanical life of 10 million cycles.
It has an IP67 rating, providing dust-tight and temporary immersion protection.
It includes 2 normally closed (NC) and 2 normally open (NO) snap-action contacts.
The housing is made of aluminium, which provides mechanical resilience and reduces weight.
Wiring is facilitated through screw terminals, ensuring secure connections.
It complies with RoHS standards and is certified for use in hazardous areas under ATEX.
The dimensions are 146.05mm in length, 76.2mm in width, and 73.18mm in depth.
It is suitable for applications such as conveyor detection, motor controls, and safety interlock systems.
The operating force required is 0.45Nm.
