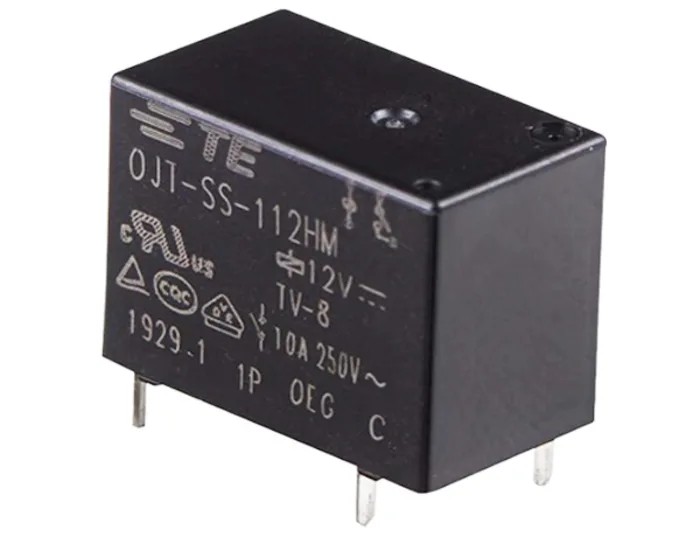

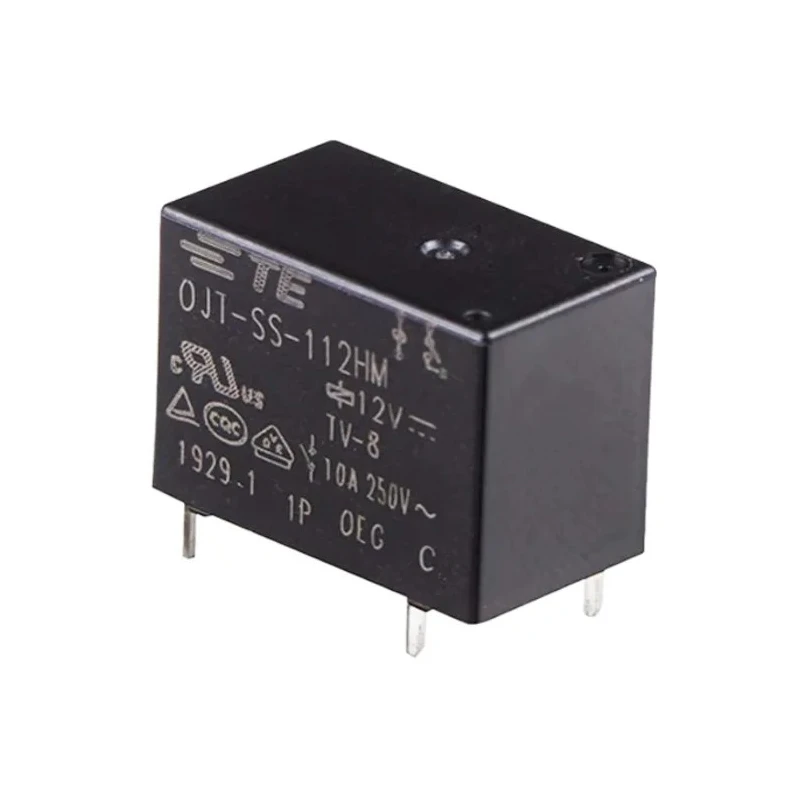

TE Connectivity Non-Latching PCB Relay, 12V DC Coil, 10A Switching Current, SPST, Model 2071507-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 14.8mm |
| Length | 18.2mm |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide |
| Series | OJT |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | IEC 62368-1, REACH, RoHS |
| Coil Resistance | 320Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 450mW |
| Switching Power | 450mW |
Key Features
- Compact dimensions measuring 18.2mm length, 14.8mm height, and 10.2mm width.
- Single Pole Single Throw (SPST) contact configuration for straightforward switching.
- High switching power capacity of 450mW and switching AC voltage of 250V AC.
- Coil resistance of 320Ω with coil power consumption of 450mW ensuring efficient operation.
- Wide operating temperature range from -30°C to 85°C suits diverse environmental conditions.
- Silver tin oxide contact material enhances durability and conductivity.
- PCB mount type with solder terminal connection facilitates easy integration.
- Conforms to IEC 62368-1, REACH, and RoHS standards.
Product Description
TE Connectivity 2071507-1 Non-Latching PCB Relay features a robust 12V DC coil and a 10A current rating making it ideal for power control in industrial, automation, and consumer electronic applications. Its compact size with dimensions 18.2mm (L) x 14.8mm (H) x 10.2mm (W) enables integration into confined PCB layouts.
The relay utilizes a SPST contact configuration with silver tin oxide contacts providing reliable switching with a maximum switching power of 450mW and AC voltage rating of 250V. With coil resistance of 320Ω and coil power of 450mW, it ensures low power consumption during activation.
Designed for PCB mounting with solder terminals, this OJT series relay supports operating temperatures from -30°C up to 85°C, suitable for harsh industrial environments. Compliance with IEC 62368-1, REACH, and RoHS certifications guarantees adherence to international safety and environmental standards.
This relay is commonly applied in washing machines, refrigeration units, cooking equipment, power supply control circuits, and other industrial control systems demanding a compact, high-performance switching solution.
The product is manufactured in China, maintaining high-quality standards expected by electronics professionals. Compact dimensions measuring 18.2mm length, 14.8mm height, and 10.2mm width. Single Pole Single Throw (SPST) contact configuration for straightforward switching.
High switching power capacity of 450mW and switching AC voltage of 250V AC. Coil resistance of 320Ω with coil power consumption of 450mW ensuring efficient operation. Wide operating temperature range from -30°C to 85°C suits diverse environmental conditions.
Silver tin oxide contact material enhances durability and conductivity. PCB mount type with solder terminal connection facilitates easy integration. Conforms to IEC 62368-1, REACH, and RoHS standards. Explore the Electronics & Electricals category at EnvMart for more reliable relays and power control components by TE Connectivity and other leading manufacturers.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
It has a maximum switching current of 10A.
The relay measures 18.2mm in length, 14.8mm in height, and 10.2mm in width.
This model utilizes a Single Pole Single Throw (SPST) contact configuration.
The coil resistance is 320Ω.
It can switch AC voltage up to 250V AC.
The operating temperature range is from -30°C to 85°C.
The coil power consumption is 450mW.
The contacts are made of silver tin oxide, which enhances durability and conductivity.
This relay is designed for PCB mounting with solder terminals.
It conforms to IEC 62368-1, REACH, and RoHS standards.
This relay is commonly used in washing machines, refrigeration units, cooking equipment, and power supply control circuits.
