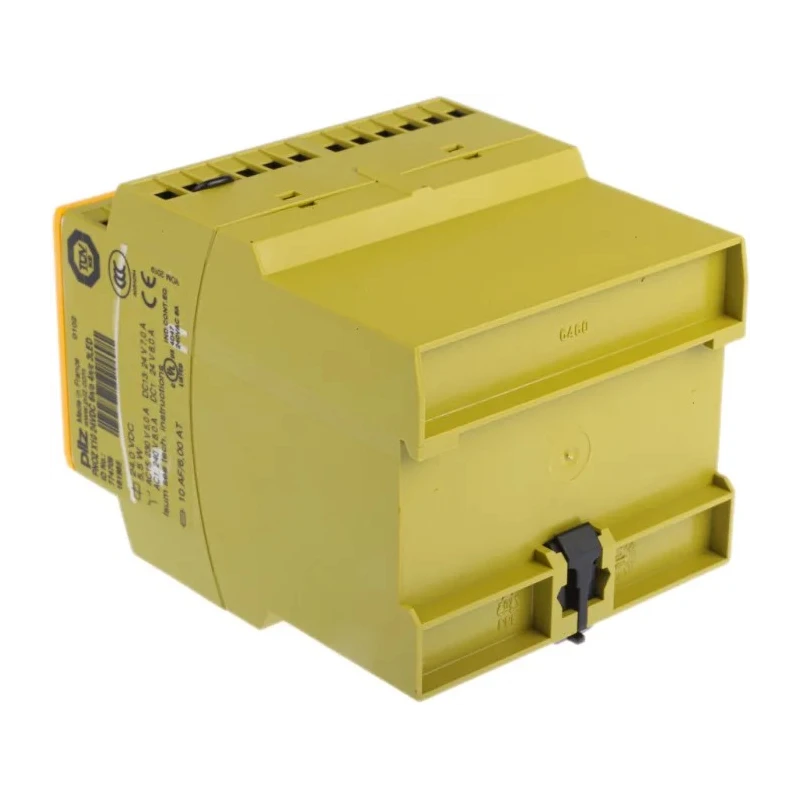

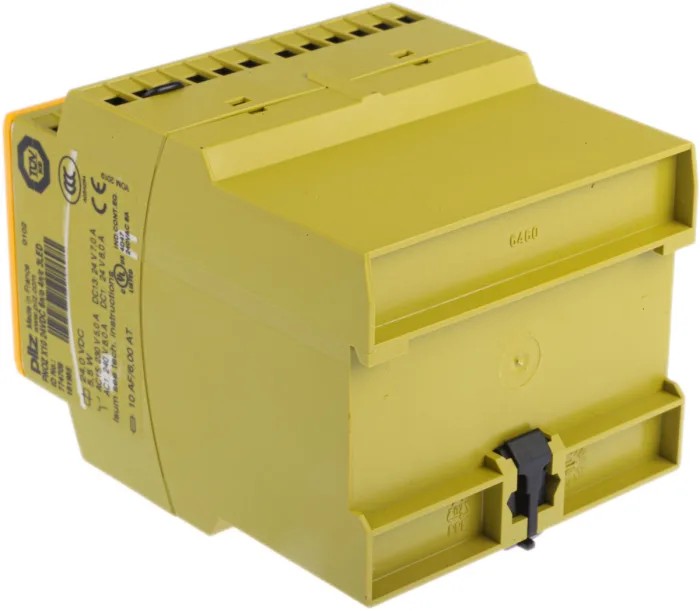

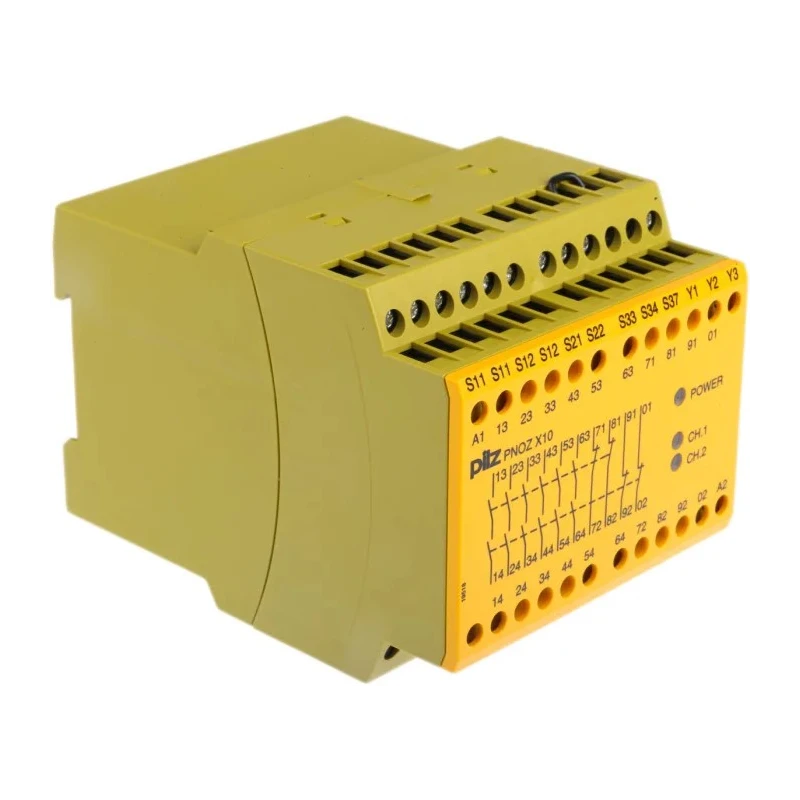

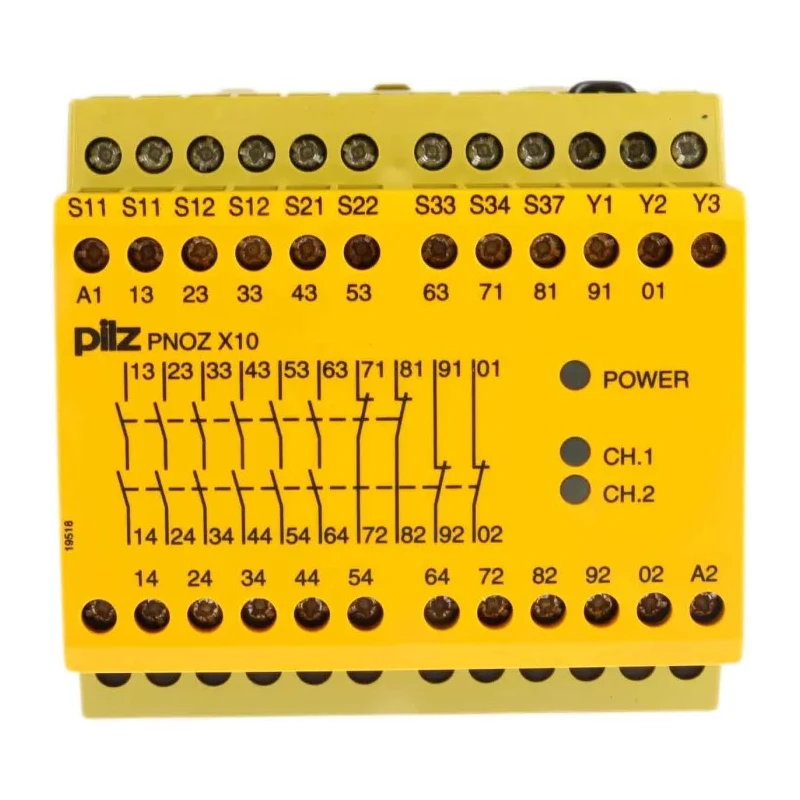

Pilz 24V DC Safety Relay with 6 Safety Contacts and 4 Auxiliary Contacts PNOZ X10 774709

Pilz 774709 PNOZ X10 is a high-quality 24V DC safety relay designed for industrial machine safety applications. It includes 6 safety contacts and 4 auxiliary contacts, enabling comprehensive monitoring and control of safety functions.

This relay is mounted on DIN rails for quick and secure installation, with LED indicators supporting visual monitoring of switching channels and power supply status. The self-monitoring circuit maintains functionality even in case of component failure, ensuring reliable operation.

The device detects short circuits across contacts including earth faults, enhancing operational safety. Safety functions conform to stringent standards such as EN 60947-5-1 and EN ISO 13849-1, providing PLe/Category 4 safety category performance.

Operating across a temperature range of -10°C to 55°C, the relay offers protection levels of IP54, IP40, and IP20 depending on installation environment. Screw terminal connections guarantee firm contacts for industrial use.

Supports dual channel operation and automatic safety cycle testing. Electronic fuse protection for short circuit proof reliability on DC supply. LEDs indicate switching status and supply voltage condition. Compact dimensions: Height 121mm, Length 87mm, Width 90mm.

Complies with multiple international standards for safety and electromagnetic compatibility. Typical applications include emergency stop buttons, safety gate limit switches, reset buttons, light barriers, and other machine safety inputs.

The Pilz brand is a leader in safety technology, and the 774709 PNOZ X10 relay is an excellent solution for ensuring compliance and protection in industrial automation and control systems.
