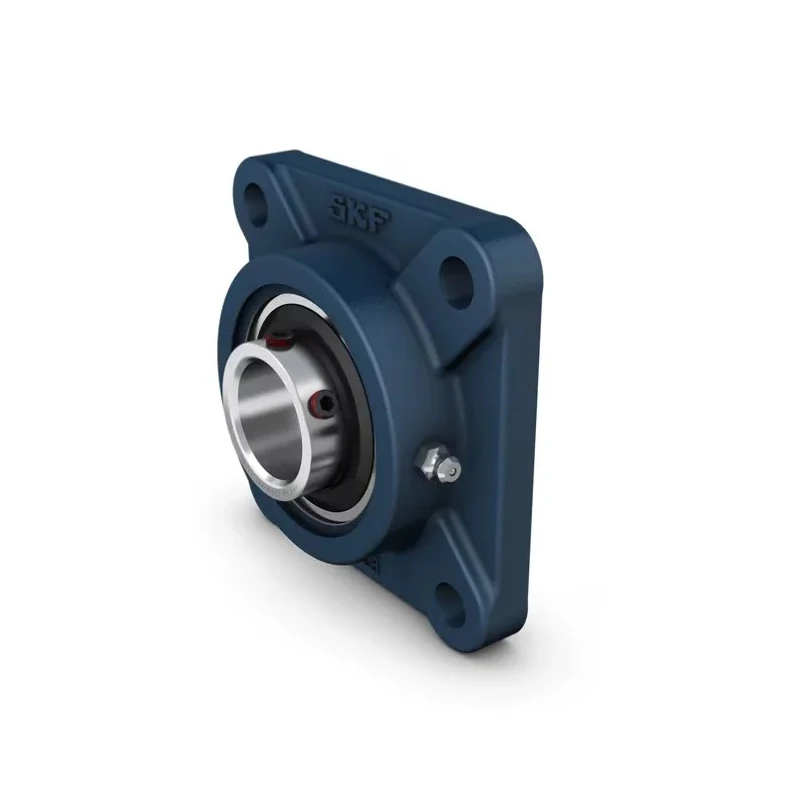

SKF 4 Hole Cylindrical Flanged Bearing Unit Steel, Set Screw Locking, 51.15 mm ID, 175x68.7x143 mm, Open End Type UCF 212-36

Free Delivery in India | Lowest Global Shipping Charges

SKF 4 Hole Cylindrical Flanged Bearing Unit Steel, Set Screw Locking, 51.15 mm ID, 175x68.7x143 mm, Open End Type UCF 212-36



Category Bearing Units Brand SKF Condition New

Specifications

Country of Origin	China
Brand	SKF
Material	Steel
Length	175mm
Model	UCF 212-36
Depth	143mm
Width	68.7mm
Series	UCF
Inside Diameter	51.15mm
Limiting Speed	2700rpm
End Type	Open
Bore Type	Cylindrical
Static Load Rating	36kN
Dynamic Load Rating	52.7kN
Mount Hole Size	19 mm
Mount Hole Centre-to-Centre	143mm
Number of Mount Holes	4
Locking Type	Set Screw

Key Features

The flanged bearing unit has four mounting holes for secure and precise installation.
It features an open end type bore with cylindrical design for efficient bearing fit.
The unit measures 175 mm length, 68.7 mm width, and 143 mm depth, suitable for various machinery applications.
Designed for heavy-duty operation with a static load rating of 36 kN and dynamic load rating of 52.7 kN.
Capable of running at limiting speeds up to 2700 rpm, ensuring efficient performance.
Its steel material provides durability under demanding industrial environments.
Manufactured in China, ensuring consistent quality standards.

Product Description

SKF UCF 212-36 is a 4 Hole Cylindrical Flanged Bearing Unit constructed from steel with a set screw locking mechanism. It features a cylindrical bore with an inside diameter of 51.15 mm, and dimensions of 175 mm length, 68.7 mm width, and 143 mm depth. The bearing unit has an open end type design suitable for robust industrial use.

This unit is engineered to handle heavy loads with a static load rating of 36 kN and a dynamic load rating of 52.7 kN, making it reliable for demanding material handling and machinery applications. The limiting speed is rated at 2700 rpm, supporting efficient rotation without compromise on durability.

Four mounting holes provide secure installation and accurate alignment, suited for applications requiring stable and long-lasting bearing performance. The steel construction ensures resistance to wear and mechanical stress, enhancing overall system longevity.

Typical applications include industrial machinery, automated systems, and equipment involved in material handling where dependable rotary bearing units are critical. Manufactured in China, this SKF bearing unit meets quality expectations for reliable operation in various mechanical, manufacturing, and industrial sectors.

The flanged bearing design facilitates easy mounting and integration into equipment. Set screw locking type secures the bearing firmly in place. Open end bore allows for straightforward assembly and maintenance. Suitable for rotary bearing and housing units demanding high load capacity.

Steel material ensures mechanical strength and durability. Four mounting holes provide installation versatility and stability. Ideal for industrial automation and material handling machines. Explore more bearing solutions in the Bearing Units category at EnvMart for comprehensive options tailored to your industrial needs.
