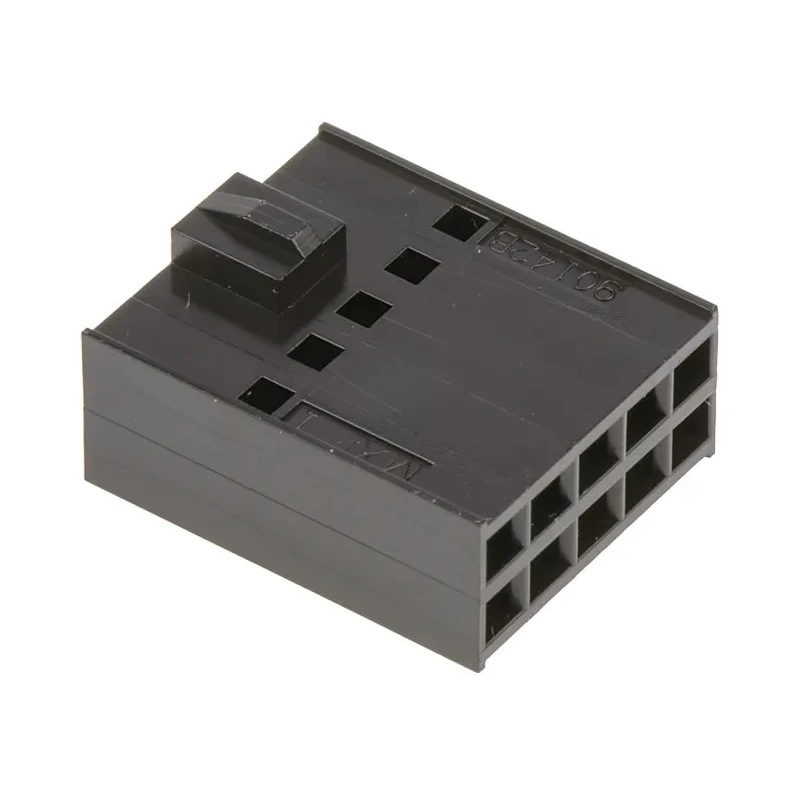

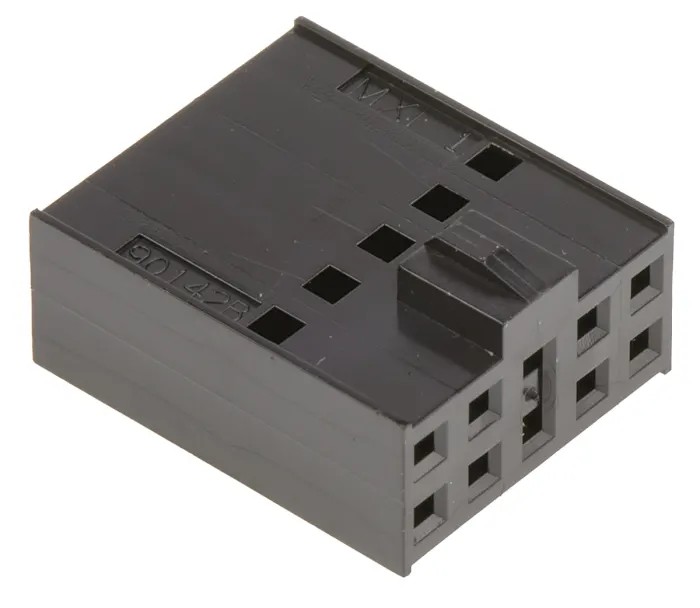

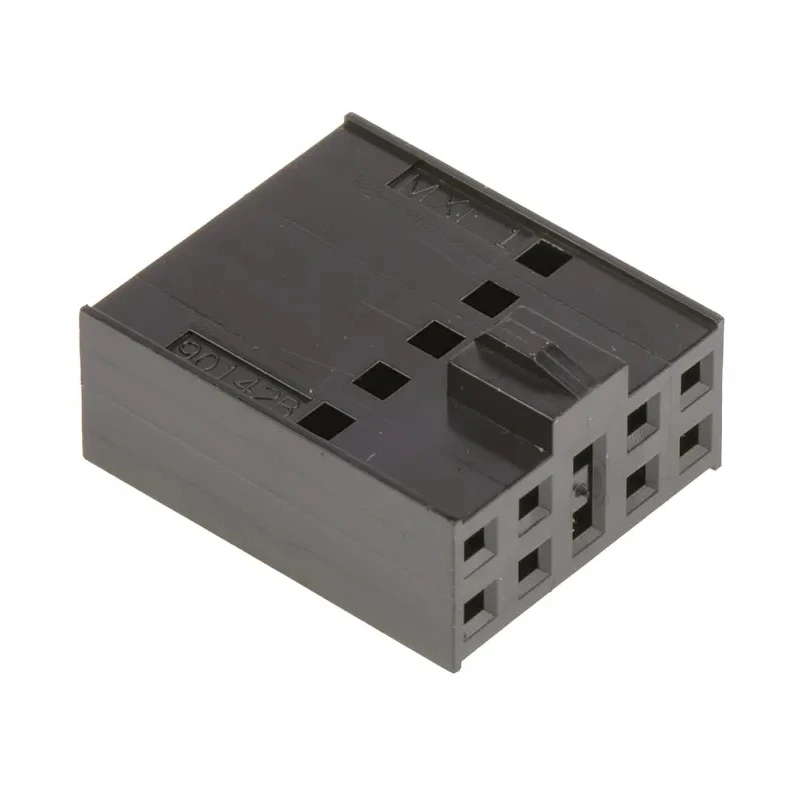

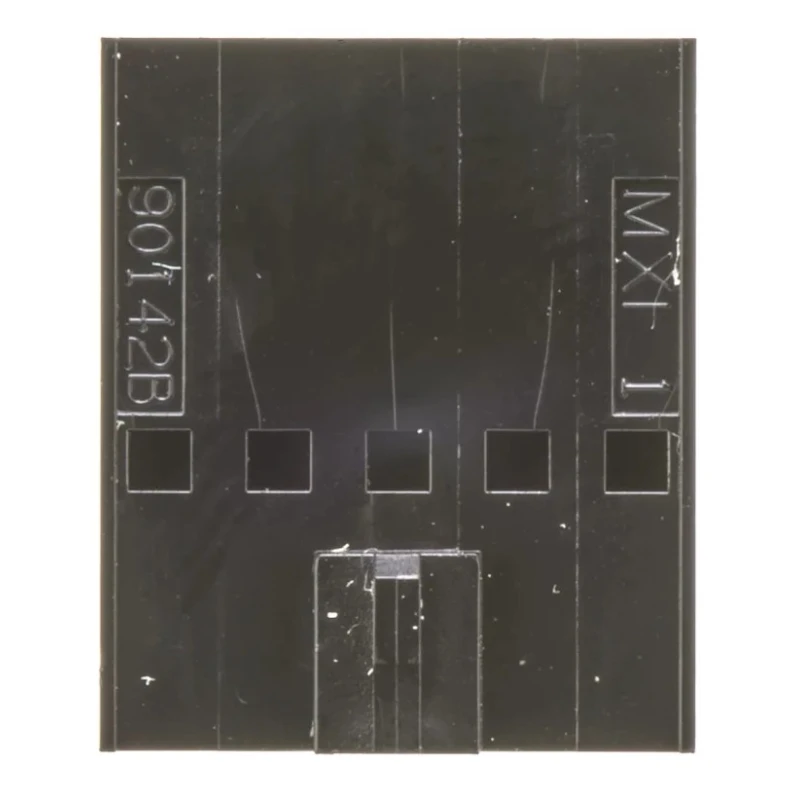

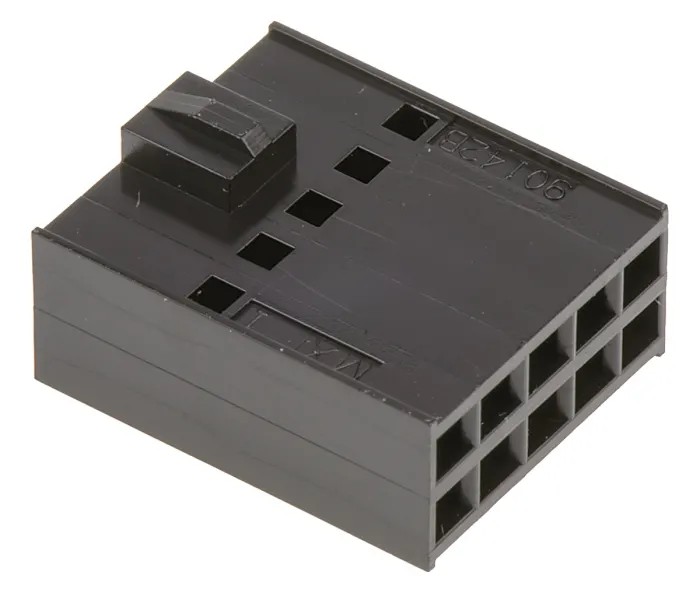

RS PRO C-Grid III Female Connector Housing 2.54 mm Pitch 10 Way 2 Row Straight 90142-0010
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Orientation | Straight |
| Length | 12.7mm |
| Width | 7.72mm |
| Mount Type | Cable |
| Housing Material | Polyphenylene Oxide |
| Series | C-Grid III |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 10 |
| Connector Gender | Female |
Key Features
- Made from polyphenylene oxide for high electrical insulation and heat resistance.
- Compact dimensions of 12.7 mm length, 7.72 mm width, and 15.24 mm depth save PCB space.
- Lightweight design weighing 0.72 grams reduces equipment strain.
- Compatible with Molex C-Grid III connector system for reliable assembly.
- Wide operating temperature range from -55°C to +105°C for harsh environments.
- Features a locking system ensuring secure cable insertion and polarised contacts prevent incorrect mating.
- Ideal for sound systems, automotive, and office equipment applications.
Product Description
The Molex 90142-0010 is a female connector housing designed within the C-Grid III series, providing a 2.54 mm pitch and featuring 10 contacts arranged in two rows. This cable mount connector is engineered using polyphenylene oxide (PPO) material which exhibits superior electrical insulation and resistance to heat distortion, ensuring reliable performance in demanding electrical applications.
Its compact physical dimensions of 12.7 mm in length, 7.72 mm in width, and 15.24 mm in depth make it suitable for PCB areas where space is limited, without compromising durability. Weighing only 0.72 grams, the housing avoids adding bulk or mechanical strain to connected equipment.
The design integrates a uniform locking system that simplifies cable installation and provides a secure connection. The fully polarised contacts guarantee precise mating and prevent damage during assembly. The Molex C-Grid III interconnection system includes modular components and various packaging options, providing design flexibility for electronic markets.
This connector housing is ideal for industrial environments requiring a wide operating temperature range of -55°C to +105°C, supporting applications in sound systems, automotive industry, and office equipment sectors.
Manufactured from polyphenylene oxide material for excellent electrical isolation and high heat resistance. Compact size optimizes PCB space usage in electronics. Lightweight and robust construction prevents mechanical stress.
Locking mechanism ensures secure cable housing and prevents misconnection. Compatible with Molex C-Grid III connector series for modular use. Wide temperature tolerance suitable for harsh industrial conditions. Highly resistant to moisture and dust ingress protecting connections from weathering.
This product is an essential component for industrial, automotive, electronic manufacturing, and laboratory equipment assembly requiring reliable wire-to-PCB connections. Its compliance with DIN 41651 and HE13/14 standards underlines its quality and reliability.
EnvMart users can browse the Electronics & Electricals category for similar Connector Housing products and related Molex connector components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 2.54 mm pitch and includes 10 contacts arranged in two rows.
It is constructed from polyphenylene oxide, which provides high electrical insulation and heat resistance.
The dimensions are 12.7 mm in length, 7.72 mm in width, and 15.24 mm in depth.
This unit weighs 0.72 grams, which helps to reduce strain on connected equipment.
It operates effectively within a temperature range of -55°C to +105°C, suitable for harsh environments.
Yes, it is compatible with the Molex C-Grid III connector system, allowing for reliable assembly.
This model uses a cable mount type, designed for easy installation.
Yes, it includes a locking system that ensures secure cable insertion and prevents misconnection.
It is ideal for applications in sound systems, automotive, and office equipment.
It complies with DIN 41651 and HE13/14 standards, ensuring quality and reliability.
The design features polarised contacts that guarantee precise mating and prevent damage during assembly.
The orientation of this model is straight, facilitating straightforward cable connections.
