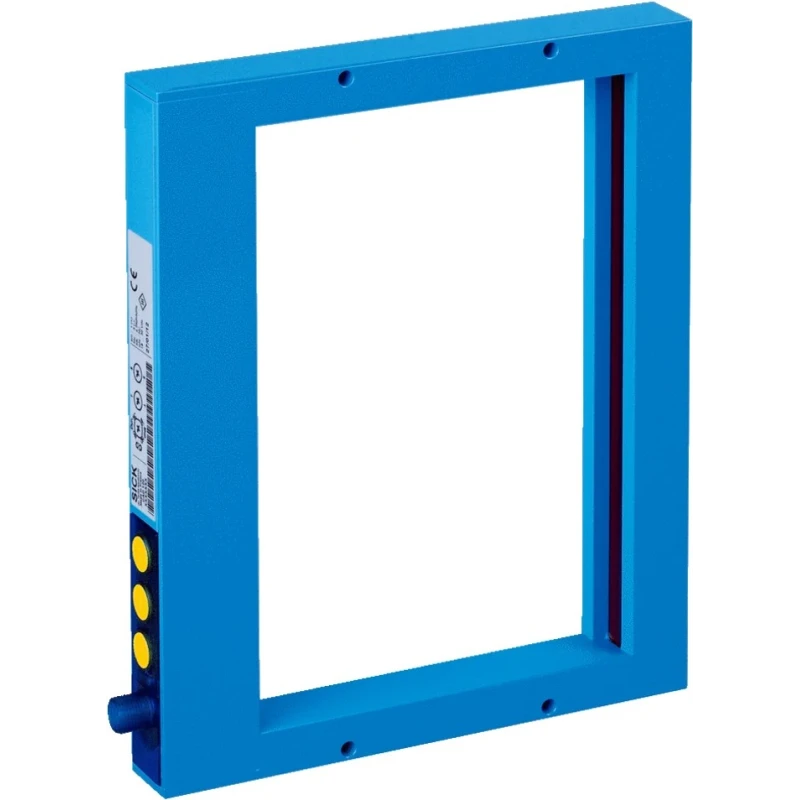

SICK Frame Light Grid Sensor FLG2-20012011 Infrared, Detection Range 200 mm IP65 Metal Housing FLG2-20012011

The SICK FLG2-20012011 Frame Light Grid Sensor offers an innovative solution by integrating the sender and receiver in a single metal housing, eliminating the need for separate alignment. Designed with an infrared light source, it supports a detection range of 200 mm and a precise beam separation of 2 mm, enabling the detection of very small parts over a broad monitored area of 200 mm by 250 mm or 200 mm by 120 mm depending on configuration.

It features an IP65-rated rugged metal enclosure, making it ideal for industrial environments with dust and moisture. Its adjustable pushbutton lock prevents unintended parameter changes, enhancing operational reliability. The device supports both dynamic operating mode, useful for reject and removal control in pressing and punching machines, and static mode, for applications such as monitoring thread breakage.

Adjustable sensitivity allows users to ignore irrelevant falling chips and focus detection on significant parts. Pulse stretching extends the duration of output signals for better interface with industrial control systems. The sensor can be switched between Q and Qnot outputs for application versatility.

The FLG2-20012011 complies with standards EN 60947-5-2, EN 60068-2-6, and EN 60068-2-27, underscoring its robustness and reliability in industrial automation applications. Its compact size, with dimensions approximately 230 mm length, 182 mm width, and 25 mm depth, supports easy installation in limited spaces.

Applications include automated monitoring and control in manufacturing, packaging, pressing and punching machines, and quality assurance processes in various sectors including industrial automation and laboratory instrumentation.

Combined sender and receiver design simplifies installation and alignment. Adjustable pushbutton lock protects against unauthorized parameter changes. Pulse stretching provides extended signal duration to control systems.

Large monitoring area effectively detects parts as small as 2 mm. Supports both dynamic and static operating modes for versatile use. Rugged IP65 metal housing ensures durability in industrial environments. Adjustable sensitivity and pulse lengthening enhance detection customization.

Complies with EN 60947-5-2, EN 60068-2-6, and EN 60068-2-27 standards. Explore EnvMart for a wide range of industrial Sensors and automation equipment suitable for high-precision and demanding applications.
