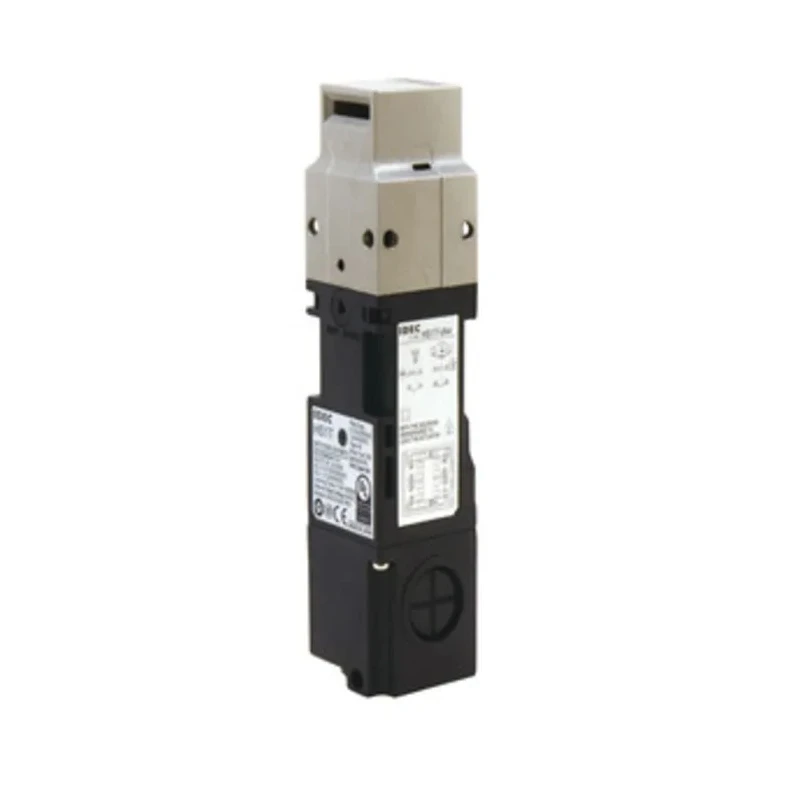

Idec Safety Rated Interlock Switch with Actuator, Plastic Housing, Type 2, 250V AC, 1.5A, IP67, Model HS1T

Idec HS1T Safety Rated Interlock Switch HS1T-VC44ZSM-G with plastic housing and included actuator delivers reliable safety functions for industrial environments. This device is rated for 250V AC voltage and 1.5A contact current, making it suitable for controlling safety interlocks on large doors and heavy equipment requiring strong locking force.

The robust IP67 rating protects against dust ingress and water submersion, making it ideal for harsh industrial and manufacturing applications. Operating temperature range from -25°C to 55°C enables use in various climate conditions. The switch features 2 normally closed safety contacts and spring clamp terminals designed to prevent loosening caused by vibration, enhancing operational stability.

Its unique head rotating structure allows the actuator entry direction to be changed easily without removing the head, minimizing downtime and preventing invalid operation. Mechanical durability up to 2,000,000 operations ensures longevity in demanding environments.

The compact form factor (88mm length, 63mm width, 129mm depth) makes integration easy even in restricted spaces. Compliance with CSA, UL, and EN standards guarantees high safety and quality. The solenoid lock and spring lock versions provide flexible safety locking options.

This safety interlock switch is well suited for industrial automation, electrical panels, HVAC systems, manufacturing plants, and other hazardous area prevention applications where safety interlocks are critical.

The switch features a plastic housing with Type 2 lock type. It includes an actuator and 2 normally closed safety contacts for reliable safety operation. Rated for 250V AC and 1.5A switch contact current. The device is IP67 rated for dust and water resistance.

Operating temperature ranges from -25°C to 55°C. Mechanical durability up to 2,000,000 operations ensures long service life. Equipped with spring clamp terminals to prevent wire loosening due to vibration. The head rotating structure allows easy adjustment of actuator entry direction.

Compact size with dimensions 88mm (L) x 63mm (W) x 129mm (D). Complies with CSA, UL, and EN safety standards. Explore further products in the Safety Interlock Switch category for comprehensive industrial safety solutions.
