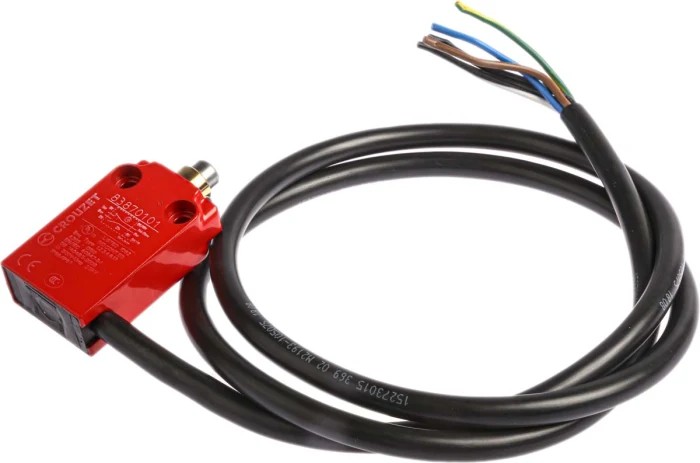

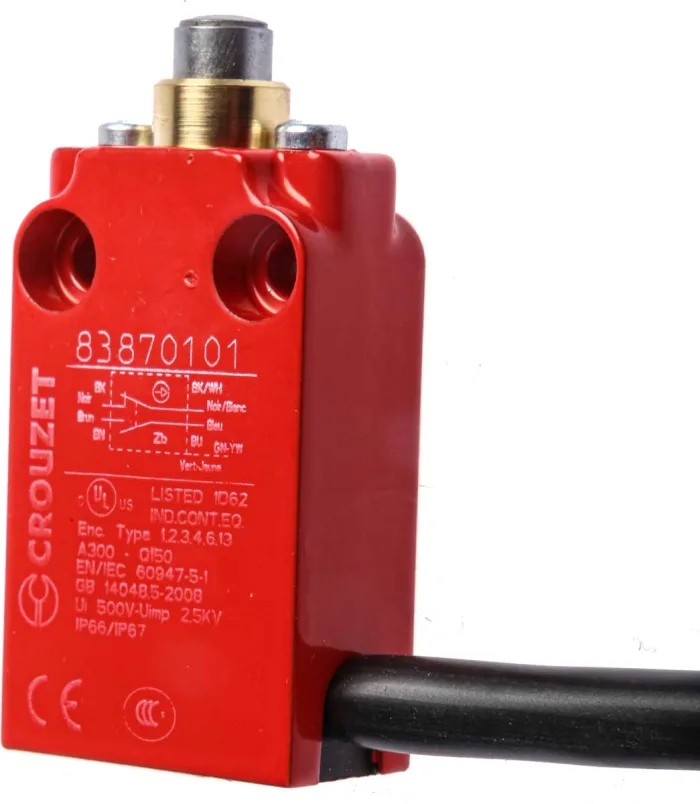

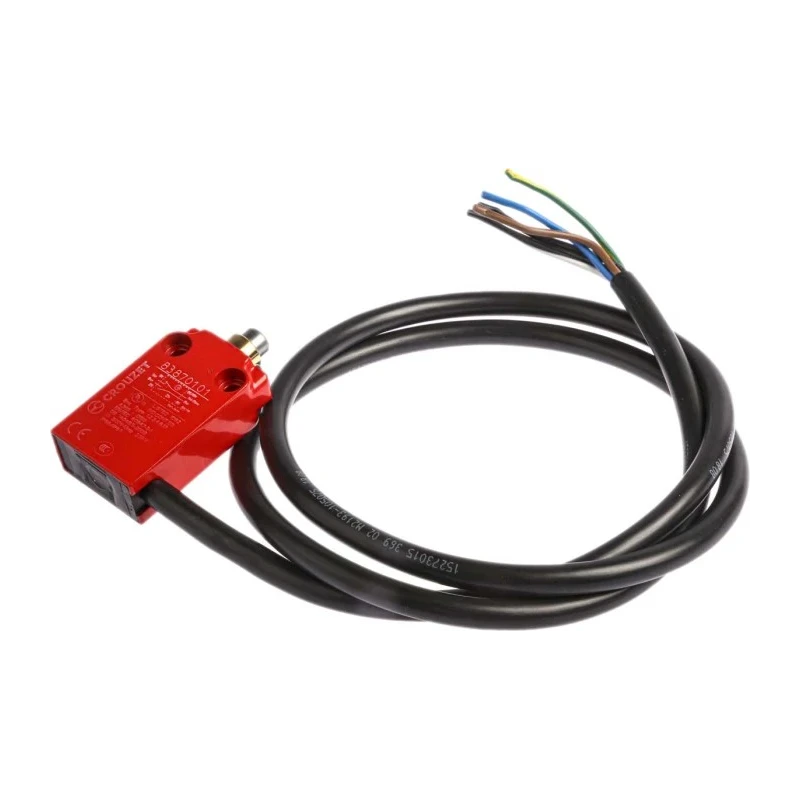

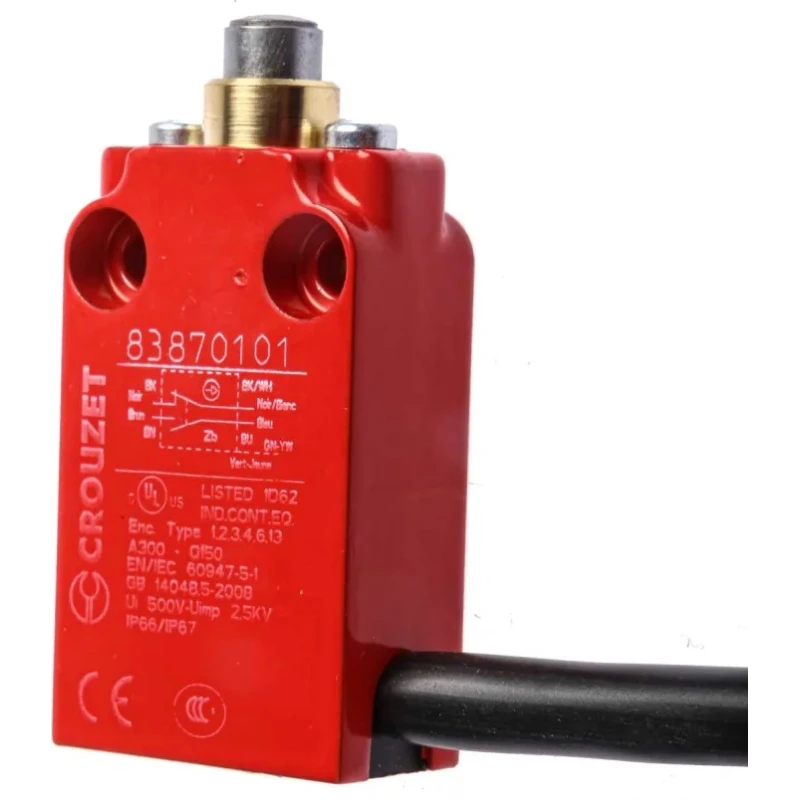

Crouzet 83870 Series Plunger Limit Switch, 1 NO/1 NC, IP67, IP66, Metal Housing, 240V AC, 6A 83870101
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crouzet |
| Length | 69.9mm |
| Model | 83870101 |
| Depth | 16mm |
| IP Rating | IP67, IP66 |
| Width | 30mm |
| Housing Material | Metal |
| Series | 83870 |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Top |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Plunger |
| Contact Type | Double Break |
| Minimum Operating Temperature | -25°C |
| Switching Current | 6A |
| Terminal type | Cable |
| Standards/Approvals | UL |
| Operating Force | 10N |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 240V ac |
Key Features
- The metal housing ensures robust protection and durability.
- Equipped with double break, two-way contact elements offering reliable switching.
- Rated for IP66 and IP67 ingress protection for use in harsh environments.
- Operating temperature range from -25°C to 70°C for varied industrial applications.
- Features impulse voltage rating of 2500V and insulation voltage of 500V for electrical safety.
- Compact dimensions with length 69.9mm, width 30mm, and depth 16mm facilitate easy mounting.
- Includes fitted 5-core 0.75 mm² cable for convenient wiring installation.
- Mechanical life expectancy up to 10 million operations ensuring long-term reliability.
Product Description
Crouzet 83870101 plunger limit switch from the 83870 series features a rugged metal housing and is designed for industrial and automation applications. This limit switch includes 1 normally open (NO) and 1 normally closed (NC) contact configuration, providing versatile switching capabilities. It is IP66 and IP67 rated, ensuring excellent protection against dust and water ingress for outdoor or harsh environment usage.
The switch supports a switching current of 6A at 240V AC and can operate safely within a temperature range from -25°C to 70°C. The device is equipped with double break, two-way contact elements that include positive opening contacts electrically isolated for enhanced safety. Impulse voltage rating is 2500V and insulation voltage is 500V, meeting rigorous electrical safety standards.
The compact size with dimensions length 69.9 mm, width 30 mm, and depth 16 mm allows for straightforward installation in constrained spaces. The included 1-meter long 5-core 0.75 mm² cable simplifies wiring and connection to control circuits. The limit switch is engineered for top mounting orientation and mechanical durability rated for up to 10 million operations under normal conditions with an operating force of 10N.
The 83870 series limit switch is UL approved, complying with UL508 and UL50 standards, making it suitable for diverse industrial automation, manufacturing, electrical control systems, and HVAC applications where precise position detection and safety interlocking are critical.
The metal housing ensures robust protection and durability. Equipped with double break, two-way contact elements offering reliable switching. Rated for IP66 and IP67 ingress protection for use in harsh environments. Operating temperature range from -25°C to 70°C for varied industrial applications.
Features impulse voltage rating of 2500V and insulation voltage of 500V for electrical safety. Compact dimensions with length 69.9mm, width 30mm, and depth 16mm facilitate easy mounting. Includes fitted 5-core 0.75 mm² cable for convenient wiring installation.
Mechanical life expectancy up to 10 million operations ensuring long-term reliability. Operating force of 10N with mounting orientation from the top. Complies with UL standards for quality assurance.
This Crouzet Limit Switch series is ideal for applications in electrical panels, automated machinery, conveyor systems, and safety interlock circuits within commercial and industrial sectors. Browse the Electronics & Electricals category on EnvMart for more automation switches and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact, providing versatile switching capabilities.
The dimensions of the Crouzet 83870101 are 69.9 mm in length, 30 mm in width, and 16 mm in depth, allowing for easy mounting in constrained spaces.
This limit switch is rated for IP66 and IP67, ensuring excellent protection against dust and water ingress for use in harsh environments.
The operating temperature range for the Crouzet 83870101 is from -25°C to 70°C, making it suitable for varied industrial applications.
The mechanical life expectancy of the Crouzet 83870101 is up to 10 million operations under normal conditions, ensuring long-term reliability.
This model supports a switching current of 6A at 240V AC, making it suitable for various electrical control applications.
This limit switch uses a plunger type actuator, which is suitable for various applications requiring precise position detection.
The impulse voltage rating for the Crouzet 83870101 is 2500V, ensuring electrical safety during operation.

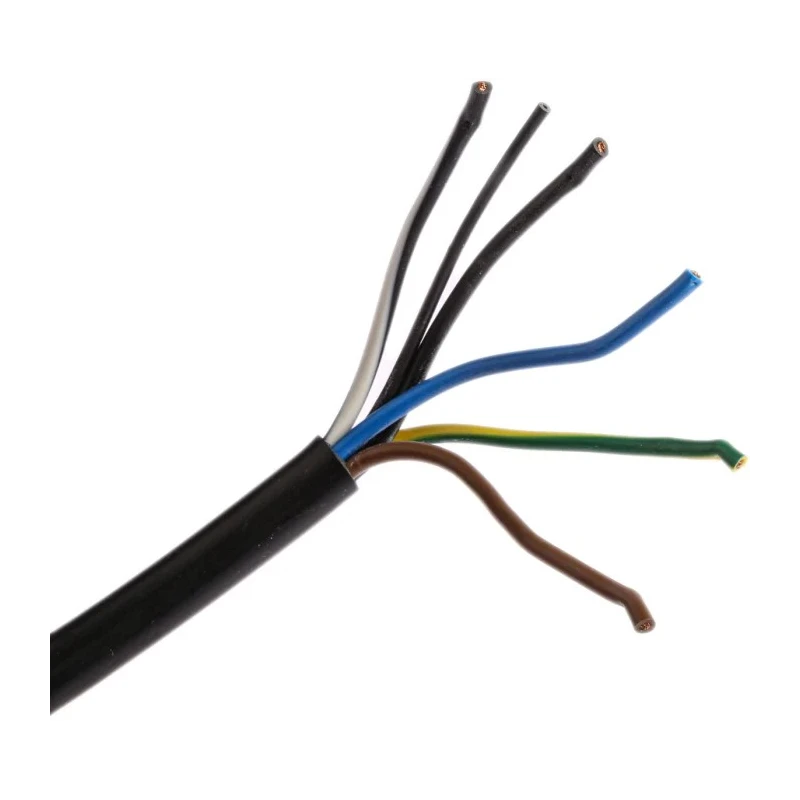

It includes a fitted 1-meter long 5-core 0.75 mm² cable for convenient wiring installation to control circuits.
This limit switch is UL approved and complies with UL508 and UL50 standards, ensuring it meets rigorous safety and quality requirements.
The Crouzet 83870101 is designed for top mounting orientation, facilitating installation in various setups.
It utilizes double break contact elements, which provide reliable switching and enhance safety through positive opening contacts.
