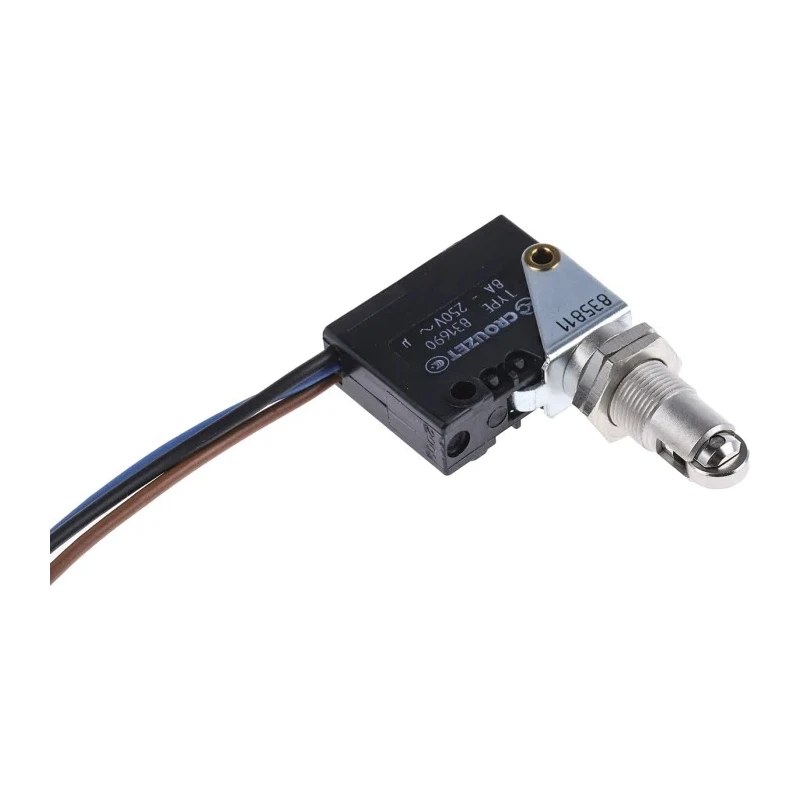

Crouzet 83581 Series Plunger Limit Switch with 1 NO/1 NC Contacts, IP67, 250V AC, 8A Rating
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crouzet |
| Length | 53.9mm |
| Model | IP67 |
| Depth | 25mm |
| IP Rating | IP67 |
| Width | 31mm |
| Series | 83581 |
| Maximum Operating Temperature | 80°C |
| Mounting Orientation | Panel |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Plunger |
| Contact Type | Single Break |
| Minimum Operating Temperature | -20°C |
| Switching Current | 8A |
| Terminal type | Cable |
| Standards/Approvals | UL |
| Operating Force | 5N |
| Mechanical Life | 100000Cycles |
| Switching AC Voltage | 250V ac |
| Crouzet Limit SwitchBrand | Crouzet |
Key Features
- The switch features a plunger actuator type for precise operation.
- It offers a robust IP67 degree of protection against dust and water ingress.
- Electrical rating includes 8A switching current at 250V AC.
- Designed for panel mounting with a compact size of 53.9mm length and 31mm width.
- Mechanical life of 100,000 cycles ensures durability in industrial applications.
- Operating temperature range is from -20°C to 80°C for versatile environments.
- Single break contact type with 1 normally open and 1 normally closed contact configuration.
- Comes complete with 0.5 meters of three-core cable (black, brown, blue) for easy installation.
Product Description
Crouzet 83581101 plunger limit switch is a miniature protected limit switch suitable for various industrial and automation applications. Featuring a plunger-type actuator, it is designed for panel mounting and offers a highly reliable 1 NO and 1 NC contact configuration with single break contacts.
With an IP67 rating, it provides excellent protection against dust and water, making it ideal for harsh environments. The switch is rated for 8A switching current at 250V AC, supporting robust electrical performance for control and safety systems.
The unit has compact dimensions, measuring 53.9mm in length, 31mm in width, and 25mm in depth, facilitating integration into tight spaces.

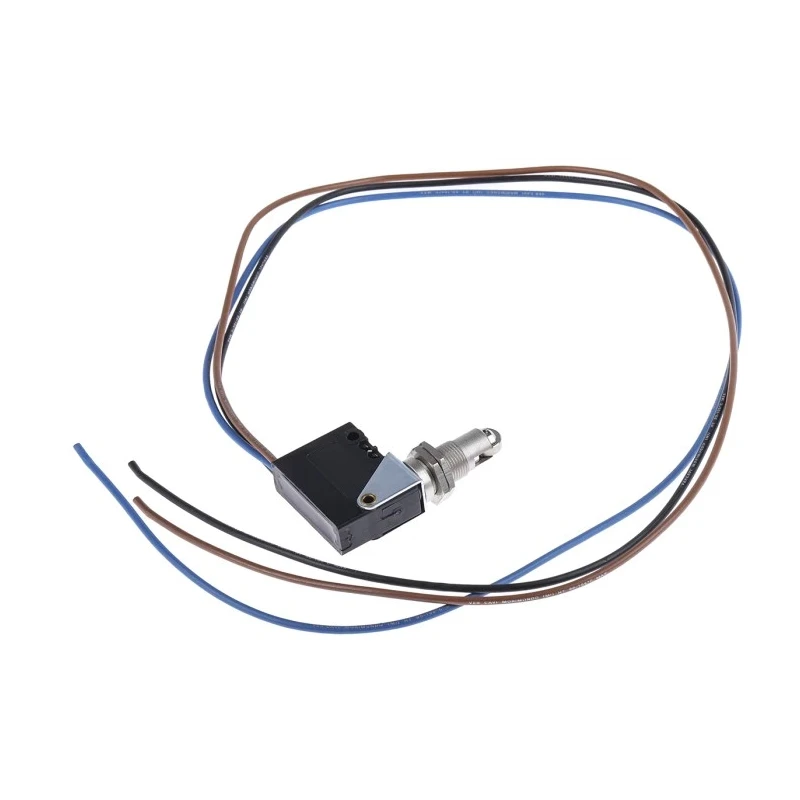

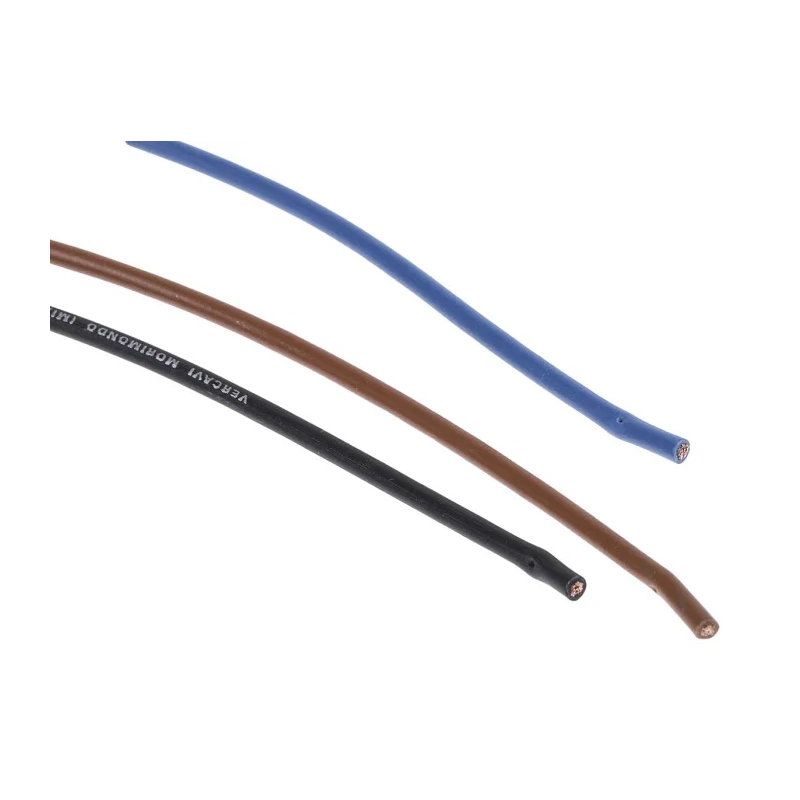

The switch comes equipped with 0.5 meters of 3-core cable (black, brown, blue) for convenient wiring. Its mechanical durability is assured with a rated mechanical life of 100,000 cycles, suitable for continuous industrial use.
Operating temperature ranges from -20°C to 80°C to adapt to varying indoor and outdoor conditions. The switching force requires only 5N, with differential travel and total travel designed for precise operation.
This Crouzet limit switch complies with UL standards, ensuring high quality and safety compliance. It is widely used in industrial automation, manufacturing equipment, HVAC control systems, and other applications requiring precise position detection and control.
The switch features a plunger actuator for precise mechanical actuation. Rated IP67 for protection from dust and immersion in water. Supports 8A at 250V AC switching current for electrical robustness. Single break contacts with 1 normally open and 1 normally closed configuration.
Compact dimensions of 53.9mm length x 31mm width x 25mm depth. Mechanical life up to 100,000 cycles for extended durability. Operating temperature range from -20°C to 80°C for wide environmental tolerance. Comes with a 0.5 meter 3-core cable (black, brown, blue) for straightforward installation.
Choose this Crouzet 83581 series plunger limit switch for reliable industrial switching, offering precision and rugged design for critical automation needs. Browse EnvMart for more Limit Switches and industrial automation products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for 8A switching current at 250V AC, providing robust electrical performance for control and safety systems.
The switch has an IP67 rating, offering excellent protection against dust and water ingress, making it suitable for harsh environments.
This model measures 53.9mm in length, 31mm in width, and 25mm in depth, allowing for easy integration into tight spaces.
It features a single break contact configuration with 1 normally open (NO) and 1 normally closed (NC) contact.
The mechanical life of the switch is rated for 100,000 cycles, ensuring durability in industrial applications.
The operating temperature range is from -20°C to 80°C, making it suitable for various environmental conditions.
It is designed for panel mounting, facilitating easy installation in various setups.
It uses a plunger actuator type for precise mechanical actuation.
The switching force required is only 5N, allowing for precise operation with minimal effort.
It comes complete with a 0.5 meter three-core cable (black, brown, blue) for straightforward installation.
Yes, it complies with UL standards, ensuring quality and safety compliance for industrial use.
The limit switch is manufactured in India.
