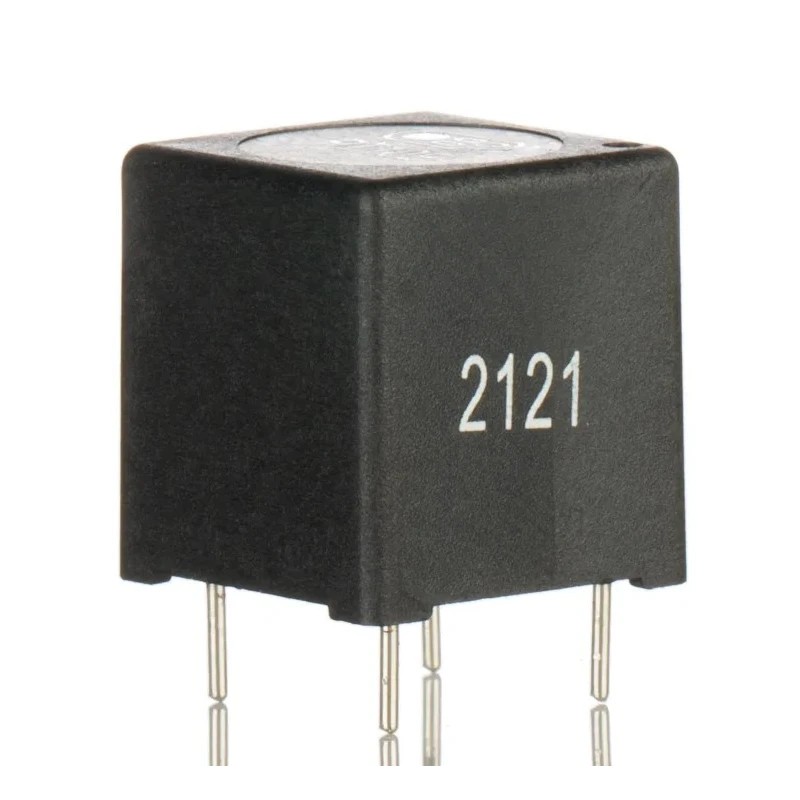

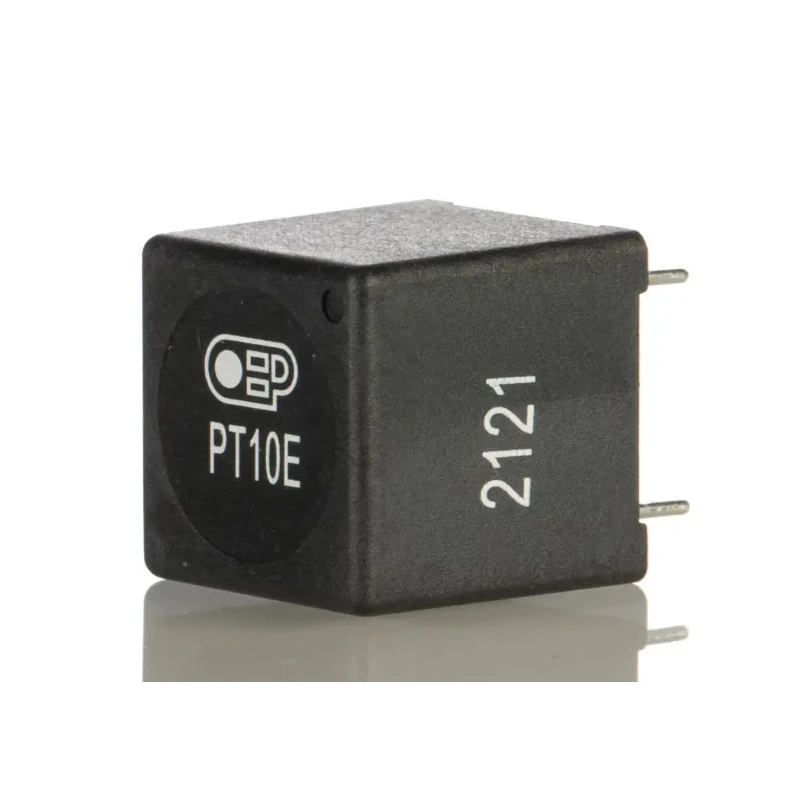

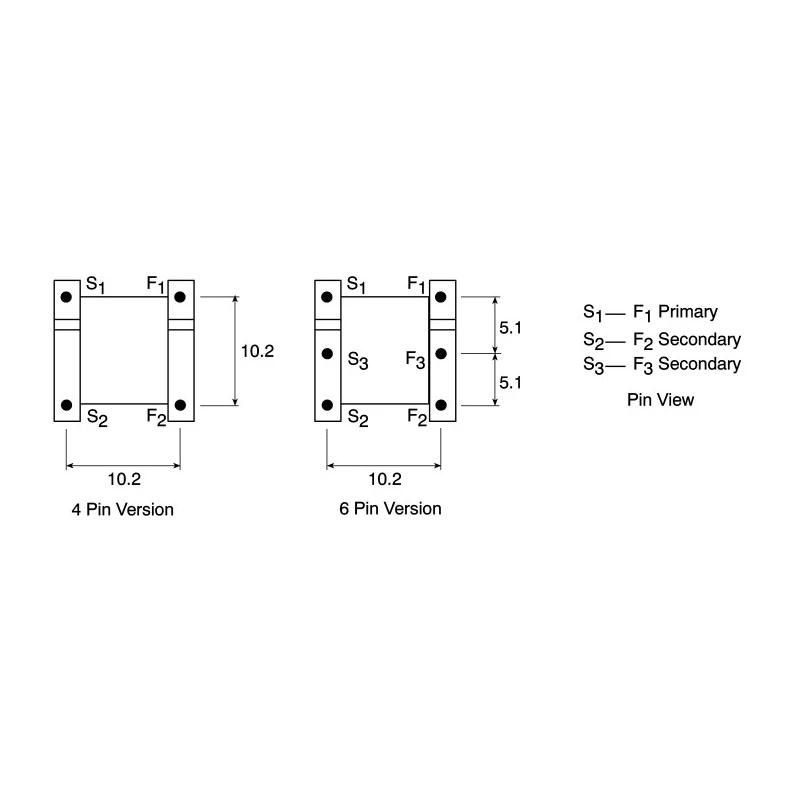

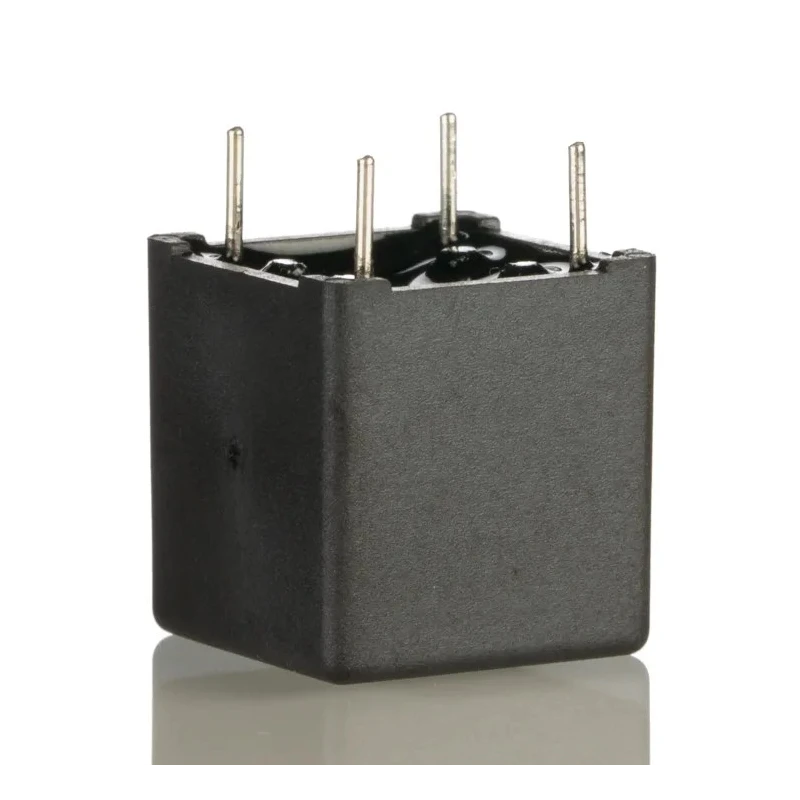

OEP Through Hole Pulse Transformer 2:1 Turns Ratio, 12 mH Primary Inductance, 5.1Ω Primary Resistance PT10E

OEP PT10E Through Hole Pulse Transformer is a high-performance electronic component intended for pulse applications where electrical isolation is critical. Featuring a 2:1 turns ratio, it provides a primary inductance of 12 mH and a primary DC resistance of 5.1Ω, ensuring consistent operation across a wide range of frequencies from 3 kHz to 1 MHz. This transformer is mounted through hole on printed circuit boards, making it suitable for integration in various electronic devices.

The design includes a leakage inductance of 115 μH, which contributes to its effectiveness in pulse and signal isolation scenarios. Its compact form factor measures 15 mm in length, 15 mm in width, and 16 mm in depth, allowing it to fit efficiently in dense PCB layouts.

OEP pulse transformers are commonly used in control systems involving thyristors and triacs, providing essential isolation between the firing circuit and the load. The transformer’s encapsulated build ensures durability and stable electrical characteristics, making it a reliable choice for industrial, laboratory, and manufacturing electronic circuits.

This product is manufactured in China and supplied in new condition, meeting the requirements for modern electronic manufacturing applications where precise isolation and pulse performance are necessary.

Designed for through hole mounting on PCBs. Operates within a frequency range of 3 kHz to 1 MHz. Offers a leakage inductance of 115 μH for efficient pulse transmission. Compact dimensions: 15 mm length, 15 mm width, and 16 mm depth.

Ideal for thyristor and triac control systems requiring electrical isolation. Constructed for robust electrical performance and reliability. Manufactured in China with all-new condition assurance. Explore more Pulse Transformers and related electronic components on EnvMart for your industrial and laboratory applications.
